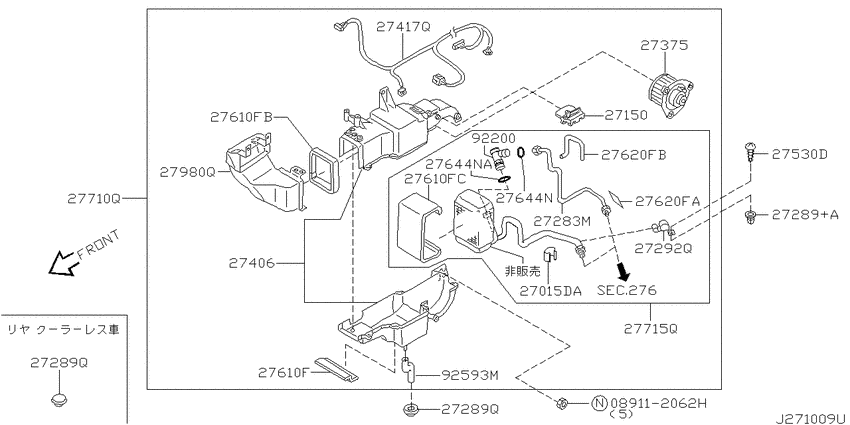

Cooling unit (2001-05-01 ~ 2002-09-01; リヤ クーリング ユニット; W) Diagram Nissan PRAIRIE/LIBERTY
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089112062H
|
089112062H
089112062H NUT |
089112062H |
US $1.99 |
||
|
27015DA
|
27015DA
9229576B00 Clip0105--01 ~ 0209--01; W |
9229576B00 |
US $2.66 |
||
|
27150
|
27150
27150-WF700 Resistance Assy-Heater0206--01 ~ 0209--01; W; [B517] |
27150-WF700 |
US $52.50 |
||
|
27150
|
27150
27150-WJ610 Resistance Assy-Heater0105--01 ~ 0206--01; W |
27150-WJ610 |
from US $33.04 |
||
|
27150
|
27150
27150WJ611 Resistance Assy-Heater0209--01 ~ ; *W.2WD.G |
27150WJ611 |
US $36.54 |
||
|
27283M
|
27283M
27283-WF700 Pipe Assy-Cooler, In0105--01 ~ 0209--01; W |
27283-WF700 |
US $40.88 |
||
|
27289+A
|
27289+A
01281-00601
GROMMET-SCREW
0105--01 ~ 0209--01; W |
01281-00601 |
— | ||
| replacement | |||||
|
27289+A
|
27289+A
0128101231 GROMMET-SCREW0105--01 ~ 0209--01; W |
0128101231 |
from US $1.91 |
||
|
27289Q
|
27289Q
92560-VB000 Grommet0105--01 ~ 0209--01; *W.2WD.G |
92560-VB000 |
US $7 |
||
|
27289Q
|
27289Q
92560-WF300 Grommet0105--01 ~ 0209--01; W |
92560-WF300 |
US $7 |
||
|
27289Q
|
27289Q
92560-VB000 Grommet0105--01 ~ 0209--01; *W.2WD.G |
92560-VB000 |
US $7 |
||
|
27289Q
|
27289Q
92560-WF300 Grommet0105--01 ~ 0209--01; W |
92560-WF300 |
US $7 |
||
|
27292Q
|
27292Q
92457-WF110 Bracket0105--01 ~ 0209--01; W |
92457-WF110 |
US $5.74 |
||
|
27375
|
27375
27375-WF100 Blower Assy-Rear0105--01 ~ 0209--01; W |
27375-WF100 |
US $261.80 |
||
|
27406
|
27406
27406WF100 Box-Cool0105--01 ~ 0209--01; W |
27406WF100 |
US $145.60 |
||
|
27417Q
|
27417Q
27417-WF110 Harness Assy0105--01 ~ 0209--01; W |
27417-WF110 |
US $68.88 |
||
|
27530D
|
27530D
01466-00022 BOLT0105--01 ~ 0209--01; W |
01466-00022 |
from US $0.70 |
||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
27610F
|
27610F
27172-WF100 Seal0105--01 ~ 0202--01; W |
27172-WF100 |
US $2.10 |
||
|
27610F
|
27610F
27172-WF700 Seal0202--01 ~ 0209--01; W |
27172-WF700 |
US $4.48 |
||
|
27610F
|
27610F
92290-WF100 Seal0105--01 ~ 0209--01; W |
92290-WF100 |
US $1.54 |
||
|
27610F
|
27610F
27287-WF100 Seal0105--01 ~ 0209--01; W |
27287-WF100 |
US $6.86 |
||
|
27610F
|
27610F
927982J000 Seal0105--01 ~ 0209--01; W |
927982J000 |
US $2.38 |
||
|
27610F
|
27610F
92798-2J001 Seal0105--01 ~ 0209--01; W |
92798-2J001 |
US $2.38 |
||
|
27610FB
|
27610FB
92290-WF100 Seal0105--01 ~ 0209--01; W |
92290-WF100 |
US $1.54 |
||
|
27610FC
|
27610FC
27287-WF100 Seal0105--01 ~ 0209--01; W |
27287-WF100 |
US $6.86 |
||
|
27620FA
|
27620FA
27489-WF100 Insulator0105--01 ~ 0109--01; W |
27489-WF100 |
US $3.64 |
||
|
27620FA
|
27620FA
27489-WF300 Insulator0109--01 ~ 0209--01; W |
27489-WF300 |
US $22.54 |
||
|
27620FB
|
27620FB
27489-WF110 Insulator0105--01 ~ 0209--01; W |
27489-WF110 |
US $1.40 |
||
|
27644N
|
27644N
92470-N8200
O Ring
0105--01 ~ 0209--01; W; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92470N8210 O Ring0105--01 ~ 0209--01; W; [B421] |
92470N8210 |
from US $0.94 |
||
|
27644N
|
27644N
92475-W1000
O Ring
0105--01 ~ 0209--01; W; [B421] |
92475-W1000 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92475HC303 O Ring0105--01 ~ 0209--01; W; [B421] |
92475HC303 |
US $1.61 |
||
|
27644NA
|
27644NA
92475-W1000
O Ring
0105--01 ~ 0209--01; W; [B421] |
92475-W1000 |
— | ||
| replacement | |||||
|
27644NA
|
27644NA
92475HC303 O Ring0105--01 ~ 0209--01; W; [B421] |
92475HC303 |
US $1.61 |
||
|
27710Q
|
27710Q
27405-WF700 Cooling Unit0105--01 ~ 0209--01; W |
27405-WF700 |
US $1,138.20 |
||
|
27715Q
|
27715Q
27410-WF700 Evaporator0105--01 ~ 0209--01; W |
27410-WF700 |
US $694.40 |
||
|
27980Q
|
27980Q
27980-WF100 Duct-Rear Ventilation, Upper0105--01 ~ 0209--01; W |
27980-WF100 |
US $56.56 |
||
|
92200
|
92200
92200-WF700 Valve Assy-Expansion0105--01 ~ 0209--01; W |
92200-WF700 |
US $114.38 |
||
|
92593M
|
92593M
92593-WF100 Tube-Drain0105--01 ~ 0209--01; W |
92593-WF100 |
US $9.66 |
||
