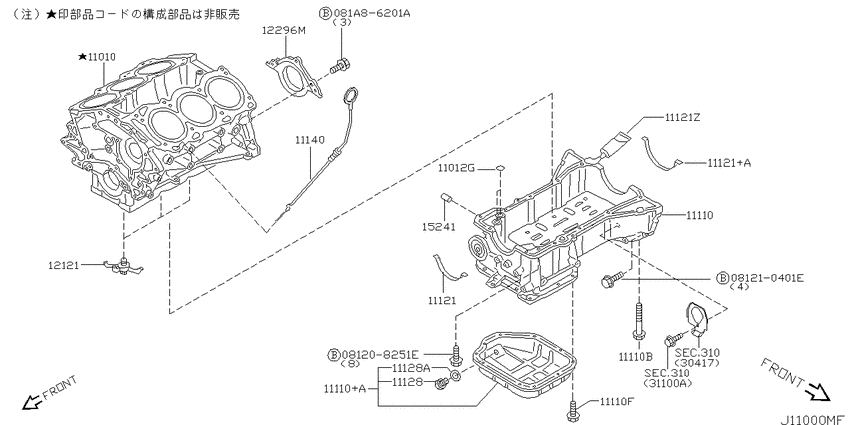

Cylinder block & oil pan (2003-06-01 ~ 2006-06-01; アッセンブリー; VQ35DE) Diagram Nissan PRESAGE
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 4WD
- transmission
- CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
from US $0.63 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.11 |
||
|
081A86201A
|
081A86201A
081A86201A BOLT |
081A86201A |
US $1.48 |
||
|
11010
|
11010
11000-8J100 Block Assy-Cylinder0306--01 ~ 0606--01; VQ35DE |
11000-8J100 |
US $1,792 |
||
|
11010
|
11010
30412H1001 Dowel-Block0306--01 ~ 0606--01; VQ35DE |
30412H1001 |
from US $0.48 |
||
|
11010
|
11010
11022-31U02 Dowel-Block To Oil Pump0306--01 ~ 0606--01; VQ35DE |
11022-31U02 |
US $1.73 |
||
|
11010
|
11010
1102277A00 Dowel-Block To Oil Pump0306--01 ~ 0606--01; VQ35DE |
1102277A00 |
from US $0.52 |
||
|
11010
|
11010
11022-42L02 Dowel-Block To Oil Pump0306--01 ~ 0606--01; VQ35DE |
11022-42L02 |
US $0.82 |
||
|
11010
|
11010
1102231U01 Dowel-Block To Oil Pump0306--01 ~ 0606--01; VQ35DE |
1102231U01 |
from US $0.59 |
||
|
11010
|
11010
11022-40F00 Dowel-Block To Oil Pump0306--01 ~ 0606--01; VQ35DE |
11022-40F00 |
from US $1.26 |
||
|
11012G
|
11012G
15066-31U00 Seal-O Ring0306--01 ~ 0606--01; VQ35DE |
15066-31U00 |
US $5.27 |
||
|
11110
|
11110
11110-CA001 Pan Assy-Oil0306--01 ~ 0606--01; VQ35DE |
11110-CA001 |
US $733.49 |
||
| replacement | |||||
|
11110
|
11110
11110-CA00A Pan Assy-Oil0306--01 ~ 0606--01; VQ35DE |
11110-CA00A |
US $611.71 |
||
|
11110
|
11110
11110-2Y000 Pan Assy-Oil0306--01 ~ 0606--01; VQ35DE |
11110-2Y000 |
US $175.68 |
||
|
11110
|
11110
01121-03851 BOLT0306--01 ~ 0606--01; VQ35DE |
01121-03851 |
US $9.50 |
||
|
11110
|
11110
11035-AG900 Bolt0306--01 ~ 0606--01; VQ35DE |
11035-AG900 |
US $4.18 |
||
|
11110+A
|
11110+A
11110-2Y000 Pan Assy-Oil0306--01 ~ 0606--01; VQ35DE |
11110-2Y000 |
US $175.68 |
||
|
11110B
|
11110B
01121-03851 BOLT0306--01 ~ 0606--01; VQ35DE |
01121-03851 |
US $9.50 |
||
|
11110F
|
11110F
11035-AG900 Bolt0306--01 ~ 0606--01; VQ35DE |
11035-AG900 |
US $4.18 |
||
|
11121
|
11121
1112131U00 Gasket-Oil Pan0306--01 ~ 0606--01; VQ35DE |
1112131U00 |
from US $7.44 |
||
|
11121
|
11121
1112131U10 Gasket-Oil Pan0306--01 ~ 0606--01; VQ35DE |
1112131U10 |
from US $5.75 |
||
|
11121
|
11121
KA76015000
Gasket-Liquid
0306--01 ~ 0410--01; VQ35DE; [K504] |
KA76015000 |
— | ||
|
11121+A
|
11121+A
1112131U10 Gasket-Oil Pan0306--01 ~ 0606--01; VQ35DE |
1112131U10 |
from US $5.75 |
||
|
11121Z
|
11121Z
KA76015000
Gasket-Liquid
0306--01 ~ 0410--01; VQ35DE; [K504] |
KA76015000 |
— | ||
|
11128
|
11128
11128-01M00 Plug-Drain0306--01 ~ 0606--01; VQ35DE |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain0306--01 ~ 0606--01; VQ35DE |
1112801M0B |
from US $2.28 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug0306--01 ~ 0606--01; VQ35DE |
1102601M02 |
from US $0.81 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug0306--01 ~ 0606--01; VQ35DE |
1102601M02 |
from US $0.81 |
||
|
11140
|
11140
11140-8J100 Gauge-Oil Level0306--01 ~ 0606--01; VQ35DE |
11140-8J100 |
US $12.67 |
||
|
12121
|
12121
11560-4W001 Jet Assy-Oil0306--01 ~ 0410--01; VQ35DE |
11560-4W001 |
US $36.14 |
||
|
12121
|
12121
11560-EA200
Jet Assy-Oil
0410--01 ~ 0606--01; VQ35DE |
11560-EA200 |
— | ||
| replacement | |||||
|
12121
|
12121
11560-EA20C Jet Assy-Oil0410--01 ~ 0606--01; VQ35DE |
11560-EA20C |
from US $35.21 |
||
|
12296M
|
12296M
12296-31U11
Retainer Assy-Oil Seal, Rear
0306--01 ~ 0606--01; VQ35DE; NDK |
12296-31U11 |
— | ||
| replacement | |||||
|
12296M
|
12296M
1229631U20 Retainer Assy-Oil Seal, Rear0306--01 ~ 0606--01; VQ35DE; NDK |
1229631U20 |
from US $37.98 |
||
|
12296M
|
12296M
1229631U20 Retainer Assy-Oil Seal, Rear0306--01 ~ 0606--01; VQ35DE; NOK, |
1229631U20 |
from US $37.98 |
||
|
15241
|
15241
15241-43U00 Valve-Oil Pressure Regulator0306--01 ~ 0606--01; VQ35DE |
15241-43U00 |
US $8.06 |
||
|
