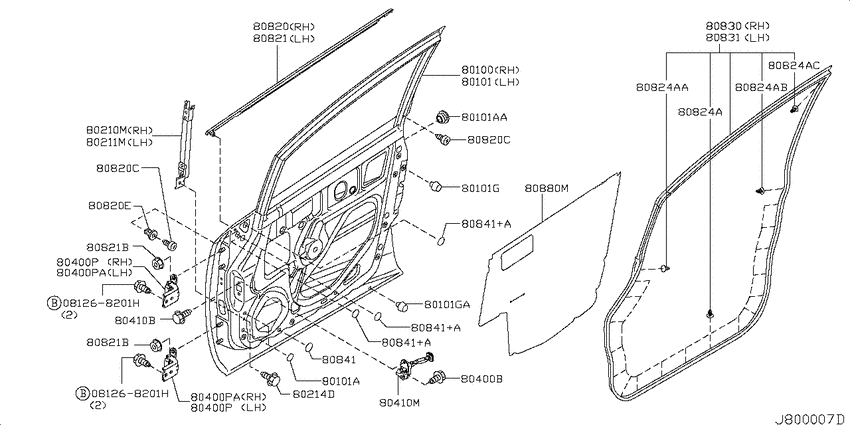

Front door panel & fitting (2003-06-01 ~ 2006-06-01; W) Diagram Nissan PRESAGE
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 4WD
- transmission
- CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268201H
|
081268201H
081268201H
Bolt-hexagon
|
081268201H |
— | ||
|
081268201H
|
081268201H
081268201H
Bolt-hexagon
|
081268201H |
— | ||
|
80100
|
80100
H0100CN0MM Door-Front, Rh0306--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V |
H0100CN0MM |
US $876.50 |
||
|
80101
|
80101
H0101CN0MM Door-Front, Lh0306--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V |
H0101CN0MM |
US $1,250.94 |
||
|
80101
|
80101
64892W5000 Unit Assy-Divider Tachometer0306--01 ~ 0606--01; W |
64892W5000 |
US $0.97 |
||
|
80101
|
80101
74816AL500 Plug0306--01 ~ 0606--01; W |
74816AL500 |
US $1.93 |
||
|
80101
|
80101
80872W1011 Bumper Rubber-Door0306--01 ~ 0606--01; W |
80872W1011 |
from US $3.32 |
||
|
80101
|
80101
8089601E00 BUMPER RUBBER-DOOR0306--01 ~ 0606--01; W |
8089601E00 |
US $4.32 |
||
|
80101A
|
80101A
64892W5000 Unit Assy-Divider Tachometer0306--01 ~ 0606--01; W |
64892W5000 |
US $0.97 |
||
|
80101A
|
80101A
74816AL500 Plug0306--01 ~ 0606--01; W |
74816AL500 |
US $1.93 |
||
|
80101AA
|
80101AA
74816AL500 Plug0306--01 ~ 0606--01; W |
74816AL500 |
US $1.93 |
||
|
80101G
|
80101G
80872W1011 Bumper Rubber-Door0306--01 ~ 0606--01; W |
80872W1011 |
from US $3.32 |
||
|
80101G
|
80101G
8089601E00 BUMPER RUBBER-DOOR0306--01 ~ 0606--01; W |
8089601E00 |
US $4.32 |
||
|
80101GA
|
80101GA
8089601E00 BUMPER RUBBER-DOOR0306--01 ~ 0606--01; W |
8089601E00 |
US $4.32 |
||
|
80210M
|
80210M
80214-CN000 Sash Assy-Front Door, Lower Rh0306--01 ~ 0410--01; W |
80214-CN000 |
US $43.34 |
||
|
80210M
|
80210M
80214-CN010 Sash Assy-Front Door, Lower Rh0410--01 ~ 0606--01; W |
80214-CN010 |
US $43.34 |
||
|
80211M
|
80211M
80215CN000 Sash Assy-Front Door, Lower Lh0306--01 ~ 0410--01; W |
80215CN000 |
US $43.34 |
||
|
80211M
|
80211M
80215CN010 Sash Assy-Front Door, Lower Lh0410--01 ~ 0606--01; W |
80215CN010 |
US $43.34 |
||
|
80214D
|
80214D
01436-01871 SCREW0306--01 ~ 0606--01; W |
01436-01871 |
US $1.73 |
||
|
80400B
|
80400B
80498-40U00
Bolt
0306--01 ~ 0606--01; W |
80498-40U00 |
— | ||
| replacement | |||||
|
80400B
|
80400B
80498-40U0B Bolt0306--01 ~ 0606--01; W |
80498-40U0B |
from US $0.87 |
||
|
80400P
|
80400P
82420-4P000 Hinge Assy-Rear Door0306--01 ~ 0606--01; W |
82420-4P000 |
US $29.52 |
||
|
80400P
|
80400P
82421-4P000 Hinge Assy-Rear Door0306--01 ~ 0606--01; W |
82421-4P000 |
US $29.52 |
||
|
80400P
|
80400P
82420-4P000 Hinge Assy-Rear Door0306--01 ~ 0606--01; W |
82420-4P000 |
US $29.52 |
||
|
80400P
|
80400P
82421-4P000 Hinge Assy-Rear Door0306--01 ~ 0606--01; W |
82421-4P000 |
US $29.52 |
||
|
80400PA
|
80400PA
82421-4P000 Hinge Assy-Rear Door0306--01 ~ 0606--01; W |
82421-4P000 |
US $29.52 |
||
|
80400PA
|
80400PA
82421-4P000 Hinge Assy-Rear Door0306--01 ~ 0606--01; W |
82421-4P000 |
US $29.52 |
||
|
80410B
|
80410B
01121-07261 BOLT0306--01 ~ 0606--01; W |
01121-07261 |
from US $0.72 |
||
|
80410M
|
80410M
80430-CN000 Link-Door Stopper0306--01 ~ 0309--01; W |
80430-CN000 |
US $29.81 |
||
|
80410M
|
80410M
80430-CN010 Link-Door Stopper0309--01 ~ 0606--01; W |
80430-CN010 |
US $29.81 |
||
|
80820
|
80820
80820CN000 Moulding Assy-Front Door Outside, Rh0306--01 ~ 0606--01; W |
80820CN000 |
US $73.73 |
||
|
80820
|
80820
80899CN000 Screw0306--01 ~ 0606--01; W |
80899CN000 |
US $0.86 |
||
|
80820
|
80820
96706B0700 Nut0306--01 ~ 0606--01; W |
96706B0700 |
US $1.93 |
||
|
80820C
|
80820C
80899CN000 Screw0306--01 ~ 0606--01; W |
80899CN000 |
US $0.86 |
||
|
80820C
|
80820C
80899CN000 Screw0306--01 ~ 0606--01; W |
80899CN000 |
US $0.86 |
||
|
80820E
|
80820E
96706B0700 Nut0306--01 ~ 0606--01; W |
96706B0700 |
US $1.93 |
||
|
80821
|
80821
80821CN000 Moulding Assy-Front Door Outside, Lh0306--01 ~ 0606--01; W |
80821CN000 |
US $73.73 |
||
|
80821
|
80821
80497-AX010 Nut0306--01 ~ 0606--01; W |
80497-AX010 |
US $1.73 |
||
|
80821B
|
80821B
80497-AX010 Nut0306--01 ~ 0606--01; W |
80497-AX010 |
US $1.73 |
||
|
80821B
|
80821B
80497-AX010 Nut0306--01 ~ 0606--01; W |
80497-AX010 |
US $1.73 |
||
|
80824A
|
80824A
808508991D Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾐｷﾞｶﾞﾜ |
808508991D |
US $1.73 |
||
|
80824A
|
80824A
80850-8992D Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
80850-8992D |
US $0.86 |
||
|
80824A
|
80824A
8085089918 Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
8085089918 |
US $0.86 |
||
|
80824A
|
80824A
808508991E Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
808508991E |
US $0.86 |
||
|
80824A
|
80824A
80850-89963 Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
80850-89963 |
US $2.02 |
||
|
80824AA
|
80824AA
8085089918 Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
8085089918 |
US $0.86 |
||
|
80824AB
|
80824AB
808508991E Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
808508991E |
US $0.86 |
||
|
80824AC
|
80824AC
80850-89963 Clip-Weatherstrip0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ |
80850-89963 |
US $2.02 |
||
|
80830
|
80830
80830-CN000 Weatherstrip-Front Door, Rh0306--01 ~ 0606--01; W |
80830-CN000 |
US $132.19 |
||
|
80831
|
80831
80831CN000 Weatherstrip-Front Door, Lh0306--01 ~ 0606--01; W |
80831CN000 |
US $132.19 |
||
|
80841
|
80841
64891W5000 Plug-Rubber0306--01 ~ 0606--01; W |
64891W5000 |
from US $0.80 |
||
|
80841
|
80841
80840-CN000 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN000 |
US $3.74 |
||
|
80841
|
80841
80840CN001 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840CN001 |
US $3.74 |
||
|
80841
|
80841
80840-CN005 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN005 |
US $3.74 |
||
|
80841
|
80841
80840-CN007 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN007 |
US $3.74 |
||
|
80841
|
80841
80840-CN008 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN008 |
US $3.74 |
||
|
80841
|
80841
80840-CN009 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840-CN009 |
US $3.74 |
||
|
80841
|
80841
80840CN010 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840CN010 |
US $3.74 |
||
|
80841
|
80841
80840-CN011 Cover-Hole, Front Door Inside0405--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V |
80840-CN011 |
US $3.74 |
||
|
80841
|
80841
80840-CN212 Cover-Hole, Front Door Inside0410--01 ~ 0606--01; W |
80840-CN212 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN000 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN000 |
US $3.74 |
||
|
80841+A
|
80841+A
80840CN001 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840CN001 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN005 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN005 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN007 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN007 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN008 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN008 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN009 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840-CN009 |
US $3.74 |
||
|
80841+A
|
80841+A
80840CN010 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840CN010 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN011 Cover-Hole, Front Door Inside0405--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V |
80840-CN011 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN212 Cover-Hole, Front Door Inside0410--01 ~ 0606--01; W |
80840-CN212 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN000 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN000 |
US $3.74 |
||
|
80841+A
|
80841+A
80840CN001 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840CN001 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN005 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN005 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN007 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN007 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN008 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN008 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN009 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840-CN009 |
US $3.74 |
||
|
80841+A
|
80841+A
80840CN010 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840CN010 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN011 Cover-Hole, Front Door Inside0405--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V |
80840-CN011 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN212 Cover-Hole, Front Door Inside0410--01 ~ 0606--01; W |
80840-CN212 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN000 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN000 |
US $3.74 |
||
|
80841+A
|
80841+A
80840CN001 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840CN001 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN005 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN005 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN007 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN007 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN008 Cover-Hole, Front Door Inside0306--01 ~ 0606--01; W |
80840-CN008 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN009 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840-CN009 |
US $3.74 |
||
|
80841+A
|
80841+A
80840CN010 Cover-Hole, Front Door Inside0306--01 ~ 0410--01; W |
80840CN010 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN011 Cover-Hole, Front Door Inside0405--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V |
80840-CN011 |
US $3.74 |
||
|
80841+A
|
80841+A
80840-CN212 Cover-Hole, Front Door Inside0410--01 ~ 0606--01; W |
80840-CN212 |
US $3.74 |
||
|
80880M
|
80880M
80860CN000 Screen-Sealing, Front Rh0306--01 ~ 0606--01; W |
80860CN000 |
US $17.57 |
||
