Component List PRESAGE
Slide door panel & fitting (2003-06-01 ~ 2006-06-01; W)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
081268202H	081268202H 08126-8202H Bolt-hexagon	08126-8202H	US $3.06
081466102G	081466102G 081466102G Bolt-hexagon	081466102G	—
081466162H	081466162H 081466162H Bolt-hexagon	081466162H	from US $0.72
081466162H	081466162H 081466162H Bolt-hexagon	081466162H	from US $0.72
081466162H	081466162H 081466162H Bolt-hexagon	081466162H	from US $0.72
081A68162A	081A68162A 081A68162A BOLT	081A68162A	—
081A86122A	081A86122A 081A8-6122A ﾎﾞﾙﾄ	081A8-6122A	—
081A86122A	081A86122A 081A8-6122A ﾎﾞﾙﾄ	081A8-6122A	—
089112062H	089112062H 089112062H NUT	089112062H	US $2.08
78403U	78403U 78403-CN000 Inter Lock-Fuel Filler 0306--01 ~ 0410--01; W	78403-CN000	US $91.58
78403U	78403U 78403-CN00B Inter Lock-Fuel Filler 0410--01 ~ 0503--01; W	78403-CN00B	US $91.58
78403U	78403U 78403-CN500 Inter Lock-Fuel Filler 0306--01 ~ 0308--01; *W	78403-CN500	US $91.58
78403U	78403U 78403CN510 Inter Lock-Fuel Filler 0308--01 ~ 0410--01; *W	78403CN510	US $91.58
78403U	78403U 78403-CN51B Inter Lock-Fuel Filler 0410--01 ~ 0503--01; *W	78403-CN51B	US $91.58
78413U	78413U 78413-CN000 Bracket-Slide Door Interlock 0306--01 ~ 0606--01; W	78413-CN000	US $36.86
81101F	81101F 64892W5000 Unit Assy-Divider Tachometer 0306--01 ~ 0606--01; W	64892W5000	US $0.97
81101F	81101F 0165801831 PLUG 0306--01 ~ 0606--01; W	0165801831	US $2.30
81101F	81101F 0165800052 PLUG 0306--01 ~ 0606--01; W	0165800052	US $2.45
81101F	81101F 74816AL500 Plug 0306--01 ~ 0606--01; W	74816AL500	US $1.93
81101FA	81101FA 0165801831 PLUG 0306--01 ~ 0606--01; W	0165801831	US $2.30
81101FB	81101FB 0165800052 PLUG 0306--01 ~ 0606--01; W	0165800052	US $2.45
81101FC	81101FC 74816AL500 Plug 0306--01 ~ 0606--01; W	74816AL500	US $1.93
81810R	81810R 82420-CN000 Roller Assy-Slide Door, Lower Rh 0306--01 ~ 0309--01; W	82420-CN000	US $154.08
81810R	81810R 82420-CN010 Roller Assy-Slide Door, Lower Rh 0309--01 ~ 0606--01; W	82420-CN010	US $154.08
81810U	81810U 82410-CN010 Roller Assy-Slide Door, Rear Rh 0306--01 ~ 0606--01; W	82410-CN010	US $83.38
81811R	81811R 82421-CN000 Roller Assy-Slide Door, Lower Lh 0306--01 ~ 0309--01; W	82421-CN000	US $154.08
81811R	81811R 82421CN010 Roller Assy-Slide Door, Lower Lh 0309--01 ~ 0606--01; W	82421CN010	US $154.08
81811R	81811R 82421-CN500 Roller Assy-Slide Door, Lower Lh 0306--01 ~ 0309--01; *W	82421-CN500	US $154.08
81811R	81811R 82421-CN510 Roller Assy-Slide Door, Lower Lh 0309--01 ~ 0410--01; *W	82421-CN510	US $154.08
81811U	81811U 82411CN010 Roller Assy-Slide Door, Rear Lh 0306--01 ~ 0606--01; W	82411CN010	US $83.38
81811U	81811U 82411-CN500 Roller Assy-Slide Door, Rear Lh 0306--01 ~ 0310--01; *W	82411-CN500	US $83.38
81811U	81811U 82411-CN520 Roller Assy-Slide Door, Rear Lh 0310--01 ~ 0410--01; *W	82411-CN520	US $83.38
81841A	81841A 01436-01871 SCREW 0306--01 ~ 0606--01; W	01436-01871	US $1.73
81841A	81841A 0145600031 SCREW 0410--01 ~ 0606--01; *W	0145600031	from US $1.11
81841A	81841A 01464-00181 SCREW 0306--01 ~ 0606--01; W	01464-00181	US $0.86
81841A	81841A 0145600031 SCREW 0307--01 ~ 0509--01; W	0145600031	from US $1.11
81841A	81841A 01436-01871 SCREW 0306--01 ~ 0606--01; W	01436-01871	US $1.73
81841A	81841A 0145600031 SCREW 0410--01 ~ 0606--01; *W	0145600031	from US $1.11
81841A	81841A 01464-00181 SCREW 0306--01 ~ 0606--01; W	01464-00181	US $0.86
81841A	81841A 0145600031 SCREW 0307--01 ~ 0509--01; W	0145600031	from US $1.11
81841AA	81841AA 01464-00181 SCREW 0306--01 ~ 0606--01; W	01464-00181	US $0.86
81841AB	81841AB 0145600031 SCREW 0307--01 ~ 0509--01; W	0145600031	from US $1.11
81842	81842 78837WL100 Bumper-Fuel Filler 0306--01 ~ 0606--01; W; LHﾉﾐ	78837WL100	US $2.88
81842	81842 82896-CN010 Bumper-Slide Door 0306--01 ~ 0606--01; W	82896-CN010	US $4.32
81842+B	81842+B 82896-CN010 Bumper-Slide Door 0306--01 ~ 0606--01; W	82896-CN010	US $4.32
81868N	81868N 82431CN500 Checker-Slide Door, Lh 0306--01 ~ 0410--01; *W	82431CN500	US $65.38
81871A	81871A 01451-00961 SCREW 0306--01 ~ 0606--01; W	01451-00961	from US $0.57
81894	81894 82444CN010 Stopper-Slide Door 0306--01 ~ 0606--01; W	82444CN010	US $23.47
81894	81894 82444-CN020 Stopper-Slide Door 0306--01 ~ 0606--01; W	82444-CN020	US $23.47
81894+A	81894+A 82444-CN020 Stopper-Slide Door 0306--01 ~ 0606--01; W	82444-CN020	US $23.47
82100Q	82100Q H2100CN0MM Door Assy-Slide, Rh 0306--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V	H2100CN0MM	US $868.01
82101Q	82101Q H2101CN0MM Door Assy-Slide, Lh 0306--01 ~ 0410--01; W.QR25DE.X +W.VQ35DE +W.V	H2101CN0MM	US $868.01
82181B	82181B 82585-CN000 Nut 0306--01 ~ 0606--01; W	82585-CN000	US $2.02
82214N	82214N 82214CN000 Sash-Rear Door Lower, Front Rh 0306--01 ~ 0410--01; W	82214CN000	US $58.32
82214N	82214N 82214CN010 Sash-Rear Door Lower, Front Rh 0410--01 ~ 0606--01; W	82214CN010	US $58.32
82215N	82215N 82215CN000 Sash-Rear Door Lower, Front Lh 0306--01 ~ 0410--01; W	82215CN000	US $58.32
82215N	82215N 82215-CN010 Sash-Rear Door Lower, Front Lh 0410--01 ~ 0606--01; W	82215-CN010	US $58.32
82216M	82216M 82216CN000 Sash-Rear Door Lower, Rear Rh 0306--01 ~ 0410--01; W	82216CN000	US $58.32
82216M	82216M 82216-CN010 Sash-Rear Door Lower, Rear Rh 0410--01 ~ 0606--01; W	82216-CN010	US $58.32
82217M	82217M 82217-CN000 Sash-Rear Door Lower, Rear Lh 0306--01 ~ 0410--01; W	82217-CN000	US $58.32
82217M	82217M 82217-CN010 Sash-Rear Door Lower, Rear Lh 0410--01 ~ 0606--01; W	82217-CN010	US $58.32
82290P	82290P 82290CN000 Cover-Rear Door Corner, Outer Rh 0306--01 ~ 0606--01; W	82290CN000	US $94.61
82291P	82291P 82291CN000 Cover-Rear Door Corner, Outer Lh 0306--01 ~ 0606--01; W	82291CN000	US $94.61
82400P	82400P 82400-CN000 Roller-Slide Door, Upper Rh 0306--01 ~ 0606--01; W	82400-CN000	US $64.08
82401P	82401P 82401CN000 Roller-Slide Door, Upper Lh 0306--01 ~ 0606--01; W	82401CN000	US $64.08
82410B	82410B 82586-CN000 Bolt 0306--01 ~ 0309--01; W	82586-CN000	US $2.45
82410B	82410B 82586CN010 Bolt 0309--01 ~ 0410--01; *W	82586CN010	US $2.45
82410B	82410B 01121-02051 BOLT 0309--01 ~ 0606--01; W	01121-02051	US $1.73
82410BA	82410BA 01121-02051 BOLT 0309--01 ~ 0606--01; W	01121-02051	US $1.73
82412N	82412N 82412-CN010 Roller-Slide Door, Rear 0306--01 ~ 0410--01; *W	82412-CN010	US $29.81
82424P	82424P 82424-CN010 Bracket-Roller, Lower Rh 0309--01 ~ 0606--01; W	82424-CN010	US $24.48
82425P	82425P 82425-CN010 Bracket-Roller, Lower Lh 0309--01 ~ 0606--01; W	82425-CN010	US $24.48
82440P	82440P 82440-CN001 Stopper-Rear Door Upper, Rh 0306--01 ~ 0309--01; W	82440-CN001	US $23.47
82440P	82440P 82440-CN010 Stopper-Rear Door Upper, Rh 0309--01 ~ 0606--01; W	82440-CN010	US $23.47
82441P	82441P 82441-CN001 Stopper-Rear Door Upper, Lh 0306--01 ~ 0309--01; W	82441-CN001	US $23.47
82441P	82441P 82441-CN010 Stopper-Rear Door Upper, Lh 0309--01 ~ 0606--01; W	82441-CN010	US $23.47
82443M	82443M 82487-CN000 Stopper-Rear Door Lower, Lh 0306--01 ~ 0606--01; W	82487-CN000	US $23.47
82470N	82470N 82470-CN000 Male Assy-Dovetail Upper 0306--01 ~ 0409--01; W	82470-CN000	US $18.72
82470N	82470N 82470CN00A Male Assy-Dovetail Upper 0409--01 ~ 0606--01; W	82470CN00A	US $18.72
82472N	82472N 82472-CN000 Female Assy-Dovetail Upper 0306--01 ~ 0409--01; W	82472-CN000	US $18.72
82472N	82472N 82472CN00A Female Assy-Dovetail Upper 0409--01 ~ 0606--01; W	82472CN00A	US $18.72
82474N	82474N 82474-CN000 Male Assy-Dovetail Lower, Rh 0306--01 ~ 0606--01; W	82474-CN000	US $25.49
82475N	82475N 82475-CN000 Male Assy-Dovetail Lower, Lh 0306--01 ~ 0606--01; W	82475-CN000	US $25.49
82476P	82476P 82476CN000 Female Assy-Dovetail Lower 0306--01 ~ 0606--01; W	82476CN000	US $18.72
82482N	82482N 82482-CN000 Cover-Rear Door Hinge, Rh 0306--01 ~ 0309--01; W	82482-CN000	US $18.72
82482N	82482N 82482-CN010 Cover-Rear Door Hinge, Rh 0309--01 ~ 0606--01; W	82482-CN010	US $18.72
82483N	82483N 82483-CN000 Cover-Rear Door Hinge, Lh 0306--01 ~ 0309--01; W	82483-CN000	US $18.72
82483N	82483N 82483-CN010 Cover-Rear Door Hinge, Lh 0309--01 ~ 0606--01; W	82483-CN010	US $18.72
82486	82486 82486-CN000 Stopper-Slide Door, Lower 0306--01 ~ 0606--01; W	82486-CN000	US $23.47
82816Y	82816Y 82816CN000 Tape-Slide Door Sash, Front Rh 0306--01 ~ 0606--01; W	82816CN000	US $30.10
82817Y	82817Y 82817CN000 Tape-Slide Door Sash, Front Lh 0306--01 ~ 0606--01; W	82817CN000	US $30.10
82818Y	82818Y 82818CN000 Tape-Slide Door Sash, Rear Rh 0306--01 ~ 0606--01; W	82818CN000	US $30.10
82819Y	82819Y 82819CN000 Tape-Slide Door Sash, Rear Lh 0306--01 ~ 0606--01; W	82819CN000	US $30.10
82820M	82820M 82820CN000 Mounting-Rear Door Outside, Rh 0306--01 ~ 0606--01; W	82820CN000	US $98.06
82821M	82821M 82821CN000 Moulding-Rear Door Outside, Lh 0306--01 ~ 0606--01; W	82821CN000	US $98.06
82830F	82830F 8085079906 Clip-Weatherstrip 0306--01 ~ 0410--01; *W; ﾐｷﾞｶﾞﾜ	8085079906	US $2.02
82830F	82830F 8085079907 Clip-Weatherstrip 0306--01 ~ 0606--01; W; ﾋﾀﾞﾘ	8085079907	US $2.02
82830F	82830F 80850-79903 Clip-Weatherstrip 0306--01 ~ 0606--01; W; ﾐｷﾞ & ﾋﾀﾞﾘ	80850-79903	US $2.30
82830F	82830F 808508992A Clip 0306--01 ~ 0606--01; W	808508992A	US $1.73
82830F	82830F 82849-CN020 Clip 0306--01 ~ 0606--01; W	82849-CN020	US $1.73
82830F	82830F 16156CN00A Clip 0306--01 ~ 0410--01; W	16156CN00A	US $1.73
82830F	82830F 16156CN00A Clip 0306--01 ~ 0410--01; W	16156CN00A	US $1.73
82830FA	82830FA 80850-79903 Clip-Weatherstrip 0306--01 ~ 0606--01; W; ﾐｷﾞ & ﾋﾀﾞﾘ	80850-79903	US $2.30
82830FB	82830FB 808508992A Clip 0306--01 ~ 0606--01; W	808508992A	US $1.73
82830FC	82830FC 82849-CN020 Clip 0306--01 ~ 0606--01; W	82849-CN020	US $1.73
82830FD	82830FD 16156CN00A Clip 0306--01 ~ 0410--01; W	16156CN00A	US $1.73
82830FE	82830FE 16156CN00A Clip 0306--01 ~ 0410--01; W	16156CN00A	US $1.73
82832N	82832N 82832CN000 Weatherstrip-Slide Door, Lower 0306--01 ~ 0606--01; W	82832CN000	US $38.88
82834P	82834P 82838-CN000 Seal-Slide Door Inside, Rh 0306--01 ~ 0606--01; W	82838-CN000	US $50.11
82835P	82835P 82839CN000 Seal-Slide Door Inside, Lh 0306--01 ~ 0606--01; W	82839CN000	US $50.11
82840R	82840R 8282841L00 Cover-Child Lock Lever 0306--01 ~ 0606--01; W	8282841L00	US $1.73
82840U	82840U 64894-W0500 Plug-Hole 0306--01 ~ 0606--01; W	64894-W0500	US $0.86
82840U	82840U 64890CN010 Cover-Hole 0306--01 ~ 0606--01; W; LHﾉﾐ	64890CN010	US $2.30
82840UA	82840UA 64890CN010 Cover-Hole 0306--01 ~ 0606--01; W; LHﾉﾐ	64890CN010	US $2.30
82860M	82860M 82860CN000 Screen-Sealing Slide Door 0306--01 ~ 0312--01; W	82860CN000	US $24.48
82860M	82860M 82860CN015 Screen-Sealing Slide Door 0312--01 ~ 0606--01; W	82860CN015	US $24.48
82860M	82860M 82861CN000 Screen-Sealing Slide Door 0306--01 ~ 0312--01; W	82861CN000	US $24.48
82860M	82860M 82861CN015 Screen-Sealing Slide Door 0312--01 ~ 0606--01; W	82861CN015	US $24.48
82860MA	82860MA 82861CN000 Screen-Sealing Slide Door 0306--01 ~ 0312--01; W	82861CN000	US $24.48
82860MA	82860MA 82861CN015 Screen-Sealing Slide Door 0312--01 ~ 0606--01; W	82861CN015	US $24.48
82887M	82887M 82887CN510 Protector-Slide Door, Front 0306--01 ~ 0410--01; *W	82887CN510	US $195.84

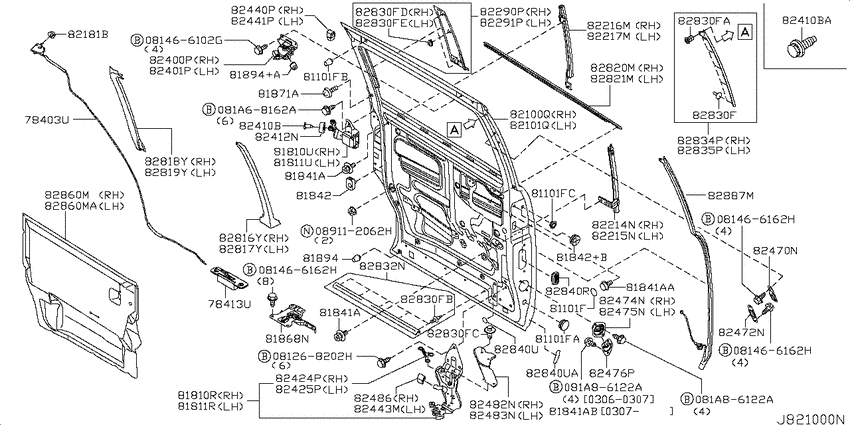

Slide door panel & fitting (2003-06-01 ~ 2006-06-01; W) Diagram Nissan PRESAGE Japan 7899212-623708

Slide door panel & fitting (2003-06-01 ~ 2006-06-01; W) Diagram Nissan PRESAGE Japan 7899212-623708
