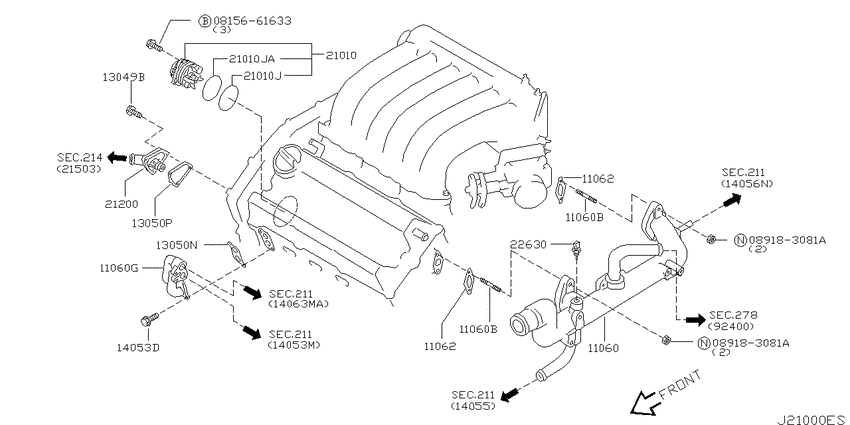

Water pump, cooling fan & thermostat (2003-06-01 ~ 2006-06-01; VQ35DE) Diagram Nissan PRESAGE
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 4WD
- transmission
- CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0815661633
|
0815661633
0815661633 Bolt-hexagon |
0815661633 |
US $0.74 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
11060
|
11060
11060-8J100
Outlet-Water
0306--01 ~ 0310--01; VQ35DE |
11060-8J100 |
— | ||
| replacement | |||||
|
11060
|
11060
110609Y40A Outlet-Water0306--01 ~ 0310--01; VQ35DE |
110609Y40A |
from US $201.87 |
||
|
11060
|
11060
11060-9Y400 Outlet-Water0310--01 ~ 0606--01; VQ35DE |
11060-9Y400 |
US $156.96 |
||
|
11060
|
11060
14895-2Y520 Stud0306--01 ~ 0606--01; VQ35DE |
14895-2Y520 |
US $2.45 |
||
|
11060
|
11060
1407531U00 Connector0306--01 ~ 0606--01; VQ35DE |
1407531U00 |
US $27.50 |
||
|
11060B
|
11060B
14895-2Y520 Stud0306--01 ~ 0606--01; VQ35DE |
14895-2Y520 |
US $2.45 |
||
|
11060B
|
11060B
14895-2Y520 Stud0306--01 ~ 0606--01; VQ35DE |
14895-2Y520 |
US $2.45 |
||
|
11060G
|
11060G
1407531U00 Connector0306--01 ~ 0606--01; VQ35DE |
1407531U00 |
US $27.50 |
||
|
11062
|
11062
11062AL501
Gasket-Water Outlet
0306--01 ~ 0606--01; VQ35DE |
11062AL501 |
— | ||
| replacement | |||||
|
11062
|
11062
11062-AL51A 11062AL51A0306--01 ~ 0606--01; VQ35DE |
11062-AL51A |
from US $2.16 |
||
|
11062
|
11062
11062AL501
Gasket-Water Outlet
0306--01 ~ 0606--01; VQ35DE |
11062AL501 |
— | ||
| replacement | |||||
|
11062
|
11062
11062-AL51A 11062AL51A0306--01 ~ 0606--01; VQ35DE |
11062-AL51A |
from US $2.16 |
||
|
13049B
|
13049B
11916-31U05
Bolt
0306--01 ~ 0606--01; VQ35DE |
11916-31U05 |
— | ||
| replacement | |||||
|
13049B
|
13049B
11916-31U0B Bolt0306--01 ~ 0606--01; VQ35DE |
11916-31U0B |
US $1.93 |
||
|
13050N
|
13050N
1305031U05 Gasket-Water Inlet0306--01 ~ 0606--01; VQ35DE |
1305031U05 |
from US $2.28 |
||
|
13050P
|
13050P
1305031U00 Gasket-Water Inlet0306--01 ~ 0606--01; VQ35DE |
1305031U00 |
from US $3.13 |
||
|
14053D
|
14053D
13075-4W001
Bolt
0306--01 ~ 0606--01; VQ35DE |
13075-4W001 |
— | ||
| replacement | |||||
|
14053D
|
14053D
13075-4W00C Bolt0306--01 ~ 0606--01; VQ35DE |
13075-4W00C |
US $4.71 |
||
|
21010
|
21010
21010-AL527 Pump Assy-Water0306--01 ~ 0606--01; VQ35DE |
21010-AL527 |
US $237.60 |
||
|
21010
|
21010
2104931U03 Seal-O Ring0306--01 ~ 0606--01; VQ35DE |
2104931U03 |
from US $4.07 |
||
|
21010
|
21010
2104931U04 Seal-O Ring0306--01 ~ 0606--01; VQ35DE |
2104931U04 |
from US $4.29 |
||
|
21010J
|
21010J
2104931U03 Seal-O Ring0306--01 ~ 0606--01; VQ35DE |
2104931U03 |
from US $4.07 |
||
|
21010J
|
21010J
2104931U04 Seal-O Ring0306--01 ~ 0606--01; VQ35DE |
2104931U04 |
from US $4.29 |
||
|
21010JA
|
21010JA
2104931U04 Seal-O Ring0306--01 ~ 0606--01; VQ35DE |
2104931U04 |
from US $4.29 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
21200
|
21200
21200-8J100 Thermostat Assy0306--01 ~ 0606--01; VQ35DE |
21200-8J100 |
US $69.98 |
||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
22630
|
22630
2263044B20 Engine Coolant Temperature Sensor0306--01 ~ 0606--01; VQ35DE |
2263044B20 |
from US $44.77 |
||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
