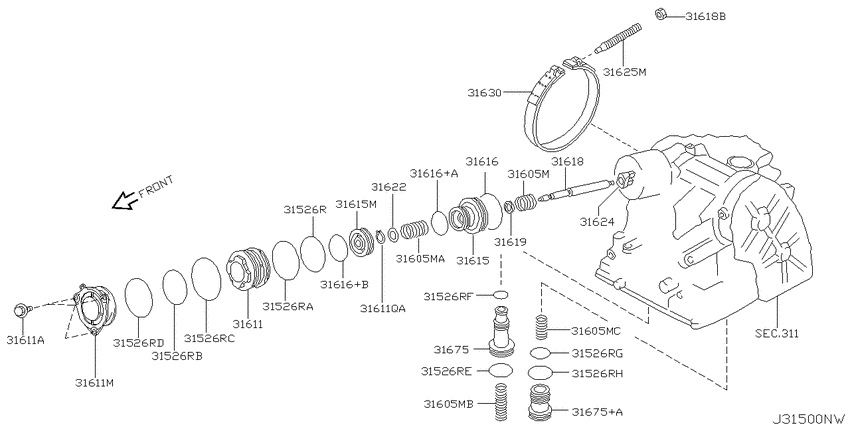

Clutch & band servo (2003-06-01 ~ ; サーボパーツ; AT) Diagram Nissan PRESAGE
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- QR25DE
- drive
- 2WD
- transmission
- AT
- grade
- V
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
31526R
|
31526R
31526-80X06 Seal-0 Ring0306--01 ~ ; AT |
31526-80X06 |
from US $4.18 |
||
|
31526R
|
31526R
31526-80X03 Seal-0 Ring0306--01 ~ ; AT |
31526-80X03 |
US $4.18 |
||
|
31526R
|
31526R
31526-80X04 Seal-0 Ring0306--01 ~ ; AT |
31526-80X04 |
US $4.18 |
||
|
31526R
|
31526R
31526-80X05 Seal-0 Ring0306--01 ~ ; AT |
31526-80X05 |
US $4.18 |
||
|
31526R
|
31526R
31526-80X07 Seal-0 Ring0306--01 ~ ; AT |
31526-80X07 |
from US $4.18 |
||
|
31526R
|
31526R
31526-41X02 Seal-O Ring0306--01 ~ ; AT; S-R |
31526-41X02 |
US $2.36 |
||
|
31526R
|
31526R
31526-41X03 Seal-O Ring0306--01 ~ ; AT; S-R |
31526-41X03 |
US $2.36 |
||
|
31526R
|
31526R
31526-31X08 Seal-O Ring0306--01 ~ 0706--01; AT; N-D |
31526-31X08 |
US $4.18 |
||
|
31526R
|
31526R
3167221X00 Seal-O Ring, Accumulator0306--01 ~ 0706--01; AT; N-D |
3167221X00 |
US $4.99 |
||
|
31526RA
|
31526RA
31526-80X03 Seal-0 Ring0306--01 ~ ; AT |
31526-80X03 |
US $4.18 |
||
|
31526RB
|
31526RB
31526-80X04 Seal-0 Ring0306--01 ~ ; AT |
31526-80X04 |
US $4.18 |
||
|
31526RC
|
31526RC
31526-80X05 Seal-0 Ring0306--01 ~ ; AT |
31526-80X05 |
US $4.18 |
||
|
31526RD
|
31526RD
31526-80X07 Seal-0 Ring0306--01 ~ ; AT |
31526-80X07 |
from US $4.18 |
||
|
31526RE
|
31526RE
31526-41X02 Seal-O Ring0306--01 ~ ; AT; S-R |
31526-41X02 |
US $2.36 |
||
|
31526RF
|
31526RF
31526-41X03 Seal-O Ring0306--01 ~ ; AT; S-R |
31526-41X03 |
US $2.36 |
||
|
31526RG
|
31526RG
31526-31X08 Seal-O Ring0306--01 ~ 0706--01; AT; N-D |
31526-31X08 |
US $4.18 |
||
|
31526RH
|
31526RH
3167221X00 Seal-O Ring, Accumulator0306--01 ~ 0706--01; AT; N-D |
3167221X00 |
US $4.99 |
||
|
31605M
|
31605M
31605-31X20 Spring-Servo0306--01 ~ ; AT |
31605-31X20 |
US $3.46 |
||
|
31605M
|
31605M
31605-80X07 Spring-Servo0306--01 ~ ; AT |
31605-80X07 |
US $3.46 |
||
|
31605M
|
31605M
31605-85X00 Spring-Servo0306--01 ~ ; AT; S-R |
31605-85X00 |
US $3.46 |
||
|
31605M
|
31605M
31605-3CX02 Spring-Servo0606--01 ~ ; AT; N-D |
31605-3CX02 |
US $4.18 |
||
|
31605M
|
31605M
31605-85X02 Spring-Servo0306--01 ~ 0606--01; AT; N-D |
31605-85X02 |
US $3.46 |
||
|
31605MA
|
31605MA
31605-80X07 Spring-Servo0306--01 ~ ; AT |
31605-80X07 |
US $3.46 |
||
|
31605MB
|
31605MB
31605-85X00 Spring-Servo0306--01 ~ ; AT; S-R |
31605-85X00 |
US $3.46 |
||
|
31605MC
|
31605MC
31605-3CX02 Spring-Servo0606--01 ~ ; AT; N-D |
31605-3CX02 |
US $4.18 |
||
|
31605MC
|
31605MC
31605-85X02 Spring-Servo0306--01 ~ 0606--01; AT; N-D |
31605-85X02 |
US $3.46 |
||
|
31611
|
31611
31611-80X04 Retainer-Servo Piston0306--01 ~ ; AT |
31611-80X04 |
US $47.66 |
||
|
31611
|
31611
31377-80X13 Bolt0306--01 ~ ; AT |
31377-80X13 |
US $1.73 |
||
|
31611
|
31611
31691-80X1A Retainer-Servo Piston0606--01 ~ ; AT |
31691-80X1A |
US $49.82 |
||
|
31611
|
31611
31691-80X66 Retainer-Servo Piston0306--01 ~ 0606--01; AT |
31691-80X66 |
US $49.82 |
||
| replacement | |||||
|
31611
|
31611
31691-80X1A Retainer-Servo Piston0306--01 ~ 0606--01; AT |
31691-80X1A |
US $49.82 |
||
|
31611
|
31611
31506-31X17 Ring-Snap0306--01 ~ ; AT |
31506-31X17 |
US $5.33 |
||
|
31611A
|
31611A
31377-80X13 Bolt0306--01 ~ ; AT |
31377-80X13 |
US $1.73 |
||
|
31611M
|
31611M
31691-80X1A Retainer-Servo Piston0606--01 ~ ; AT |
31691-80X1A |
US $49.82 |
||
|
31611M
|
31611M
31691-80X66 Retainer-Servo Piston0306--01 ~ 0606--01; AT |
31691-80X66 |
US $49.82 |
||
| replacement | |||||
|
31611M
|
31611M
31691-80X1A Retainer-Servo Piston0306--01 ~ 0606--01; AT |
31691-80X1A |
US $49.82 |
||
|
31611QA
|
31611QA
31506-31X17 Ring-Snap0306--01 ~ ; AT |
31506-31X17 |
US $5.33 |
||
|
31615
|
31615
31615-80X00 Piston-Band Servo0306--01 ~ ; AT |
31615-80X00 |
US $36.86 |
||
|
31615
|
31615
31695-80X09 Piston-Overdrive Servo0306--01 ~ ; AT |
31695-80X09 |
US $14.40 |
||
|
31615M
|
31615M
31695-80X09 Piston-Overdrive Servo0306--01 ~ ; AT |
31695-80X09 |
US $14.40 |
||
|
31616
|
31616
31527-80X07 Seal-Lathe Cut Ring0306--01 ~ ; AT |
31527-80X07 |
US $4.75 |
||
|
31616
|
31616
31527-80X08 Seal-Lathe Cut Ring0306--01 ~ ; AT |
31527-80X08 |
from US $4.75 |
||
|
31616
|
31616
31527-80X14 Seal-Lathe Cut Ring0306--01 ~ ; AT |
31527-80X14 |
US $4.75 |
||
|
31616+A
|
31616+A
31527-80X08 Seal-Lathe Cut Ring0306--01 ~ ; AT |
31527-80X08 |
from US $4.75 |
||
|
31616+B
|
31616+B
31527-80X14 Seal-Lathe Cut Ring0306--01 ~ ; AT |
31527-80X14 |
US $4.75 |
||
|
31618
|
31618
31618-80X05 Stem-Band Servo Piston0306--01 ~ ; AT |
31618-80X05 |
US $9.07 |
||
|
31618
|
31618
31365-31X04 Nut0306--01 ~ ; AT |
31365-31X04 |
US $1.73 |
||
|
31618B
|
31618B
31365-31X04 Nut0306--01 ~ ; AT |
31365-31X04 |
US $1.73 |
||
|
31619
|
31619
31619-01X00 Washer-Piston Stem0306--01 ~ ; AT |
31619-01X00 |
US $0.86 |
||
|
31622
|
31622
31622-31X01 Retainer-Snap, Stem Band0306--01 ~ ; AT |
31622-31X01 |
US $6.19 |
||
|
31624
|
31624
31624-41X00 Strut-Band0306--01 ~ ; AT |
31624-41X00 |
US $4.18 |
||
|
31625M
|
31625M
31625-80X01 Pin-Anchor End0306--01 ~ ; AT |
31625-80X01 |
US $4.18 |
||
|
31630
|
31630
3163080X05 Band Assy-Brake0306--01 ~ ; AT |
3163080X05 |
from US $49.25 |
||
|
31675
|
31675
31675-3CX00 Piston-Accumulator Servo0606--01 ~ 0706--01; AT; S-R |
31675-3CX00 |
US $10.80 |
||
|
31675
|
31675
31675-85X00 Piston-Accumulator Servo0306--01 ~ 0606--01; AT; S-R |
31675-85X00 |
US $10.80 |
||
|
31675
|
31675
31675-31X06 Piston-Accumulator Servo0306--01 ~ 0706--01; AT; N-D |
31675-31X06 |
US $10.39 |
||
|
31675
|
31675
31675-3CX00 Piston-Accumulator Servo0706--01 ~ ; AT; S-R |
31675-3CX00 |
US $10.80 |
||
|
31675+A
|
31675+A
31675-31X06 Piston-Accumulator Servo0306--01 ~ 0706--01; AT; N-D |
31675-31X06 |
US $10.39 |
||
|
31675+A
|
31675+A
31675-3CX00 Piston-Accumulator Servo0706--01 ~ ; AT; S-R |
31675-3CX00 |
US $10.80 |
||
