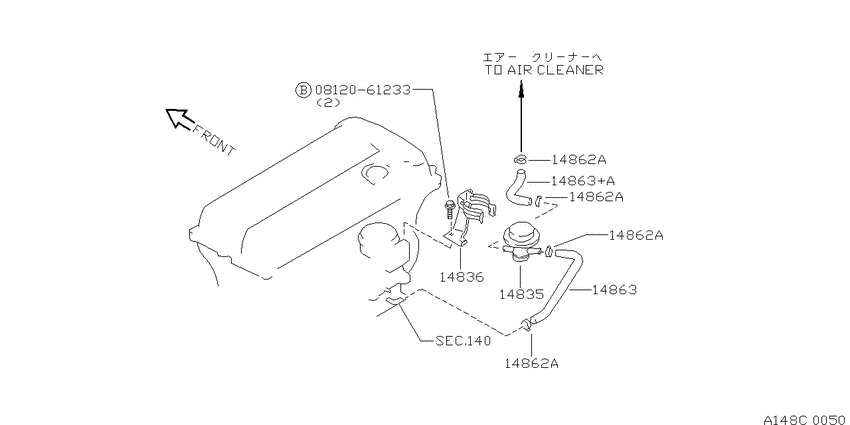

Secondary air system (1990-06-01 ~ 1992-06-01; SR18DI) Diagram Nissan PRESEA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR18DI
- transmission
- AT
- grade
- CT1
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061233
|
0812061233
0812061233 Bolt-hexagon |
0812061233 |
US $0.56 |
||
|
14835
|
14835
14835-23M01 Valve Assy-Ab9006--01 ~ 9206--01; SR18DI |
14835-23M01 |
US $132.80 |
||
|
14836
|
14836
14836-60J00 Bracket-Ab Valve9006--01 ~ 9206--01; SR18DI |
14836-60J00 |
US $28.51 |
||
|
14862A
|
14862A
16439-V5000
Clamp-Hose A
9006--01 ~ 9206--01; SR18DI |
16439-V5000 |
— | ||
| replacement | |||||
|
14862A
|
14862A
16439V500B Clamp-Hose A9006--01 ~ 9206--01; SR18DI |
16439V500B |
from US $2.50 |
||
|
14862A
|
14862A
16439-V5000
Clamp-Hose A
9006--01 ~ 9206--01; SR18DI |
16439-V5000 |
— | ||
| replacement | |||||
|
14862A
|
14862A
16439V500B Clamp-Hose A9006--01 ~ 9206--01; SR18DI |
16439V500B |
from US $2.50 |
||
|
14862A
|
14862A
16439-V5000
Clamp-Hose A
9006--01 ~ 9206--01; SR18DI |
16439-V5000 |
— | ||
| replacement | |||||
|
14862A
|
14862A
16439V500B Clamp-Hose A9006--01 ~ 9206--01; SR18DI |
16439V500B |
from US $2.50 |
||
|
14862A
|
14862A
16439-V5000
Clamp-Hose A
9006--01 ~ 9206--01; SR18DI |
16439-V5000 |
— | ||
| replacement | |||||
|
14862A
|
14862A
16439V500B Clamp-Hose A9006--01 ~ 9206--01; SR18DI |
16439V500B |
from US $2.50 |
||
|
14863
|
14863
14863-64J02 Hose-Ab Valve To Inlet Connector9006--01 ~ 9206--01; SR18DI |
14863-64J02 |
US $16.56 |
||
|
14863
|
14863
14863-64J00 Hose-Ab Valve To Inlet Connector9006--01 ~ 9206--01; SR18DI |
14863-64J00 |
US $16.85 |
||
|
14863+A
|
14863+A
14863-64J00 Hose-Ab Valve To Inlet Connector9006--01 ~ 9206--01; SR18DI |
14863-64J00 |
US $16.85 |
||
