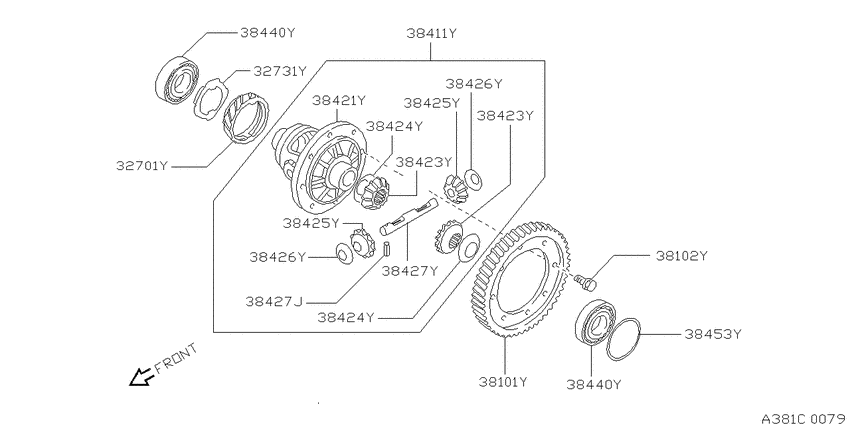

Front final drive (1990-06-01 ~ 1992-06-01; SR18DI.MT; SR18DI.MT +SR20D.MT) Diagram Nissan PRESEA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR20D
- transmission
- MT
- grade
- CT1
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-70E00
GEAR-DRIVE,SPEEDOMETER
9006--01 ~ 9206--01; SR20D.MT |
32701-70E00 |
— | ||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear9006--01 ~ 9206--01; SR18DI.MT +SR20D.MT |
38431-D2100 |
US $4.75 |
||
|
38101Y
|
38101Y
38101-60Y07 Gear-Final Drive9006--01 ~ 9206--01; SR20D.MT |
38101-60Y07 |
US $167.04 |
||
|
38102Y
|
38102Y
38102-31X60 Bolt-Drive Gear9006--01 ~ 9206--01; SR20D.MT |
38102-31X60 |
US $2.45 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9006--01 ~ 9206--01; SR20D.MT |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-31X05 Bearing-Differential Side9006--01 ~ 9009--01; SR20D.MT |
31408-31X05 |
US $155.52 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9009--01 ~ 9206--01; SR20D.MT |
31408-31X08 |
from US $90.41 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9006--01 ~ 9206--01; SR20D.MT |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-31X05 Bearing-Differential Side9006--01 ~ 9009--01; SR20D.MT |
31408-31X05 |
US $155.52 |
||
|
38440Y
|
38440Y
31408-31X08 Bearing-Differential Side9009--01 ~ 9206--01; SR20D.MT |
31408-31X08 |
from US $90.41 |
||
|
38453Y
|
38453Y
31439-31X00 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.28 |
31439-31X00 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X01 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.32 |
31439-31X01 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X02 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.36 |
31439-31X02 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X03 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.40 |
31439-31X03 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X04 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.44 |
31439-31X04 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X05 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.48 |
31439-31X05 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X06 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.52 |
31439-31X06 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X07 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.56 |
31439-31X07 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X08 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.60 |
31439-31X08 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X09 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.64 |
31439-31X09 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X10 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.68 |
31439-31X10 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X11 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.72 |
31439-31X11 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X12 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.76 |
31439-31X12 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X13 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.80 |
31439-31X13 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X14 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.84 |
31439-31X14 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X15 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.88 |
31439-31X15 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X16 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.92 |
31439-31X16 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X17 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=0.96 |
31439-31X17 |
US $7.20 |
||
|
38453Y
|
38453Y
31439-31X18 Shim-Adjust, Side Bearing9006--01 ~ 9206--01; SR20D.MT; ｾﾝﾀｸ T=1.44 |
31439-31X18 |
US $7.20 |
