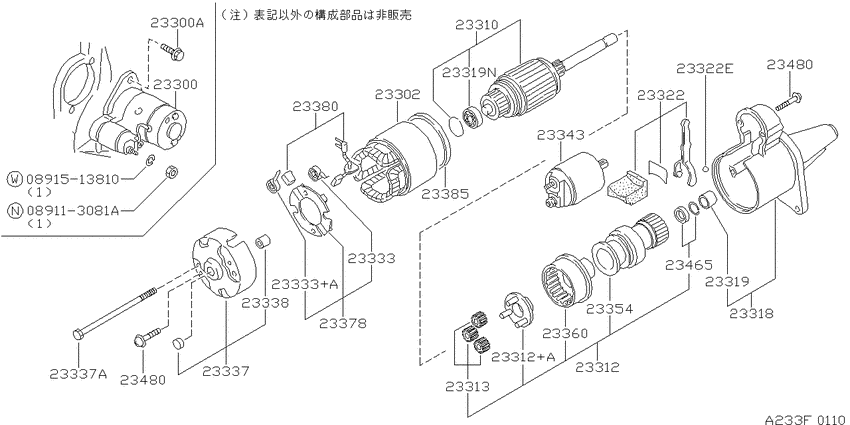

Starter motor (1990-06-01 ~ 1992-06-01; *=寒冷地仕様; SR18DI.AT +SR20D) Diagram Nissan PRESEA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR20D
- transmission
- MT
- grade
- CT1
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-53J11 Motor Assy-Starter9006--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23300-53J11 |
US $1,057.75 |
||
|
23300
|
23300
23300-53J12 Motor Assy-Starter9011--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23300-53J12 |
US $1,163.95 |
||
|
23300
|
23300
01121-05211 BOLT9006--01 ~ 9206--01; SR18DI.AT +SR20D |
01121-05211 |
US $5.04 |
||
|
23300A
|
23300A
01121-05211 BOLT9006--01 ~ 9206--01; SR18DI.AT +SR20D |
01121-05211 |
US $5.04 |
||
|
23302
|
23302
23302-42L70 Yoke Assy9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23302-42L70 |
US $259.20 |
||
|
23310
|
23310
23310-01N11 Armature Assy9011--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23310-01N11 |
US $671.18 |
||
|
23310
|
23310
23310-42L70 Armature Assy9006--01 ~ 9010--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23310-42L70 |
US $382.32 |
||
|
23310
|
23310
23310-65Y10 Armature Assy9010--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23310-65Y10 |
US $382.32 |
||
| replacement | |||||
|
23310
|
23310
23310-42L70 Armature Assy9010--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23310-42L70 |
US $382.32 |
||
|
23312
|
23312
23312-53J11 Pinion Assy9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23312-53J11 |
US $433.30 |
||
|
23312
|
23312
23312-53J12 Pinion Assy9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23312-53J12 |
US $106.42 |
||
|
23312+A
|
23312+A
23312-53J12 Pinion Assy9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23312-53J12 |
US $106.42 |
||
|
23313
|
23313
23361-42L70 Planet Gear9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-53J11 Case Assy-Gear9006--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23318-53J11 |
US $119.23 |
||
|
23318
|
23318
23318-53J12 Case Assy-Gear9011--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23318-53J12 |
US $131.18 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23319
|
23319
23319-42L70 Bearing-Gear Case9006--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23319-42L70 |
US $15.70 |
||
|
23319N
|
23319N
23319-42L70 Bearing-Gear Case9006--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23319-42L70 |
US $15.70 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23333+A
|
23333+A
23333-42L71 Spring9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-01N10 Cover Assy-Rear9011--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23337-01N10 |
US $68.54 |
||
|
23337
|
23337
23337-42L70 Cover Assy-Rear9006--01 ~ 9011--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23337-42L70 |
US $45.65 |
||
|
23337
|
23337
23340-20P10 Bolt-Through9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover9011--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23338-01N10 |
US $9.94 |
||
|
23343
|
23343
23343-D0511 Switch Assy-Magnetic9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23343-D0511 |
US $181.44 |
||
|
23354
|
23354
23354-53J11 Clutch Assy9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23354-53J11 |
US $325.68 |
||
|
23360
|
23360
23360-30R11 Gear9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23360-30R11 |
US $69.84 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23378-42L70 |
US $60.19 |
||
|
23380
|
23380
23380-30R10 Brush-Plus9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23380-30R10 |
from US $8.93 |
||
|
23385
|
23385
23385-42L70 Packing Set9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23385-42L70 |
US $4.18 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
|
23480
|
23480
23480-M0110 Screw Set9006--01 ~ 9206--01; SR18DI.AT +SR20D; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
