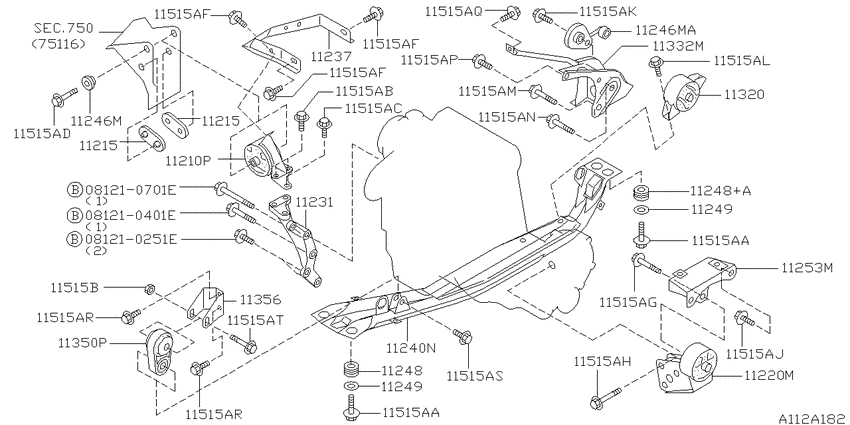

Engine & transmission mounting (1990-06-01 ~ ; GA15DS.MT) Diagram Nissan PRESEA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- GA15DS
- transmission
- MT
- grade
- CT1
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.13 |
||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
11210P
|
11210P
11210-0M000 Insulator Assy-Engine Mounting, Front Rh9403--01 ~ ; GA15DS.MT |
11210-0M000 |
from US $86.54 |
||
|
11210P
|
11210P
11210-50Y00
Insulator Assy-Engine Mounting, Front Rh
9006--01 ~ 9403--01; GA15DS.MT |
11210-50Y00 |
— | ||
| replacements | |||||
|
11210P
|
11210P
11210-0M000 Insulator Assy-Engine Mounting, Front Rh9006--01 ~ 9403--01; GA15DS.MT |
11210-0M000 |
from US $86.54 |
||
|
11210P
|
11210P
11210-0M010 Insulator Assy-Engine Mounting, Front Rh9006--01 ~ 9403--01; GA15DS.MT |
11210-0M010 |
US $94.96 |
||
|
11215
|
11215
11215-50Y00 Stopper-Engine Mounting9006--01 ~ ; GA15DS.MT |
11215-50Y00 |
US $12.38 |
||
|
11215
|
11215
11215-50Y00 Stopper-Engine Mounting9006--01 ~ ; GA15DS.MT |
11215-50Y00 |
US $12.38 |
||
|
11220M
|
11220M
1122050Y00 Insulator Assy-Engine Mounting, Front Lh9006--01 ~ ; GA15DS.MT |
1122050Y00 |
from US $71.54 |
||
|
11231
|
11231
11231-50Y00 Bracket-Engine Mounting9006--01 ~ ; GA15DS.MT |
11231-50Y00 |
US $80.50 |
||
|
11237
|
11237
11237-50Y00 Stay-Engine Mounting, Rh9006--01 ~ ; GA15DS.MT |
11237-50Y00 |
US $44.35 |
||
|
11240N
|
11240N
11240-50Y00 Member Assy-Front, Center9006--01 ~ ; GA15DS.MT |
11240-50Y00 |
US $127.01 |
||
|
11246M
|
11246M
11246-50Y03 Damper Assy-Mass9401--01 ~ ; GA15DS.MT |
11246-50Y03 |
US $46.85 |
||
|
11246M
|
11246M
11246-50Y20
Damper Assy-Mass
9006--01 ~ 9401--01; GA15DS.MT |
11246-50Y20 |
— | ||
| replacement | |||||
|
11246M
|
11246M
11246-50Y03 Damper Assy-Mass9006--01 ~ 9401--01; GA15DS.MT |
11246-50Y03 |
US $46.85 |
||
|
11246M
|
11246M
11246-0M000 Damper Assy-Mass9310--01 ~ ; GA15DS.MT |
11246-0M000 |
US $47.81 |
||
|
11246M
|
11246M
11246-50Y05
Damper Assy-Mass
9006--01 ~ 9310--01; GA15DS.MT |
11246-50Y05 |
— | ||
|
11246MA
|
11246MA
11246-0M000 Damper Assy-Mass9310--01 ~ ; GA15DS.MT |
11246-0M000 |
US $47.81 |
||
|
11246MA
|
11246MA
11246-50Y05
Damper Assy-Mass
9006--01 ~ 9310--01; GA15DS.MT |
11246-50Y05 |
— | ||
|
11248
|
11248
11248-0M900 Pad-Engine Mounting Member9408--01 ~ ; GA15DS.MT |
11248-0M900 |
from US $7.31 |
||
|
11248
|
11248
11248-50Y00 Pad-Engine Mounting Member9006--01 ~ 9408--01; GA15DS.MT |
11248-50Y00 |
from US $4.20 |
||
|
11248
|
11248
11248-50Y05 Pad-Engine Mounting Member9006--01 ~ ; GA15DS.MT |
11248-50Y05 |
from US $5.46 |
||
|
11248+A
|
11248+A
11248-50Y05 Pad-Engine Mounting Member9006--01 ~ ; GA15DS.MT |
11248-50Y05 |
from US $5.46 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9006--01 ~ ; GA15DS.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249
|
11249
11249-50Y00 Collar-Engine Mounting9006--01 ~ ; GA15DS.MT |
11249-50Y00 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50Y01 Bracket-Engine Mounting, Lh9006--01 ~ ; GA15DS.MT |
11253-50Y01 |
US $72.43 |
||
|
11320
|
11320
11320-0M000 Insulator-Engine Mounting, Rear9403--01 ~ 9404--01; GA15DS.MT |
11320-0M000 |
US $114.34 |
||
|
11320
|
11320
11320-0M002 Insulator-Engine Mounting, Rear9404--01 ~ ; GA15DS.MT |
11320-0M002 |
from US $83.64 |
||
|
11320
|
11320
11320-59Y00
Insulator-Engine Mounting, Rear
9006--01 ~ 9403--01; GA15DS.MT |
11320-59Y00 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-0M002 Insulator-Engine Mounting, Rear9006--01 ~ 9403--01; GA15DS.MT |
11320-0M002 |
from US $83.64 |
||
|
11332M
|
11332M
11332-50Y01 Bracket-Engine Mounting, Rear9006--01 ~ ; GA15DS.MT |
11332-50Y01 |
US $97.49 |
||
| replacement | |||||
|
11332M
|
11332M
11332-0M000 Bracket-Engine Mounting, Rear9006--01 ~ ; GA15DS.MT |
11332-0M000 |
US $97.49 |
||
|
11350P
|
11350P
11350-41B00 Buffer Assy-Engine Mounting, Rear9306--01 ~ ; GA15DS.MT |
11350-41B00 |
from US $42.92 |
||
|
11350P
|
11350P
11350-50Y00 Bracket Assy-Engine Mounting, Rear9006--01 ~ 9306--01; GA15DS.MT |
11350-50Y00 |
US $38.18 |
||
|
11356
|
11356
11356-0M000 Stopper-Engine Mounting, Rear9308--01 ~ ; GA15DS.MT |
11356-0M000 |
US $10.37 |
||
|
11356
|
11356
11356-50Y00 Stopper-Engine Mounting, Rear9006--01 ~ 9308--01; GA15DS.MT |
11356-50Y00 |
US $13.39 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9006--01 ~ 9311--01; GA15DS.MT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
54459-0M011 Bolt9311--01 ~ ; GA15DS.MT |
54459-0M011 |
US $3.46 |
||
|
11515AA
|
11515AA
01125-01911 BOLT9006--01 ~ 9311--01; GA15DS.MT |
01125-01911 |
US $2.45 |
||
|
11515AA
|
11515AA
54459-0M011 Bolt9311--01 ~ ; GA15DS.MT |
54459-0M011 |
US $3.46 |
||
|
11515AB
|
11515AB
01125-01821 BOLT9006--01 ~ 9206--01; GA15DS.MT |
01125-01821 |
US $4.18 |
||
|
11515AB
|
11515AB
01125-02851 BOLT9206--01 ~ ; GA15DS.MT |
01125-02851 |
US $2.45 |
||
|
11515AC
|
11515AC
01125-01801 BOLT9006--01 ~ ; GA15DS.MT |
01125-01801 |
US $4.18 |
||
|
11515AD
|
11515AD
01125-01991 BOLT9401--01 ~ ; GA15DS.MT |
01125-01991 |
US $3.46 |
||
|
11515AD
|
11515AD
01125-02321 BOLT9006--01 ~ 9401--01; GA15DS.MT |
01125-02321 |
US $2.45 |
||
|
11515AF
|
11515AF
01125-01801 BOLT9006--01 ~ ; GA15DS.MT |
01125-01801 |
US $4.18 |
||
|
11515AF
|
11515AF
01125-01801 BOLT9006--01 ~ ; GA15DS.MT |
01125-01801 |
US $4.18 |
||
|
11515AF
|
11515AF
01125-01801 BOLT9006--01 ~ ; GA15DS.MT |
01125-01801 |
US $4.18 |
||
|
11515AG
|
11515AG
01125-01931 BOLT9006--01 ~ 9412--01; GA15DS.MT |
01125-01931 |
US $2.45 |
||
|
11515AG
|
11515AG
11298-0M000 Bolt9412--01 ~ ; GA15DS.MT |
11298-0M000 |
US $3.46 |
||
|
11515AH
|
11515AH
01125-01871 BOLT9006--01 ~ ; GA15DS.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11515AH
|
11515AH
01125-03051
Bolt
9006--01 ~ ; GA15DS.MT |
01125-03051 |
— | ||
|
11515AJ
|
11515AJ
0112501951 BOLT9006--01 ~ ; GA15DS.MT |
0112501951 |
US $3.46 |
||
|
11515AK
|
11515AK
01125-02011 BOLT9006--01 ~ ; GA15DS.MT |
01125-02011 |
US $9.36 |
||
|
11515AL
|
11515AL
01125-01941 BOLT9006--01 ~ ; GA15DS.MT |
01125-01941 |
US $4.18 |
||
|
11515AM
|
11515AM
01125-01851 BOLT9006--01 ~ ; GA15DS.MT |
01125-01851 |
US $4.18 |
||
|
11515AN
|
11515AN
01125-01791 BOLT9006--01 ~ ; GA15DS.MT |
01125-01791 |
US $2.45 |
||
|
11515AP
|
11515AP
01125-01851 BOLT9006--01 ~ ; GA15DS.MT |
01125-01851 |
US $4.18 |
||
|
11515AQ
|
11515AQ
01125-01811 BOLT9006--01 ~ ; GA15DS.MT |
01125-01811 |
US $3.46 |
||
|
11515AR
|
11515AR
01125-01811 BOLT9006--01 ~ ; GA15DS.MT |
01125-01811 |
US $3.46 |
||
|
11515AR
|
11515AR
01125-01811 BOLT9006--01 ~ ; GA15DS.MT |
01125-01811 |
US $3.46 |
||
|
11515AS
|
11515AS
01125-01971 BOLT9006--01 ~ ; GA15DS.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11515AS
|
11515AS
01125-03081 BOLT9006--01 ~ ; GA15DS.MT |
01125-03081 |
US $3.46 |
||
|
11515AT
|
11515AT
01125-01981 BOLT9006--01 ~ ; GA15DS.MT |
01125-01981 |
US $2.45 |
||
|
11515B
|
11515B
0122500062 NUT9006--01 ~ ; GA15DS.MT |
0122500062 |
from US $1.67 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
