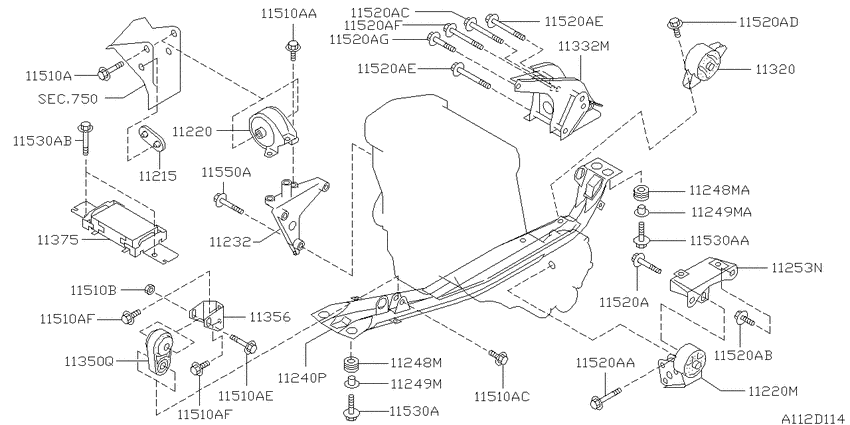

Engine & transmission mounting (1995-01-01 ~ 1997-08-01; SR18DE.MT +SR20DE.MT) Diagram Nissan PRESEA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- SR18DE
- transmission
- MT
- grade
- CT2
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
11215-50Y10 Stopper-Engine Mounting9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11215-50Y10 |
US $13.59 |
||
|
11220
|
11220
11210-0M800 Insulator Assy-Engine Mounting, Front Rh9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11210-0M800 |
US $139.36 |
||
|
11220
|
11220
11220-0M800 Insulator Assy-Engine Mounting, Front Lh9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11220-0M800 |
US $95.04 |
||
|
11220
|
11220
1122058Y00 Insulator Assy-Engine Mounting, Front Lh9910--01 ~ ; SR18DE.MT |
1122058Y00 |
US $96.07 |
||
|
11220M
|
11220M
11220-0M800 Insulator Assy-Engine Mounting, Front Lh9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11220-0M800 |
US $95.04 |
||
|
11220M
|
11220M
1122058Y00 Insulator Assy-Engine Mounting, Front Lh9910--01 ~ ; SR18DE.MT |
1122058Y00 |
US $96.07 |
||
|
11232
|
11232
11231-0M800 Bracket-Engine Mounting9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11231-0M800 |
US $91.73 |
||
|
11240P
|
11240P
11240-0M300 Member Assy-Engine Mounting9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11240-0M300 |
US $152.64 |
||
|
11248M
|
11248M
11248-0M900 Pad-Engine Mounting Member9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11248-0M900 |
from US $6.70 |
||
|
11248M
|
11248M
11248-50Y05 Pad-Engine Mounting Member9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11248-50Y05 |
from US $5.27 |
||
|
11248MA
|
11248MA
11248-50Y05 Pad-Engine Mounting Member9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11248-50Y05 |
from US $5.27 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249MA
|
11249MA
11249-50Y00 Collar-Engine Mounting9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11249-50Y00 |
from US $1.67 |
||
|
11253N
|
11253N
11253-50Y01 Bracket-Engine Mounting, Lh9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11253-50Y01 |
US $72.43 |
||
|
11320
|
11320
11320-0M002 Insulator-Engine Mounting, Rear9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11320-0M002 |
from US $83.64 |
||
|
11332M
|
11332M
11332-0M700 Bracket-Engine Mounting, Rear9508--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11332-0M700 |
US $97.49 |
||
|
11332M
|
11332M
11332-58Y00 Bracket-Engine Mounting, Rear9501--01 ~ 9508--01; SR18DE.MT +SR20DE.MT |
11332-58Y00 |
US $97.49 |
||
|
11350Q
|
11350Q
11350-41B00 Buffer Assy-Engine Mounting, Rear9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11350-41B00 |
from US $42.92 |
||
|
11356
|
11356
11356-58Y00 Stopper-Engine Mounting, Rear9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11356-58Y00 |
US $12.67 |
||
|
11375
|
11375
11375-0M805 Damper Assy-Dynamic9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
11375-0M805 |
US $135.65 |
||
|
11510A
|
11510A
01125-01991 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01991 |
US $3.46 |
||
|
11510A
|
11510A
01125-02991 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-02991 |
US $4.18 |
||
|
11510A
|
11510A
01125-01971 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11510A
|
11510A
01125-03081 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-03081 |
US $3.46 |
||
|
11510A
|
11510A
01125-01981 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01981 |
US $2.45 |
||
|
11510A
|
11510A
01125-01821 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01821 |
US $4.18 |
||
|
11510AA
|
11510AA
01125-02991 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-02991 |
US $4.18 |
||
|
11510AC
|
11510AC
01125-01971 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11510AC
|
11510AC
01125-03081 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-03081 |
US $3.46 |
||
|
11510AE
|
11510AE
01125-01981 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01981 |
US $2.45 |
||
|
11510AF
|
11510AF
01125-01821 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01821 |
US $4.18 |
||
|
11510AF
|
11510AF
01125-01821 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01821 |
US $4.18 |
||
|
11510B
|
11510B
0122500062 NUT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
0122500062 |
from US $1.67 |
||
|
11520A
|
11520A
01125-01931 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01931 |
US $2.45 |
||
|
11520A
|
11520A
11298-0M000 Bolt9708--01 ~ ; SR18DE.MT |
11298-0M000 |
US $3.46 |
||
|
11520A
|
11520A
01125-01881 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01881 |
US $2.45 |
||
|
11520A
|
11520A
0112501951 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
01125-01991 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01991 |
US $3.46 |
||
|
11520A
|
11520A
01125-01941 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01941 |
US $4.18 |
||
|
11520A
|
11520A
01125-01881 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01881 |
US $2.45 |
||
|
11520A
|
11520A
01125-02741 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-02741 |
US $2.45 |
||
|
11520A
|
11520A
01125-01921 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01921 |
US $4.18 |
||
|
11520AA
|
11520AA
01125-01881 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01881 |
US $2.45 |
||
|
11520AB
|
11520AB
0112501951 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
0112501951 |
US $3.46 |
||
|
11520AC
|
11520AC
01125-01991 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01991 |
US $3.46 |
||
|
11520AD
|
11520AD
01125-01941 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01941 |
US $4.18 |
||
|
11520AE
|
11520AE
01125-01881 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01881 |
US $2.45 |
||
|
11520AE
|
11520AE
01125-01881 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01881 |
US $2.45 |
||
|
11520AF
|
11520AF
01125-02741 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-02741 |
US $2.45 |
||
|
11520AG
|
11520AG
01125-01921 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01921 |
US $4.18 |
||
|
11530A
|
11530A
01125-01911 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01911 |
US $2.45 |
||
|
11530A
|
11530A
54459-0M011 Bolt9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
54459-0M011 |
US $3.46 |
||
|
11530A
|
11530A
01125-01941 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01941 |
US $4.18 |
||
|
11530AA
|
11530AA
54459-0M011 Bolt9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
54459-0M011 |
US $3.46 |
||
|
11530AB
|
11530AB
01125-01941 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01941 |
US $4.18 |
||
|
11550A
|
11550A
01125-01871 BOLT9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11550A
|
11550A
01125-03051
Bolt
9501--01 ~ 9708--01; SR18DE.MT +SR20DE.MT |
01125-03051 |
— | ||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
