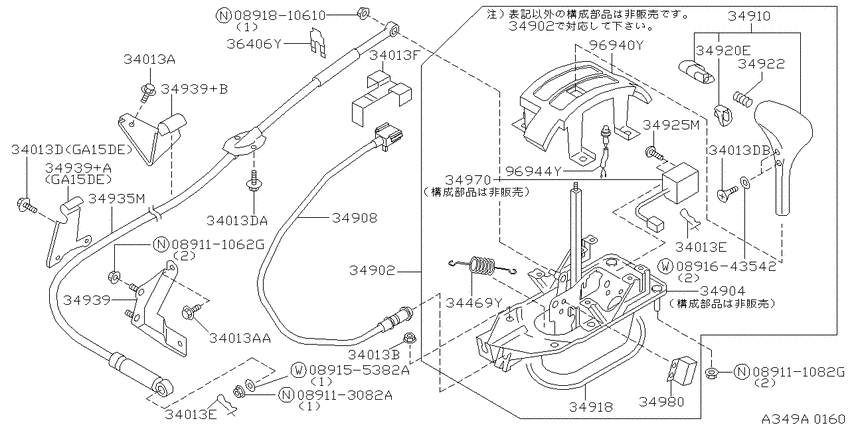

Auto transmission control device (1995-01-01 ~ 1996-11-01; GA15DE.AT +SR18DE.AT +SR20DE.AT) Diagram Nissan PRESEA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- SR18DE
- transmission
- AT
- grade
- CT2
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089113082A
|
089113082A
089113082A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089113082A |
— | ||
|
089155382A
|
089155382A
089155382A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089155382A |
— | ||
|
0891643542
|
0891643542
0891643542
ﾜﾂｼﾔ-,ﾂ-ｽ
|
0891643542 |
— | ||
|
0891810610
|
0891810610
08918-10610 NUTHEX |
08918-10610 |
US $0.50 |
||
|
34013A
|
34013A
54459-0M005 Bolt9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
54459-0M005 |
US $2.45 |
||
|
34013A
|
34013A
01121-03181
BOLT
9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
01121-03181 |
— | ||
| replacement | |||||
|
34013A
|
34013A
65698EQ30A Bolt9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
65698EQ30A |
US $3.06 |
||
|
34013AA
|
34013AA
01121-03181
BOLT
9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
01121-03181 |
— | ||
| replacement | |||||
|
34013AA
|
34013AA
65698EQ30A Bolt9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
65698EQ30A |
US $3.06 |
||
|
34013B
|
34013B
0122500371 NUT9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
0122500371 |
US $1.73 |
||
|
34013D
|
34013D
01436-01391 SCREW9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
01436-01391 |
US $2.74 |
||
|
34013D
|
34013D
0141300051 SCREW9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
0141300051 |
from US $0.37 |
||
|
34013DA
|
34013DA
01436-01391 SCREW9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
01436-01391 |
US $2.74 |
||
|
34013DB
|
34013DB
0141300051 SCREW9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
0141300051 |
from US $0.37 |
||
|
34013E
|
34013E
01532-00015 PIN-SNAP9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
01532-00015 |
US $1.73 |
||
|
34013E
|
34013E
01532-00015 PIN-SNAP9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
01532-00015 |
US $1.73 |
||
|
34013F
|
34013F
48706-71T00 Clip9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
48706-71T00 |
US $2.45 |
||
|
34469Y
|
34469Y
34469-0E800 Spring-Checking9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34469-0E800 |
US $4.90 |
||
|
34902
|
34902
34901-0M021 Device Assy-Transmission Control9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34901-0M021 |
US $661.27 |
||
|
34902
|
34902
34901-25Y01 Device Assy-Transmission Control9708--01 ~ 9809--01; GA15DE.AT +SR18DE.AT +SR20DE |
34901-25Y01 |
US $787.30 |
||
|
34902
|
34902
34901-25Y61 Device Assy-Transmission Control9708--01 ~ 9809--01; &*GA15DE.REFINA.AT +*SR18DE.AT +*SR20DE; ｶﾜﾏｷ ｽﾃｱﾘﾝｸﾞ+ｼﾌﾄﾉﾌﾞ |
34901-25Y61 |
US $883.58 |
||
|
34902
|
34902
34901-25Y66 Device Assy-Transmission Control9910--01 ~ ; ?*GA15DE.REFINA.AT +*SR18DE.REFINA.AT +*SR18DE.REFINA/L +*SR20DE |
34901-25Y66 |
US $883.58 |
||
|
34902
|
34902
349013M101 Device Assy-Transmission Control9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
349013M101 |
US $661.27 |
||
|
34904
|
34904
34904-0M000 Bracket Compl-Control Lever9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34904-0M000 |
US $427.63 |
||
|
34904
|
34904
34904-25Y01 Bracket Compl-Control Lever9708--01 ~ ; GA15DE.AT +SR18DE.AT +SR20DE |
34904-25Y01 |
US $509.76 |
||
|
34904
|
34904
34904-3M101 Bracket Compl-Control Lever9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34904-3M101 |
US $429.05 |
||
|
34908
|
34908
34908-3M100 Cable Assy-Key Inter Lock9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34908-3M100 |
US $61.34 |
||
|
34908
|
34908
34908-40Y00 Cable Assy-Key Inter Lock9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34908-40Y00 |
US $61.20 |
||
|
34910
|
34910
34910-0M021 Knob Assy-Control Lever, Auto9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34910-0M021 |
US $84.53 |
||
|
34910
|
34910
34910-25Y66 Knob Assy-Control Lever, Auto9910--01 ~ ; ?*GA15DE.REFINA.AT +*SR18DE.REFINA.AT +*SR18DE.REFINA/L +*SR20DE |
34910-25Y66 |
US $167.04 |
||
|
34910
|
34910
34910-2J010 Knob Assy-Control Lever, Auto9708--01 ~ 9809--01; &*GA15DE.REFINA.AT +*SR18DE.AT +*SR20DE; ｶﾜﾏｷ ｽﾃｱﾘﾝｸﾞ+ｼﾌﾄﾉﾌﾞ |
34910-2J010 |
US $200.16 |
||
|
34910
|
34910
34910-3J100 Knob Assy-Control Lever, Auto9708--01 ~ 9809--01; GA15DE.AT +SR18DE.AT +SR20DE |
34910-3J100 |
US $92.30 |
||
|
34910
|
34910
34910-3M101 Knob Assy-Control Lever, Auto9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34910-3M101 |
US $84.53 |
||
|
34918
|
34918
34918-0E805 Cover-Dust9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34918-0E805 |
US $26.64 |
||
|
34918
|
34918
34918-3J100 Cover-Dust9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34918-3J100 |
US $20.30 |
||
|
34918
|
34918
34918-3J400 Cover-Dust9910--01 ~ ; ?*GA15DE.REFINA.AT +*SR18DE.REFINA.AT +*SR18DE.REFINA/L +*SR20DE |
34918-3J400 |
US $16.70 |
||
|
34920E
|
34920E
25130-0M021 Switch Assy-Over Drive9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
25130-0M021 |
US $23.76 |
||
|
34920E
|
34920E
25130-0M701 Switch Assy-Over Drive9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
25130-0M701 |
US $23.76 |
||
|
34920E
|
34920E
25130-3J100 Switch Assy-Over Drive9708--01 ~ 9910--01; GA15DE.AT +SR18DE.AT +SR20DE |
25130-3J100 |
US $21.46 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
3492201P00 |
from US $1.81 |
||
|
34925M
|
34925M
34925-64J00 Screw9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34925M
|
34925M
34925-EB30A Screw9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34925-EB30A |
US $1.73 |
||
|
34935M
|
34935M
349350M810 Cable Assy-Control9501--01 ~ 9611--01; SR18DE.AT +SR20DE.AT |
349350M810 |
US $136.08 |
||
|
34935M
|
34935M
34935-3M101 Cable Assy-Control9611--01 ~ 9708--01; SR18DE.AT +SR20DE.AT |
34935-3M101 |
US $136.08 |
||
|
34939
|
34939
34939-0M000 Bracket-Cable Mounting9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34939-0M000 |
US $20.16 |
||
|
34939
|
34939
34939-0M020 Bracket-Cable Mounting9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34939-0M020 |
US $20.16 |
||
|
34939+B
|
34939+B
34939-0M020 Bracket-Cable Mounting9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34939-0M020 |
US $20.16 |
||
|
34970
|
34970
349700M010 Solenoid Assy-Select Lock9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
349700M010 |
US $110.59 |
||
|
34980
|
34980
34980-0M010 Park Position Switch9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
34980-0M010 |
US $73.58 |
||
|
36406Y
|
36406Y
36406-4M400 Plate-Lock9903--01 ~ ; GA15DE.AT +SR18DE.AT +SR20DE |
36406-4M400 |
US $3.46 |
||
| replacement | |||||
|
36406Y
|
36406Y
364064M40A Plate-Lock9903--01 ~ ; GA15DE.AT +SR18DE.AT +SR20DE |
364064M40A |
from US $2.66 |
||
|
36406Y
|
36406Y
36406-54J00 Plate-Lock9501--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
36406-54J00 |
US $4.18 |
||
|
96940Y
|
96940Y
96940-0M000 ｲﾝｼﾞｹ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ｺﾝﾄﾛ-ﾙ9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
96940-0M000 |
US $100.80 |
||
|
96940Y
|
96940Y
969403M101 ｲﾝｼﾞｹ-ﾀ-9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
969403M101 |
US $81.65 |
||
|
96944Y
|
96944Y
96942-0M005 ﾊﾞﾙﾌﾞ,ｲﾝｼﾞｹ-ﾀ-9501--01 ~ 9611--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
96942-0M005 |
US $11.52 |
||
|
96944Y
|
96944Y
969424P000 Bulb-Indicator9611--01 ~ 9708--01; GA15DE.AT +SR18DE.AT +SR20DE.AT |
969424P000 |
US $7.49 |
||
