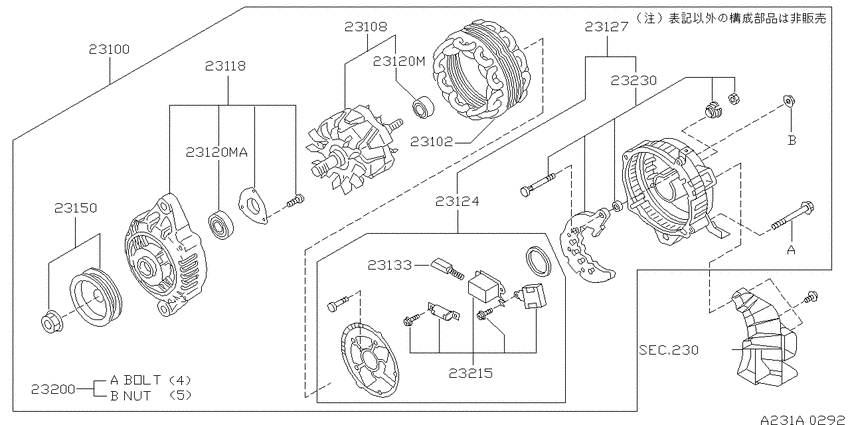

Alternator (1995-01-01 ~ 1997-03-01; 日立; GA15DE) Diagram Nissan PRESEA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- GA15DE
- transmission
- MT
- grade
- CT2
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
230
|
Alternator fitting
230
|
||||
|
230
|
Alternator fitting
230
|
||||
|
230
|
Alternator fitting
230
|
||||
|
230
|
Alternator fitting
230
|
||||
|
23100
|
23100
23100-0M005 Alternator Assy9501--01 ~ 9604--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746E |
23100-0M005 |
US $1,442 |
||
|
23100
|
23100
0122100381 NUT9501--01 ~ ; GA15DE |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-0M005 Stator Assy9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23102-0M005 |
US $417.72 |
||
|
23108
|
23108
23108-0M000 Rotor Assy9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23108-0M000 |
US $416.30 |
||
| replacement | |||||
|
23108
|
23108
23108-4M40A Rotor Assy9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23108-4M40A |
US $416.30 |
||
|
23118
|
23118
23118-0M000 Cover Assy-Front9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23118-0M000 |
US $135.65 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-0M000 Rectifier Assy9501--01 ~ 9604--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746E |
23124-0M000 |
US $497.02 |
||
| replacement | |||||
|
23124
|
23124
23124-0M001 Rectifier Assy9501--01 ~ 9604--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746E |
23124-0M001 |
US $497.02 |
||
|
23124
|
23124
23124-0M001 Rectifier Assy9604--01 ~ 9703--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746G |
23124-0M001 |
US $497.02 |
||
|
23124
|
23124
23124-0M002 Rectifier Assy9703--01 ~ 9910--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746K |
23124-0M002 |
US $497.02 |
||
|
23127
|
23127
23127-0M005 Cover Assy-Rear9501--01 ~ 9703--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746G |
23127-0M005 |
US $744.82 |
||
| replacement | |||||
|
23127
|
23127
23127-0M006 Cover Assy-Rear9501--01 ~ 9703--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746G |
23127-0M006 |
US $744.82 |
||
|
23127
|
23127
23127-0M006 Cover Assy-Rear9703--01 ~ 9910--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746K |
23127-0M006 |
US $744.82 |
||
|
23127
|
23127
23127-0M007 Cover Assy-Rear9910--01 ~ ; GA15DE; ﾋﾀﾁ |
23127-0M007 |
US $746.23 |
||
|
23133
|
23133
23133-0M000 Holder Assy-Brush9501--01 ~ 9604--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746E |
23133-0M000 |
US $50.11 |
||
|
23133
|
23133
23133-0M800 Holder Assy-Brush9604--01 ~ 9703--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746G |
23133-0M800 |
US $50.11 |
||
|
23150
|
23150
23150-0M000 Pulley Assy9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23150-0M000 |
US $134.21 |
||
|
23200
|
23200
23200-0M000 Screw Set9501--01 ~ ; GA15DE; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
||
|
23215
|
23215
23215-0M800 Regulator Assy-Ic9501--01 ~ 9604--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746E |
23215-0M800 |
US $352.58 |
||
|
23215
|
23215
23215-0M801 Regulator Assy-Ic9604--01 ~ 9703--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746G |
23215-0M801 |
US $352.58 |
||
|
23230
|
23230
23230-0M000 Diode Assy9501--01 ~ 9604--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746E |
23230-0M000 |
US $253.44 |
||
|
23230
|
23230
23230-0M001 Diode Assy9604--01 ~ 9703--01; GA15DE; ﾋﾀﾁ P/NO.LR170-746G |
23230-0M001 |
US $253.44 |
||
