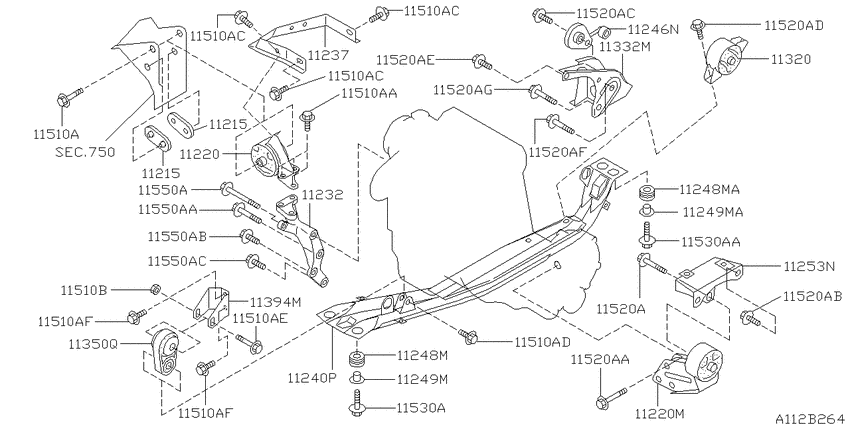

Engine & transmission mounting (1995-01-01 ~ ; GA15DE.MT) Diagram Nissan PRESEA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- GA15DE
- transmission
- MT
- grade
- CT2
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
11215-50Y00 Stopper-Engine Mounting9501--01 ~ ; GA15DE.MT |
11215-50Y00 |
US $12.38 |
||
|
11215
|
11215
11215-50Y00 Stopper-Engine Mounting9501--01 ~ ; GA15DE.MT |
11215-50Y00 |
US $12.38 |
||
|
11220
|
11220
11210-0M000 Insulator Assy-Engine Mounting, Front Rh9501--01 ~ ; GA15DE.MT |
11210-0M000 |
from US $86.54 |
||
|
11220
|
11220
11220-0M000 Insulator Assy-Engine Mounting, Front Lh9501--01 ~ 9910--01; GA15DE.MT |
11220-0M000 |
US $95.04 |
||
|
11220
|
11220
1122050Y00 Insulator Assy-Engine Mounting, Front Lh9910--01 ~ ; GA15DE.MT |
1122050Y00 |
from US $71.54 |
||
|
11220M
|
11220M
11220-0M000 Insulator Assy-Engine Mounting, Front Lh9501--01 ~ 9910--01; GA15DE.MT |
11220-0M000 |
US $95.04 |
||
|
11220M
|
11220M
1122050Y00 Insulator Assy-Engine Mounting, Front Lh9910--01 ~ ; GA15DE.MT |
1122050Y00 |
from US $71.54 |
||
|
11232
|
11232
11231-0M000 Bracket-Engine Mounting9501--01 ~ ; GA15DE.MT |
11231-0M000 |
US $91.73 |
||
|
11237
|
11237
11237-0M000 Stay-Engine Mounting, Rh9501--01 ~ ; GA15DE.MT |
11237-0M000 |
US $37.01 |
||
|
11240P
|
11240P
11240-0M300 Member Assy-Engine Mounting9501--01 ~ ; GA15DE.MT |
11240-0M300 |
US $152.64 |
||
|
11246N
|
11246N
11246-0M000 Damper Assy-Mass9501--01 ~ ; GA15DE.MT |
11246-0M000 |
US $47.81 |
||
|
11248M
|
11248M
11248-0M900 Pad-Engine Mounting Member9501--01 ~ ; GA15DE.MT |
11248-0M900 |
from US $6.70 |
||
|
11248M
|
11248M
11248-50Y05 Pad-Engine Mounting Member9501--01 ~ ; GA15DE.MT |
11248-50Y05 |
from US $5.27 |
||
|
11248MA
|
11248MA
11248-50Y05 Pad-Engine Mounting Member9501--01 ~ ; GA15DE.MT |
11248-50Y05 |
from US $5.27 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9501--01 ~ ; GA15DE.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249M
|
11249M
11249-50Y00 Collar-Engine Mounting9501--01 ~ ; GA15DE.MT |
11249-50Y00 |
from US $1.67 |
||
|
11249MA
|
11249MA
11249-50Y00 Collar-Engine Mounting9501--01 ~ ; GA15DE.MT |
11249-50Y00 |
from US $1.67 |
||
|
11253N
|
11253N
11253-50Y01 Bracket-Engine Mounting, Lh9501--01 ~ ; GA15DE.MT |
11253-50Y01 |
US $72.43 |
||
|
11320
|
11320
11320-0M002 Insulator-Engine Mounting, Rear9501--01 ~ ; GA15DE.MT |
11320-0M002 |
US $95.10 |
||
|
11332M
|
11332M
11332-0M000 Bracket-Engine Mounting, Rear9501--01 ~ ; GA15DE.MT |
11332-0M000 |
US $97.49 |
||
|
11350Q
|
11350Q
11350-41B00 Buffer Assy-Engine Mounting, Rear9501--01 ~ ; GA15DE.MT |
11350-41B00 |
from US $42.92 |
||
|
11394M
|
11394M
11356-0M001 Stopper-Engine Mounting, Rear9501--01 ~ ; GA15DE.MT |
11356-0M001 |
US $12.67 |
||
|
11510A
|
11510A
01125-01991 BOLT9501--01 ~ ; GA15DE.MT |
01125-01991 |
US $3.46 |
||
|
11510A
|
11510A
01125-01821 BOLT9501--01 ~ ; GA15DE.MT |
01125-01821 |
US $4.18 |
||
|
11510A
|
11510A
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510A
|
11510A
01125-01971 BOLT9501--01 ~ ; GA15DE.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11510A
|
11510A
01125-03081 BOLT9501--01 ~ ; GA15DE.MT |
01125-03081 |
US $3.46 |
||
|
11510A
|
11510A
01125-01981 BOLT9501--01 ~ ; GA15DE.MT |
01125-01981 |
US $2.45 |
||
|
11510A
|
11510A
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510AA
|
11510AA
01125-01821 BOLT9501--01 ~ ; GA15DE.MT |
01125-01821 |
US $4.18 |
||
|
11510AC
|
11510AC
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510AC
|
11510AC
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510AC
|
11510AC
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510AD
|
11510AD
01125-01971 BOLT9501--01 ~ ; GA15DE.MT |
01125-01971 |
US $3.46 |
||
| replacement | |||||
|
11510AD
|
11510AD
01125-03081 BOLT9501--01 ~ ; GA15DE.MT |
01125-03081 |
US $3.46 |
||
|
11510AE
|
11510AE
01125-01981 BOLT9501--01 ~ ; GA15DE.MT |
01125-01981 |
US $2.45 |
||
|
11510AF
|
11510AF
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510AF
|
11510AF
01125-01801 BOLT9501--01 ~ ; GA15DE.MT |
01125-01801 |
US $4.18 |
||
|
11510B
|
11510B
0122500062 NUT9501--01 ~ ; GA15DE.MT |
0122500062 |
from US $1.67 |
||
|
11520A
|
11520A
01125-01931 BOLT9501--01 ~ 9708--01; GA15DE.MT |
01125-01931 |
US $2.45 |
||
|
11520A
|
11520A
11298-0M000 Bolt9708--01 ~ ; GA15DE.MT |
11298-0M000 |
US $3.46 |
||
|
11520A
|
11520A
01125-01871 BOLT9501--01 ~ ; GA15DE.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11520A
|
11520A
01125-03051
Bolt
9501--01 ~ ; GA15DE.MT |
01125-03051 |
— | ||
|
11520A
|
11520A
0112501951 BOLT9501--01 ~ ; GA15DE.MT |
0112501951 |
US $3.46 |
||
|
11520A
|
11520A
01125-02011 BOLT9501--01 ~ ; GA15DE.MT |
01125-02011 |
US $9.36 |
||
|
11520A
|
11520A
01125-01941 BOLT9501--01 ~ ; GA15DE.MT |
01125-01941 |
US $4.18 |
||
|
11520A
|
11520A
01125-01851 BOLT9501--01 ~ ; GA15DE.MT |
01125-01851 |
US $4.18 |
||
|
11520A
|
11520A
01125-02741 BOLT9501--01 ~ ; GA15DE.MT |
01125-02741 |
US $2.45 |
||
|
11520A
|
11520A
01125-01851 BOLT9501--01 ~ ; GA15DE.MT |
01125-01851 |
US $4.18 |
||
|
11520AA
|
11520AA
01125-01871 BOLT9501--01 ~ ; GA15DE.MT |
01125-01871 |
US $2.45 |
||
| replacement | |||||
|
11520AA
|
11520AA
01125-03051
Bolt
9501--01 ~ ; GA15DE.MT |
01125-03051 |
— | ||
|
11520AB
|
11520AB
0112501951 BOLT9501--01 ~ ; GA15DE.MT |
0112501951 |
US $3.46 |
||
|
11520AC
|
11520AC
01125-02011 BOLT9501--01 ~ ; GA15DE.MT |
01125-02011 |
US $9.36 |
||
|
11520AD
|
11520AD
01125-01941 BOLT9501--01 ~ ; GA15DE.MT |
01125-01941 |
US $4.18 |
||
|
11520AE
|
11520AE
01125-01851 BOLT9501--01 ~ ; GA15DE.MT |
01125-01851 |
US $4.18 |
||
|
11520AF
|
11520AF
01125-02741 BOLT9501--01 ~ ; GA15DE.MT |
01125-02741 |
US $2.45 |
||
|
11520AG
|
11520AG
01125-01851 BOLT9501--01 ~ ; GA15DE.MT |
01125-01851 |
US $4.18 |
||
|
11530A
|
11530A
01125-01911 BOLT9501--01 ~ ; GA15DE.MT |
01125-01911 |
US $2.45 |
||
|
11530A
|
11530A
54459-0M011 Bolt9501--01 ~ ; GA15DE.MT |
54459-0M011 |
US $3.46 |
||
|
11530AA
|
11530AA
54459-0M011 Bolt9501--01 ~ ; GA15DE.MT |
54459-0M011 |
US $3.46 |
||
|
11550A
|
11550A
01121-07061 BOLT9501--01 ~ ; GA15DE.MT |
01121-07061 |
US $3.46 |
||
|
11550A
|
11550A
01121-07051 BOLT9501--01 ~ ; GA15DE.MT |
01121-07051 |
US $3.46 |
||
|
11550A
|
11550A
01121-07041 BOLT9501--01 ~ ; GA15DE.MT |
01121-07041 |
US $4.30 |
||
|
11550A
|
11550A
01125-03211 BOLT9501--01 ~ ; GA15DE.MT |
01125-03211 |
US $3.31 |
||
|
11550AA
|
11550AA
01121-07051 BOLT9501--01 ~ ; GA15DE.MT |
01121-07051 |
US $3.46 |
||
|
11550AB
|
11550AB
01121-07041 BOLT9501--01 ~ ; GA15DE.MT |
01121-07041 |
US $4.30 |
||
|
11550AC
|
11550AC
01125-03211 BOLT9501--01 ~ ; GA15DE.MT |
01125-03211 |
US $3.31 |
||
|
