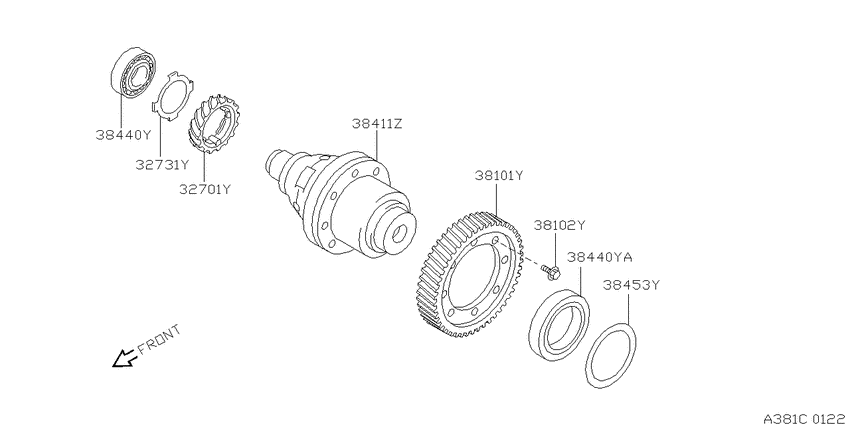

Front final drive (1995-01-01 ~ 1999-10-01; ﾋﾞｽｶｽ ﾀｲﾌﾟ(RS5F30A/31V); GA15DE.MT) Diagram Nissan PRESEA
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- GA15DE
- transmission
- MT
- grade
- CT2
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-01M00 Gear-Drive, Speedometer9501--01 ~ ; GA15DE.MT |
32701-01M00 |
US $19.44 |
||
|
32701Y
|
32701Y
32701-D2100 Gear-Drive, Speedometer9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
32701-D2100 |
US $19.44 |
||
|
32731Y
|
32731Y
38431-D2100 Stopper-Speedometer Drive Gear9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38431-D2100 |
US $4.75 |
||
|
32731Y
|
32731Y
38431-M8003 Stopper-Speedometer Drive Gear9501--01 ~ ; GA15DE.MT |
38431-M8003 |
US $2.88 |
||
|
38101Y
|
38101Y
38101-50Y05 Gear-Final Drive9501--01 ~ ; GA15DE.MT |
38101-50Y05 |
US $201.60 |
||
|
38101Y
|
38101Y
38101-64Y06 Gear-Final Drive9512--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38101-64Y06 |
US $201.60 |
||
|
38101Y
|
38101Y
38101-67M06 Gear-Final Drive9501--01 ~ 9512--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38101-67M06 |
US $198.72 |
||
|
38102Y
|
38102Y
38102-6J000 Bolt-Drive Gear9807--01 ~ ; GA15DE.MT |
38102-6J000 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-76M00 Bolt-Drive Gear9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38102-76M00 |
US $3.46 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9501--01 ~ 9807--01; GA15DE.MT |
38102-M8001 |
US $2.45 |
||
|
38411Z
|
38411Z
38411-78M11 Case Compl-Differential, Viscous9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38411-78M11 |
US $1,932 |
||
|
38440Y
|
38440Y
384405U401 Bearing-Differential Side0012--01 ~ 0112--01; GA15DE.MT |
384405U401 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-5U402 Bearing-Differential Side0112--01 ~ ; GA15DE.MT |
38440-5U402 |
US $35.14 |
||
|
38440Y
|
38440Y
38440-D2100 Bearing-Counter Shaft, Lh9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38440-D2100 |
US $35.14 |
||
|
38440Y
|
38440Y
4021085000 BEARING-INNER,REAR AXLE9501--01 ~ 0012--01; GA15DE.MT |
4021085000 |
from US $28.55 |
||
|
38440Y
|
38440Y
38440-76M00 Bearing-Differential Side9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38440-76M00 |
US $187.20 |
||
|
38440YA
|
38440YA
38440-76M00 Bearing-Differential Side9501--01 ~ 9708--01; *GA15DE.MT; ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38440-76M00 |
US $187.20 |
||
|
38453Y
|
38453Y
38454-76M00 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.44 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M00 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M01 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.48 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M01 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M02 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.56 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M02 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M03 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.60 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M03 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M04 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.64 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M04 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M05 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.68 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M05 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M06 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.72 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M06 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M07 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.76 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M07 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M11 Shim-Adjust, Side Bearing9501--01 ~ 9708--01; *GA15DE.MT; ｾﾝﾀｸ T=0.40 ﾉﾝｽﾘﾂﾌﾟﾃﾞﾌ+ABS |
38454-76M11 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-M8000 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.44 |
38454-M8000 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8001 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.48 |
38454-M8001 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8003 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.56 |
38454-M8003 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8004 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.60 |
38454-M8004 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8005 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.64 |
38454-M8005 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8006 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.68 |
38454-M8006 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8007 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.72 |
38454-M8007 |
from US $4.75 |
||
|
38453Y
|
38453Y
38454-M8008 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.76 |
38454-M8008 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8009 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.80 |
38454-M8009 |
US $4.75 |
||
|
38453Y
|
38453Y
38454-M8010 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.84 |
38454-M8010 |
US $6.34 |
||
|
38453Y
|
38453Y
38454-M8011 Shim-Adjust, Side Bearing9501--01 ~ 9910--01; GA15DE.MT; ｾﾝﾀｸ T=0.88 |
38454-M8011 |
US $6.34 |
