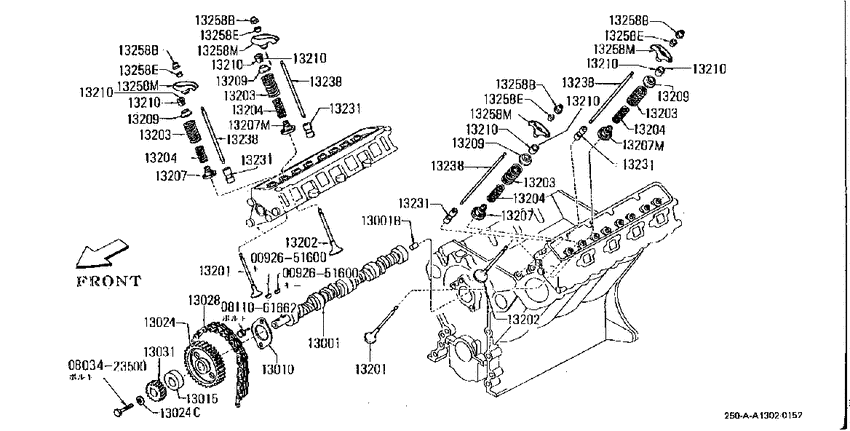

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1975-04-01 ~ ; Y44E) Diagram Nissan PRESIDENT
- Year
- 1975 - 1977
- Sales region
- Japan
- grade
- D
- seat
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092651600
|
0092651600
0092651600 KEY |
0092651600 |
from US $2.44 |
||
|
0092651600
|
0092651600
0092651600 KEY |
0092651600 |
from US $2.44 |
||
|
0811061662
|
0811061662
08110-61662
Bolt-hexagon
|
08110-61662 |
— | ||
|
13001
|
13001
13001-F1700 Camshaft Assy7504--01 ~ ; Y44E |
13001-F1700 |
US $1,526 |
||
|
13001
|
13001
11021-13200 Plug-Taper, Camshaft7504--01 ~ ; Y44E |
11021-13200 |
US $4.18 |
||
|
13001B
|
13001B
11021-13200 Plug-Taper, Camshaft7504--01 ~ ; Y44E |
11021-13200 |
US $4.18 |
||
|
13010
|
13010
13010-65000 Plate-Locating, Camshaft7504--01 ~ ; Y44E |
13010-65000 |
US $18.29 |
||
|
13015
|
13015
13402-65000 Cam Assy-Fuel Pump7504--01 ~ ; Y44E |
13402-65000 |
US $20.30 |
||
|
13024
|
13024
13024-65000 Sprocket-Camshaft7504--01 ~ ; Y44E |
13024-65000 |
US $158.40 |
||
|
13024
|
13024
13030-F1700 Washer-Plain7504--01 ~ ; Y44E |
13030-F1700 |
US $11.38 |
||
|
13024C
|
13024C
13030-F1700 Washer-Plain7504--01 ~ ; Y44E |
13030-F1700 |
US $11.38 |
||
|
13028
|
13028
13028-65000 Chain-Timing Camshaft7504--01 ~ ; Y44E |
13028-65000 |
US $348.34 |
||
|
13031
|
13031
13401-65000 Gear-Distributor Drive7504--01 ~ ; Y44E |
13401-65000 |
US $47.81 |
||
|
13201
|
13201
13201-65000 Valve-Intake7504--01 ~ ; Y44E |
13201-65000 |
US $39.02 |
||
|
13201
|
13201
13201-65000 Valve-Intake7504--01 ~ ; Y44E |
13201-65000 |
US $39.02 |
||
|
13202
|
13202
13202-65000 Valve-Exhaust7504--01 ~ ; Y44E |
13202-65000 |
US $75.89 |
||
|
13202
|
13202
13202-65000 Valve-Exhaust7504--01 ~ ; Y44E |
13202-65000 |
US $75.89 |
||
|
13203
|
13203
13203-E4100 Spring-Valve, Outer7504--01 ~ 8209--01; Y44E |
13203-E4100 |
US $6.79 |
||
|
13203
|
13203
13203-F2000 Spring-Valve, Outer8210--01 ~ ; Y44E |
13203-F2000 |
US $9.43 |
||
|
13203
|
13203
13203-E4100 Spring-Valve, Outer7504--01 ~ 8209--01; Y44E |
13203-E4100 |
US $6.79 |
||
|
13203
|
13203
13203-F2000 Spring-Valve, Outer8210--01 ~ ; Y44E |
13203-F2000 |
US $9.43 |
||
|
13203
|
13203
13203-E4100 Spring-Valve, Outer7504--01 ~ 8209--01; Y44E |
13203-E4100 |
US $6.79 |
||
|
13203
|
13203
13203-F2000 Spring-Valve, Outer8210--01 ~ ; Y44E |
13203-F2000 |
US $9.43 |
||
|
13203
|
13203
13203-E4100 Spring-Valve, Outer7504--01 ~ 8209--01; Y44E |
13203-E4100 |
US $6.79 |
||
|
13203
|
13203
13203-F2000 Spring-Valve, Outer8210--01 ~ ; Y44E |
13203-F2000 |
US $9.43 |
||
|
13204
|
13204
13204-23000 Spring-Valve, Inner7504--01 ~ ; Y44E |
13204-23000 |
US $4.71 |
||
|
13204
|
13204
13204-23000 Spring-Valve, Inner7504--01 ~ ; Y44E |
13204-23000 |
US $4.71 |
||
|
13204
|
13204
13204-23000 Spring-Valve, Inner7504--01 ~ ; Y44E |
13204-23000 |
US $4.71 |
||
|
13204
|
13204
13204-23000 Spring-Valve, Inner7504--01 ~ ; Y44E |
13204-23000 |
US $4.71 |
||
|
13207
|
13207
1320766700 Seal-Oil, Valve7504--01 ~ 8501--01; Y44E; ｲﾝﾃ-ｸ |
1320766700 |
US $4.57 |
||
|
13207
|
13207
13207-65001 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
13207-65001 |
US $16.13 |
||
| replacement | |||||
|
13207
|
13207
1320766700 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207
|
13207
1320766700 Seal-Oil, Valve8210--01 ~ ; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207
|
13207
1320766700 Seal-Oil, Valve7504--01 ~ 8501--01; Y44E; ｲﾝﾃ-ｸ |
1320766700 |
US $4.57 |
||
|
13207
|
13207
13207-65001 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
13207-65001 |
US $16.13 |
||
| replacement | |||||
|
13207
|
13207
1320766700 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207
|
13207
1320766700 Seal-Oil, Valve8210--01 ~ ; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207M
|
13207M
13207-65001 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
13207-65001 |
US $16.13 |
||
| replacement | |||||
|
13207M
|
13207M
1320766700 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207M
|
13207M
1320766700 Seal-Oil, Valve8210--01 ~ ; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207M
|
13207M
13207-65001 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
13207-65001 |
US $16.13 |
||
| replacement | |||||
|
13207M
|
13207M
1320766700 Seal-Oil, Valve7504--01 ~ 8209--01; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13207M
|
13207M
1320766700 Seal-Oil, Valve8210--01 ~ ; Y44E; ｴｷﾞｿﾞ-ｽﾄ |
1320766700 |
US $4.57 |
||
|
13209
|
13209
13209-08000 Retainer-valve spring8501--01 ~ ; Y44E |
13209-08000 |
US $5.90 |
||
|
13209
|
13209
13209-78200 Retainer-valve spring7504--01 ~ 8501--01; Y44E |
13209-78200 |
US $4.18 |
||
|
13209
|
13209
13209-08000 Retainer-valve spring8501--01 ~ ; Y44E |
13209-08000 |
US $5.90 |
||
|
13209
|
13209
13209-78200 Retainer-valve spring7504--01 ~ 8501--01; Y44E |
13209-78200 |
US $4.18 |
||
|
13209
|
13209
13209-08000 Retainer-valve spring8501--01 ~ ; Y44E |
13209-08000 |
US $5.90 |
||
|
13209
|
13209
13209-78200 Retainer-valve spring7504--01 ~ 8501--01; Y44E |
13209-78200 |
US $4.18 |
||
|
13209
|
13209
13209-08000 Retainer-valve spring8501--01 ~ ; Y44E |
13209-08000 |
US $5.90 |
||
|
13209
|
13209
13209-78200 Retainer-valve spring7504--01 ~ 8501--01; Y44E |
13209-78200 |
US $4.18 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13210
|
13210
13210-12200 Collet-Valve Spring7504--01 ~ 8501--01; Y44E |
13210-12200 |
US $1.58 |
||
|
13210
|
13210
13210-B8500 Collet-Valve Spring8501--01 ~ ; Y44E |
13210-B8500 |
US $2.16 |
||
|
13231
|
13231
13231F1700
Lifter-Valve
7504--01 ~ ; Y44E |
13231F1700 |
— | ||
|
13231
|
13231
13231F1700
Lifter-Valve
7504--01 ~ ; Y44E |
13231F1700 |
— | ||
|
13231
|
13231
13231F1700
Lifter-Valve
7504--01 ~ ; Y44E |
13231F1700 |
— | ||
|
13231
|
13231
13231F1700
Lifter-Valve
7504--01 ~ ; Y44E |
13231F1700 |
— | ||
|
13238
|
13238
13238-65000 Rod-Push7504--01 ~ ; Y44E |
13238-65000 |
US $15.41 |
||
|
13238
|
13238
13238-65000 Rod-Push7504--01 ~ ; Y44E |
13238-65000 |
US $15.41 |
||
|
13238
|
13238
13238-65000 Rod-Push7504--01 ~ ; Y44E |
13238-65000 |
US $15.41 |
||
|
13238
|
13238
13238-65000 Rod-Push7504--01 ~ ; Y44E |
13238-65000 |
US $15.41 |
||
|
13258B
|
13258B
13288-65000 Nut-Adjust, Valve Rocker7504--01 ~ ; Y44E |
13288-65000 |
US $2.45 |
||
|
13258B
|
13258B
13288-65000 Nut-Adjust, Valve Rocker7504--01 ~ ; Y44E |
13288-65000 |
US $2.45 |
||
|
13258B
|
13258B
13288-65000 Nut-Adjust, Valve Rocker7504--01 ~ ; Y44E |
13288-65000 |
US $2.45 |
||
|
13258B
|
13258B
13288-65000 Nut-Adjust, Valve Rocker7504--01 ~ ; Y44E |
13288-65000 |
US $2.45 |
||
|
13258E
|
13258E
13253-65000 Joint-Ball, Valve Rocker7504--01 ~ ; Y44E |
13253-65000 |
US $4.90 |
||
|
13258E
|
13258E
13253-65000 Joint-Ball, Valve Rocker7504--01 ~ ; Y44E |
13253-65000 |
US $4.90 |
||
|
13258E
|
13258E
13253-65000 Joint-Ball, Valve Rocker7504--01 ~ ; Y44E |
13253-65000 |
US $4.90 |
||
|
13258E
|
13258E
13253-65000 Joint-Ball, Valve Rocker7504--01 ~ ; Y44E |
13253-65000 |
US $4.90 |
||
|
13258M
|
13258M
13258-65001 Rocker-Valve7504--01 ~ ; Y44E |
13258-65001 |
US $53.14 |
||
|
13258M
|
13258M
13258-65001 Rocker-Valve7504--01 ~ ; Y44E |
13258-65001 |
US $53.14 |
||
|
13258M
|
13258M
13258-65001 Rocker-Valve7504--01 ~ ; Y44E |
13258-65001 |
US $53.14 |
||
|
13258M
|
13258M
13258-65001 Rocker-Valve7504--01 ~ ; Y44E |
13258-65001 |
US $53.14 |
||
