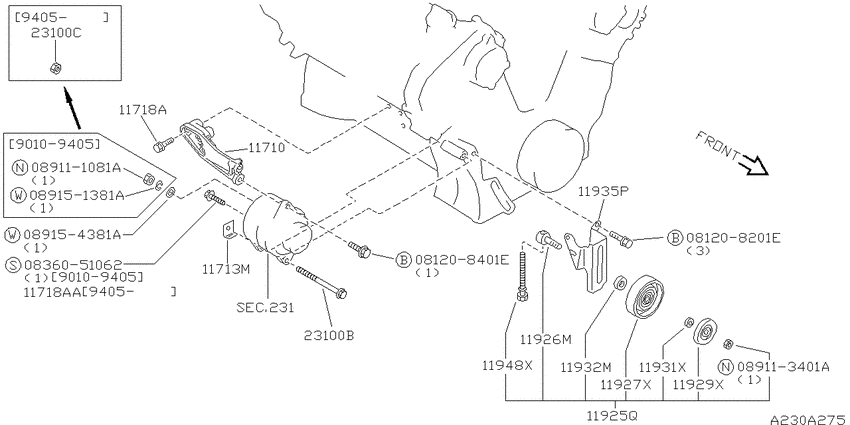

Alternator fitting (1990-10-01 ~ 1994-05-01; VH45D) Diagram Nissan PRESIDENT
- Year
- 1992 - 1994
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/S
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
0836051062
|
0836051062
08360-51062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51062 |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
089113401A
|
089113401A
089113401A NUTHEX |
089113401A |
US $0.63 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.59 |
||
|
11710
|
11710
11710-60U00 Bracket-Alternator9010--01 ~ 9405--01; VH45D |
11710-60U00 |
US $81.36 |
||
|
11713M
|
11713M
23188-V7201 Nut-Stopper, Alternator9010--01 ~ 9405--01; VH45D |
23188-V7201 |
US $6.34 |
||
|
11718A
|
11718A
01121-04651 BOLT9010--01 ~ 9405--01; VH45D; M8 X 45 |
01121-04651 |
US $3.46 |
||
|
11925Q
|
11925Q
11925-60U01 Pulley Assy-Idler9010--01 ~ 9405--01; VH45D |
11925-60U01 |
US $132.34 |
||
|
11926M
|
11926M
11928-60U01 Shaft-Idler Pulley9010--01 ~ 9405--01; VH45D |
11928-60U01 |
US $18.72 |
||
|
11927X
|
11927X
11927-60U01 Pulley Assy9010--01 ~ 9405--01; VH45D |
11927-60U01 |
US $79.34 |
||
|
11929X
|
11929X
1192942L00 Cover-Idler Pulley9010--01 ~ 9405--01; VH45D |
1192942L00 |
US $9.22 |
||
|
11931X
|
11931X
1193142L00 Spacer-Idler Pulley9010--01 ~ 9405--01; VH45D |
1193142L00 |
US $5.04 |
||
|
11932M
|
11932M
11932-60U01 Collar-Idler Pulley9010--01 ~ 9405--01; VH45D |
11932-60U01 |
US $7.63 |
||
|
11935P
|
11935P
11926-60U00 Bracket-Idler Pulley9010--01 ~ 9405--01; VH45D |
11926-60U00 |
US $30.24 |
||
|
11948X
|
11948X
11948-60U01 Bolt-Adjust, Idler Pulley9010--01 ~ 9405--01; VH45D |
11948-60U01 |
US $11.66 |
||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
23100B
|
23100B
1191660U04 Bolt9010--01 ~ 9405--01; VH45D; M10 X 125 |
1191660U04 |
US $6.19 |
||
