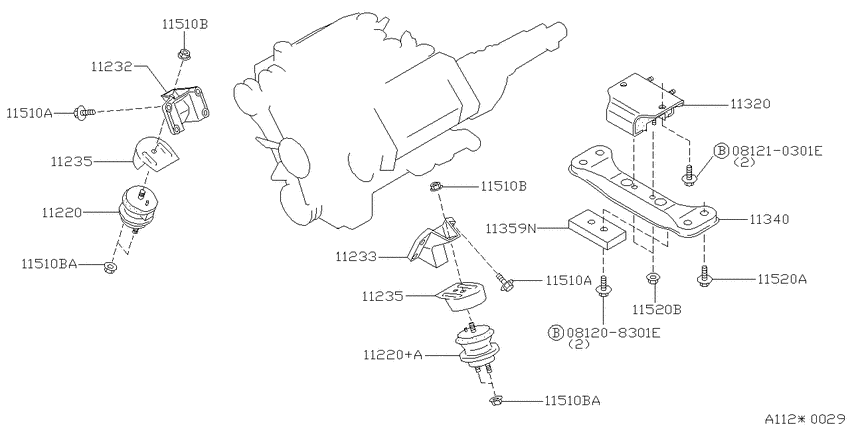

Engine & transmission mounting (1990-10-01 ~ 1994-05-01; VH45D) Diagram Nissan PRESIDENT
- Year
- 1992 - 1994
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/S
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
11220
|
11220
1122060U11
Insulator-Engine Mounting, Front
9010--01 ~ 9405--01; VH45D |
1122060U11 |
— | ||
|
11220
|
11220
1122060U11
Insulator-Engine Mounting, Front
9010--01 ~ 9405--01; VH45D |
1122060U11 |
— | ||
|
11220+A
|
11220+A
1122060U11
Insulator-Engine Mounting, Front
9010--01 ~ 9405--01; VH45D |
1122060U11 |
— | ||
|
11232
|
11232
11232-60U01 Bracket-Engine Mounting, Rh9010--01 ~ 9304--01; VH45D |
11232-60U01 |
US $67.25 |
||
|
11232
|
11232
11232-60U02 Bracket-Engine Mounting, Rh9304--01 ~ 9405--01; VH45D |
11232-60U02 |
US $74.74 |
||
|
11233
|
11233
11233-60U01 Bracket-Engine Mounting, Lh9010--01 ~ 9304--01; VH45D |
11233-60U01 |
US $67.25 |
||
|
11233
|
11233
11233-60U02 Bracket-Engine Mounting, Lh9304--01 ~ 9405--01; VH45D |
11233-60U02 |
US $74.74 |
||
|
11235
|
11235
11284-60U01 Plate-Heat Shield9010--01 ~ 9405--01; VH45D |
11284-60U01 |
US $12.96 |
||
|
11235
|
11235
11284-60U01 Plate-Heat Shield9010--01 ~ 9405--01; VH45D |
11284-60U01 |
US $12.96 |
||
|
11320
|
11320
11320-60U00 Insulator-Engine Mounting, Rear9010--01 ~ 9101--01; VH45D |
11320-60U00 |
US $65.23 |
||
|
11320
|
11320
11320-60U01
Insulator-Engine Mounting, Rear
9101--01 ~ 9405--01; VH45D |
11320-60U01 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-60U02
Insulator-Engine Mounting, Rear
9101--01 ~ 9405--01; VH45D |
11320-60U02 |
— | ||
|
11340
|
11340
11330-66U00 Member Assy-Engine Mounting, Rear9010--01 ~ 9405--01; VH45D |
11330-66U00 |
US $169.92 |
||
|
11359N
|
11359N
11359-66U00 Mass-Engine Mounting, Rear9010--01 ~ 9201--01; VH45D |
11359-66U00 |
US $71.14 |
||
|
11510A
|
11510A
0112104241 BOLT9010--01 ~ 9208--01; VH45D |
0112104241 |
US $2.45 |
||
|
11510A
|
11510A
01125-03151 BOLT9208--01 ~ 9405--01; VH45D |
01125-03151 |
US $3.46 |
||
|
11510A
|
11510A
0112104241 BOLT9010--01 ~ 9208--01; VH45D |
0112104241 |
US $2.45 |
||
|
11510A
|
11510A
01125-03151 BOLT9208--01 ~ 9405--01; VH45D |
01125-03151 |
US $3.46 |
||
|
11510B
|
11510B
01225-00671 NUT9010--01 ~ 9405--01; VH45D |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
0122500521 NUT9010--01 ~ 9405--01; VH45D |
0122500521 |
from US $1.07 |
||
|
11510B
|
11510B
01225-00671 NUT9010--01 ~ 9405--01; VH45D |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
0122500521 NUT9010--01 ~ 9405--01; VH45D |
0122500521 |
from US $1.07 |
||
|
11510BA
|
11510BA
0122500521 NUT9010--01 ~ 9405--01; VH45D |
0122500521 |
from US $1.07 |
||
|
11510BA
|
11510BA
0122500521 NUT9010--01 ~ 9405--01; VH45D |
0122500521 |
from US $1.07 |
||
|
11520A
|
11520A
0112501411 BOLT9010--01 ~ 9405--01; VH45D |
0112501411 |
US $2.68 |
||
|
11520B
|
11520B
0122500481
NUT
9010--01 ~ 9405--01; VH45D |
0122500481 |
— | ||
