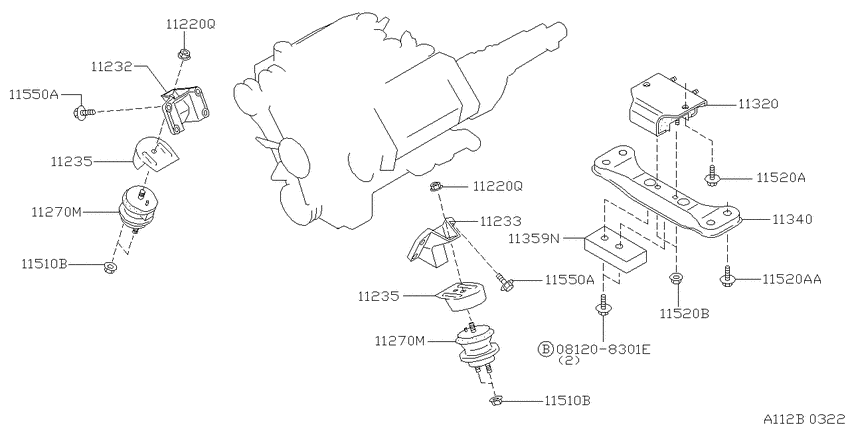

Engine & transmission mounting (1994-05-01 ~ 1998-12-01; VH45D) Diagram Nissan PRESIDENT
- Year
- 1994 - 1998
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/S
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
11220Q
|
11220Q
01225-00671 NUT9405--01 ~ 9812--01; VH45D |
01225-00671 |
US $5.42 |
||
|
11220Q
|
11220Q
01225-00671 NUT9405--01 ~ 9812--01; VH45D |
01225-00671 |
US $5.42 |
||
|
11232
|
11232
11232-60U02 Bracket-Engine Mounting, Rh9405--01 ~ 9812--01; VH45D |
11232-60U02 |
US $74.74 |
||
|
11233
|
11233
11233-60U02 Bracket-Engine Mounting, Lh9405--01 ~ 9812--01; VH45D |
11233-60U02 |
US $74.74 |
||
|
11235
|
11235
11284-60U01 Plate-Heat Shield9405--01 ~ 9812--01; VH45D |
11284-60U01 |
US $12.96 |
||
|
11235
|
11235
11284-60U01 Plate-Heat Shield9405--01 ~ 9812--01; VH45D |
11284-60U01 |
US $12.96 |
||
|
11270M
|
11270M
1122060U11
Insulator-Engine Mounting, Front
9405--01 ~ 9709--01; VH45D |
1122060U11 |
— | ||
|
11270M
|
11270M
1122060U24 Insulator Assy-Engine Mounting, Front9709--01 ~ 9812--01; VH45D |
1122060U24 |
US $87.12 |
||
|
11270M
|
11270M
1122060U11
Insulator-Engine Mounting, Front
9405--01 ~ 9709--01; VH45D |
1122060U11 |
— | ||
|
11270M
|
11270M
1122060U24 Insulator Assy-Engine Mounting, Front9709--01 ~ 9812--01; VH45D |
1122060U24 |
US $87.12 |
||
|
11320
|
11320
11320-60U01
Insulator-Engine Mounting, Rear
9405--01 ~ 9709--01; VH45D |
11320-60U01 |
— | ||
| replacement | |||||
|
11320
|
11320
11320-60U02
Insulator-Engine Mounting, Rear
9405--01 ~ 9709--01; VH45D |
11320-60U02 |
— | ||
|
11320
|
11320
11320-60U02
Insulator-Engine Mounting, Rear
9709--01 ~ 9812--01; VH45D |
11320-60U02 |
— | ||
|
11340
|
11340
11330-66U00 Member Assy-Engine Mounting, Rear9405--01 ~ 9812--01; VH45D |
11330-66U00 |
US $169.92 |
||
|
11359N
|
11359N
1135966U01 Mass-Engine Mounting, Rear9405--01 ~ 9812--01; VH45D |
1135966U01 |
US $49.54 |
||
|
11510B
|
11510B
0122500521 NUT9405--01 ~ 9812--01; VH45D |
0122500521 |
from US $1.07 |
||
|
11510B
|
11510B
0122500521 NUT9405--01 ~ 9812--01; VH45D |
0122500521 |
from US $1.07 |
||
|
11520A
|
11520A
01121-03441 BOLT9405--01 ~ 9812--01; VH45D |
01121-03441 |
US $9.36 |
||
|
11520A
|
11520A
0112501411 BOLT9405--01 ~ 9812--01; VH45D |
0112501411 |
US $2.68 |
||
|
11520AA
|
11520AA
0112501411 BOLT9405--01 ~ 9812--01; VH45D |
0112501411 |
US $2.68 |
||
|
11520B
|
11520B
0122500481
NUT
9405--01 ~ 9812--01; VH45D |
0122500481 |
— | ||
|
11550A
|
11550A
01125-03151 BOLT9405--01 ~ 9812--01; VH45D |
01125-03151 |
US $3.46 |
||
|
11550A
|
11550A
01125-03151 BOLT9405--01 ~ 9812--01; VH45D |
01125-03151 |
US $3.46 |
||
