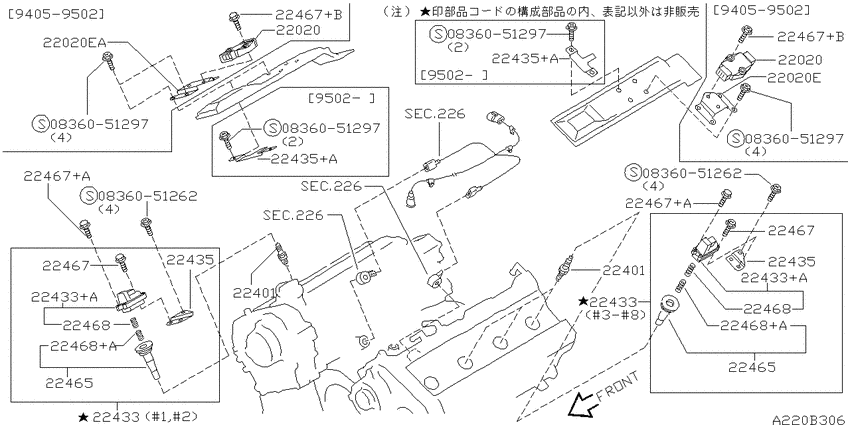

Ignition System (1994-05-01 ~ 1998-12-01; VH45D) Diagram Nissan PRESIDENT
- Year
- 1994 - 1998
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/S
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836051262
|
0836051262
08360-51262
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51262 |
— | ||
|
0836051262
|
0836051262
08360-51262
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51262 |
— | ||
|
0836051297
|
0836051297
08360-51297
SCREWMACHINE
|
08360-51297 |
— | ||
|
0836051297
|
0836051297
08360-51297
SCREWMACHINE
|
08360-51297 |
— | ||
|
0836051297
|
0836051297
08360-51297
SCREWMACHINE
|
08360-51297 |
— | ||
|
0836051297
|
0836051297
08360-51297
SCREWMACHINE
|
08360-51297 |
— | ||
|
22020
|
22020
22020-50F01 Transistor Ignition Unit9405--01 ~ 9502--01; VH45D |
22020-50F01 |
from US $501.26 |
||
|
22020
|
22020
22435-1P100 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾋﾀﾞﾘｶﾞﾜ |
22435-1P100 |
US $24.77 |
||
|
22020
|
22020
22435-67U00 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾐｷﾞｶﾞﾜ |
22435-67U00 |
US $27.36 |
||
|
22020
|
22020
22020-50F01 Transistor Ignition Unit9405--01 ~ 9502--01; VH45D |
22020-50F01 |
from US $501.26 |
||
|
22020
|
22020
22435-1P100 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾋﾀﾞﾘｶﾞﾜ |
22435-1P100 |
US $24.77 |
||
|
22020
|
22020
22435-67U00 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾐｷﾞｶﾞﾜ |
22435-67U00 |
US $27.36 |
||
|
22020E
|
22020E
22435-1P100 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾋﾀﾞﾘｶﾞﾜ |
22435-1P100 |
US $24.77 |
||
|
22020E
|
22020E
22435-67U00 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾐｷﾞｶﾞﾜ |
22435-67U00 |
US $27.36 |
||
|
22020EA
|
22020EA
22435-67U00 Bracket-Transistor Ignition9405--01 ~ 9502--01; VH45D; ﾐｷﾞｶﾞﾜ |
22435-67U00 |
US $27.36 |
||
|
22401
|
22401
224011P115 Plug-Spark9405--01 ~ 9812--01; VH45D; PFR5G-11[B512] |
224011P115 |
from US $17.63 |
||
|
22401
|
22401
224011P116 Spark Plug (NGK PFR6B11)9405--01 ~ 9812--01; VH45D; PFR6G-11[B512] |
224011P116 |
from US $15.98 |
||
|
22401
|
22401
22401-1P117 Plug-Spark9405--01 ~ 9812--01; VH45D; NGK PFR7G-11 ｾﾝﾀｸ[B512] |
22401-1P117 |
US $21.60 |
||
|
22401
|
22401
224011P115 Plug-Spark9405--01 ~ 9812--01; VH45D; PFR5G-11[B512] |
224011P115 |
from US $17.63 |
||
|
22401
|
22401
224011P116 Spark Plug (NGK PFR6B11)9405--01 ~ 9812--01; VH45D; PFR6G-11[B512] |
224011P116 |
from US $15.98 |
||
|
22401
|
22401
22401-1P117 Plug-Spark9405--01 ~ 9812--01; VH45D; NGK PFR7G-11 ｾﾝﾀｸ[B512] |
22401-1P117 |
US $21.60 |
||
|
22433
|
22433
22448-1P100
Coil Assy-Ignition
9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22448-1P100 |
— | ||
|
22433
|
22433
22448-1P105
Coil Assy-Ignition
9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22448-1P105 |
— | ||
|
22433
|
22433
22448-67U00
Coil Assy-Ignition
9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22448-67U00 |
— | ||
|
22433
|
22433
22448-67U05 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22448-67U05 |
US $286.03 |
||
|
22433
|
22433
2243325U00 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243325U00 |
US $194.05 |
||
|
22433
|
22433
2243360U02 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243360U02 |
US $132.13 |
||
|
22433
|
22433
22433-60U05 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-60U05 |
US $138.10 |
||
|
22433
|
22433
22433-67U05 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-67U05 |
US $270.72 |
||
|
22433
|
22433
22448-1P100
Coil Assy-Ignition
9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22448-1P100 |
— | ||
|
22433
|
22433
22448-1P105
Coil Assy-Ignition
9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22448-1P105 |
— | ||
|
22433
|
22433
22448-67U00
Coil Assy-Ignition
9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22448-67U00 |
— | ||
|
22433
|
22433
22448-67U05 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22448-67U05 |
US $286.03 |
||
|
22433
|
22433
2243325U00 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243325U00 |
US $194.05 |
||
|
22433
|
22433
2243360U02 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243360U02 |
US $132.13 |
||
|
22433
|
22433
22433-60U05 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-60U05 |
US $138.10 |
||
|
22433
|
22433
22433-67U05 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-67U05 |
US $270.72 |
||
|
22433+A
|
22433+A
2243325U00 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243325U00 |
US $194.05 |
||
|
22433+A
|
22433+A
2243360U02 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243360U02 |
US $132.13 |
||
|
22433+A
|
22433+A
22433-60U05 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-60U05 |
US $138.10 |
||
|
22433+A
|
22433+A
22433-67U05 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-67U05 |
US $270.72 |
||
|
22433+A
|
22433+A
2243325U00 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243325U00 |
US $194.05 |
||
|
22433+A
|
22433+A
2243360U02 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
2243360U02 |
US $132.13 |
||
|
22433+A
|
22433+A
22433-60U05 Coil Assy-Ignition9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-60U05 |
US $138.10 |
||
|
22433+A
|
22433+A
22433-67U05 Coil Assy-Ignition9502--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22433-67U05 |
US $270.72 |
||
|
22435
|
22435
22435-1P105 Bracket-Ignition Coil9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22435-1P105 |
US $23.76 |
||
|
22435
|
22435
22435-67U20 Bracket-Transistor Ignition9502--01 ~ 9812--01; VH45D |
22435-67U20 |
US $25.49 |
||
|
22435
|
22435
22435-1P105 Bracket-Ignition Coil9405--01 ~ 9502--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22435-1P105 |
US $23.76 |
||
|
22435
|
22435
22435-67U20 Bracket-Transistor Ignition9502--01 ~ 9812--01; VH45D |
22435-67U20 |
US $25.49 |
||
|
22435+A
|
22435+A
22435-67U20 Bracket-Transistor Ignition9502--01 ~ 9812--01; VH45D |
22435-67U20 |
US $25.49 |
||
|
22435+A
|
22435+A
22435-67U20 Bracket-Transistor Ignition9502--01 ~ 9812--01; VH45D |
22435-67U20 |
US $25.49 |
||
|
22465
|
22465
22465-1P100 Protector-Ignition Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22465-1P100 |
US $21.60 |
||
|
22465
|
22465
22465-1P100 Protector-Ignition Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22465-1P100 |
US $21.60 |
||
|
22467
|
22467
22467-56E11 SCREW9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22467-56E11 |
US $1.73 |
||
|
22467
|
22467
22467-1P100 Screw9405--01 ~ 9812--01; VH45D; M5 X 22 |
22467-1P100 |
US $2.08 |
||
|
22467
|
22467
01436-01581 SCREW9405--01 ~ 9502--01; VH45D |
01436-01581 |
US $1.73 |
||
|
22467
|
22467
22467-56E11 SCREW9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #3 ｶﾗ #8 |
22467-56E11 |
US $1.73 |
||
|
22467
|
22467
22467-1P100 Screw9405--01 ~ 9812--01; VH45D; M5 X 22 |
22467-1P100 |
US $2.08 |
||
|
22467
|
22467
01436-01581 SCREW9405--01 ~ 9502--01; VH45D |
01436-01581 |
US $1.73 |
||
|
22467+A
|
22467+A
22467-1P100 Screw9405--01 ~ 9812--01; VH45D; M5 X 22 |
22467-1P100 |
US $2.08 |
||
|
22467+A
|
22467+A
22467-1P100 Screw9405--01 ~ 9812--01; VH45D; M5 X 22 |
22467-1P100 |
US $2.08 |
||
|
22467+B
|
22467+B
01436-01581 SCREW9405--01 ~ 9502--01; VH45D |
01436-01581 |
US $1.73 |
||
|
22467+B
|
22467+B
01436-01581 SCREW9405--01 ~ 9502--01; VH45D |
01436-01581 |
US $1.73 |
||
|
22468
|
22468
22468-1P101 Spr-Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22468-1P101 |
US $4.61 |
||
|
22468
|
22468
22468-1P105 Spr-Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22468-1P105 |
US $4.61 |
||
|
22468
|
22468
22468-1P101 Spr-Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22468-1P101 |
US $4.61 |
||
|
22468
|
22468
22468-1P105 Spr-Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22468-1P105 |
US $4.61 |
||
|
22468+A
|
22468+A
22468-1P105 Spr-Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22468-1P105 |
US $4.61 |
||
|
22468+A
|
22468+A
22468-1P105 Spr-Coil9405--01 ~ 9812--01; VH45D; ﾊﾝｼﾝ #1,#2 |
22468-1P105 |
US $4.61 |
||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
