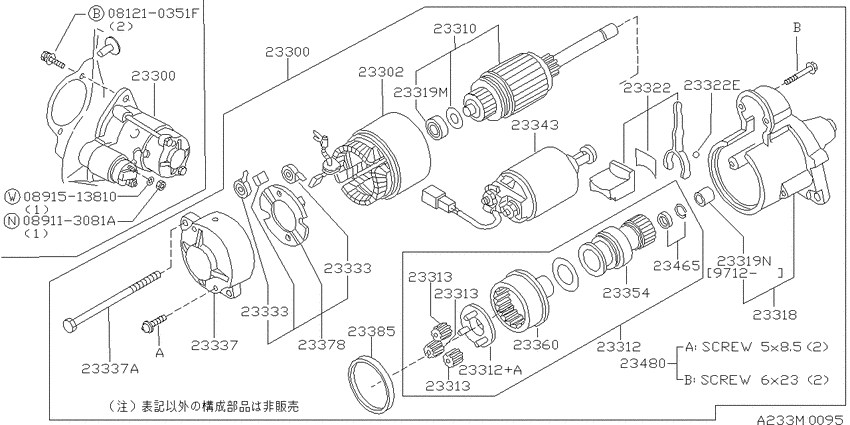

Starter motor (1995-04-01 ~ 1996-01-01; 三菱; IRS.VH45D) Diagram Nissan PRESIDENT
- Year
- 1994 - 1998
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/S
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081210351F
|
081210351F
081210351F Bolt-hexagon |
081210351F |
US $2.91 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-60U12 Motor Assy-Starter9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23300-60U12 |
US $1,186.61 |
||
|
23300
|
23300
23300-60U15 Motor Assy-Starter9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23300-60U15 |
US $1,195.10 |
||
|
23300
|
23300
23300-60U12 Motor Assy-Starter9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23300-60U12 |
US $1,186.61 |
||
|
23300
|
23300
23300-60U15 Motor Assy-Starter9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23300-60U15 |
US $1,195.10 |
||
|
23302
|
23302
23302-1P115 Yoke Assy9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23302-1P115 |
US $324.26 |
||
|
23302
|
23302
23302-60U12 Yoke Assy9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23302-60U12 |
US $416.30 |
||
|
23310
|
23310
23310-1P115 Armature Assy9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23310-1P115 |
US $403.56 |
||
|
23310
|
23310
23310-60U12 Armature Assy9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23310-60U12 |
US $657.02 |
||
|
23312
|
23312
23312-60U11 Pinion Assy9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23312-60U11 |
US $329.93 |
||
|
23312
|
23312
23354-1P115 Clutch Assy9601--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23354-1P115 |
US $300.19 |
||
|
23312
|
23312
23354-60U15 Clutch Assy9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23354-60U15 |
US $648.53 |
||
|
23312
|
23312
23312-53J12 Pinion Assy9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23312-53J12 |
US $106.42 |
||
|
23312
|
23312
23312-63J11 Pinion Assy9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23312-63J11 |
US $180 |
||
|
23312+A
|
23312+A
23312-53J12 Pinion Assy9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23312-53J12 |
US $106.42 |
||
|
23312+A
|
23312+A
23312-63J11 Pinion Assy9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23312-63J11 |
US $180 |
||
|
23313
|
23313
23361-1P115 Gear9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23361-1P115 |
US $49.54 |
||
|
23313
|
23313
23361-42L70 Planet Gear9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23361-1P115 Gear9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23361-1P115 |
US $49.54 |
||
|
23313
|
23313
23361-42L70 Planet Gear9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23361-1P115 Gear9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23361-1P115 |
US $49.54 |
||
|
23313
|
23313
23361-42L70 Planet Gear9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23318
|
23318
23318-60U11 Case Assy-Gear9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23318-60U11 |
US $133.78 |
||
|
23318
|
23318
23318-60U15 Case Assy-Gear9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23318-60U15 |
US $133.78 |
||
|
23318
|
23318
23318-60U16 Case Assy-Gear9712--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23318-60U16 |
US $135.07 |
||
|
23319M
|
23319M
23319-W3410 Bearing-Gear Case9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23319-W3410 |
US $23.04 |
||
|
23319N
|
23319N
23319-25V10 Metal-Gear Case9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23319-25V10 |
US $18.86 |
||
|
23319N
|
23319N
23319M8011 Metal-Gear Case9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23322
|
23322
23322-1P115 Lever Set-Shift9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23322-1P115 |
US $19.30 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9405--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23322E
|
23322E
23325-42L70 Ball-Shift Lever9405--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-1P115 Spring-Brush9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23333-1P115 |
US $6.34 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23333
|
23333
23333-1P115 Spring-Brush9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23333-1P115 |
US $6.34 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-42L71 Spring9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-01N10 Cover Assy-Rear9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23337-01N10 |
US $68.54 |
||
|
23337
|
23337
23337-60U15 Cover Assy-Rear9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23337-60U15 |
US $55.58 |
||
|
23337
|
23337
23340-60U10 Bolt-Through9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23340-60U10 |
US $4.03 |
||
|
23337
|
23337
23340-W1810 Bolt-Through9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23340-W1810 |
US $4.18 |
||
|
23337A
|
23337A
23340-60U10 Bolt-Through9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23340-60U10 |
US $4.03 |
||
|
23337A
|
23337A
23340-W1810 Bolt-Through9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23340-W1810 |
US $4.18 |
||
|
23343
|
23343
23343-60U13 Switch Assy-Magnetic9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23343-60U13 |
US $168.48 |
||
|
23343
|
23343
23343-60U15 Switch Assy-Magnetic9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23343-60U15 |
US $171.36 |
||
|
23354
|
23354
23354-1P116 Clutch Assy9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23354-1P116 |
US $300.19 |
||
|
23354
|
23354
23354-53J11 Clutch Assy9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23354-53J11 |
US $325.68 |
||
|
23360
|
23360
23360-1P115 Gear & Shaft Set9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
23360-1P115 |
US $389.40 |
||
|
23360
|
23360
23360-30R12 Gear9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23360-30R12 |
US $29.95 |
||
|
23378
|
23378
23378-1P115 Holder Assy-Brush9712--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23378-1P115 |
US $54.43 |
||
|
23378
|
23378
23378-60U11 Holder Assy-Brush9405--01 ~ 9504--01; VH45D; ﾐﾂﾋﾞｼ |
23378-60U11 |
US $39.60 |
||
|
23378
|
23378
2337860U15 Holder Assy-Brush9504--01 ~ 9601--01; (SHORT.IRS+LONG.IRS).VH45D; ﾐﾂﾋﾞｼ |
2337860U15 |
US $62.78 |
||
|
23385
|
23385
23385-42L70 Packing Set9405--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23385-42L70 |
US $4.18 |
||
|
23465
|
23465
23465-42L70 Stopper Set-Pinion9405--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23465-42L70 |
US $7.63 |
||
|
23480
|
23480
23480-M0110 Screw Set9405--01 ~ 9812--01; VH45D; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
