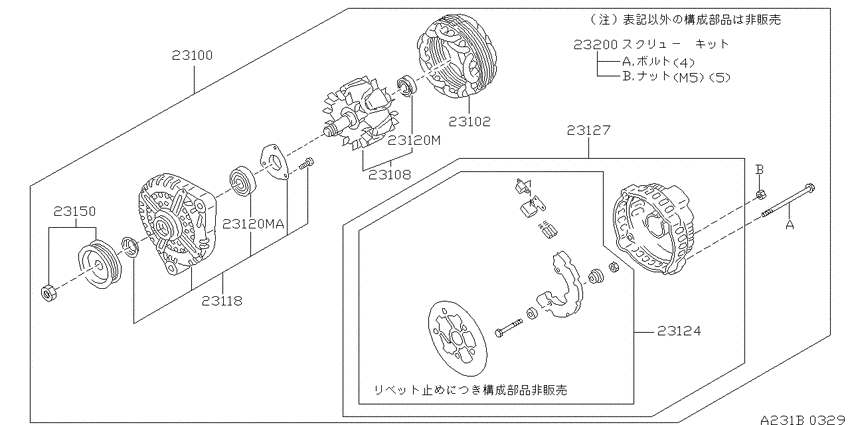

Alternator (1998-12-01 ~ ; 日立; VH45D) Diagram Nissan PRESIDENT
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/L
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-81U00 Alternator Assy9812--01 ~ ; VH45D; ﾋﾀﾁ |
23100-81U00 |
US $2,240 |
||
|
23100
|
23100
11916-81U00 Bolt9812--01 ~ ; VH45D |
11916-81U00 |
US $6.19 |
||
|
23100
|
23100
0122100381 NUT9812--01 ~ ; VH45D |
0122100381 |
from US $5.85 |
||
|
23102
|
23102
23102-40U00 Stator Assy9812--01 ~ ; VH45D; ﾋﾀﾁ |
23102-40U00 |
US $591.89 |
||
|
23108
|
23108
23108-40U00 Rotor Assy9812--01 ~ 9909--01; VH45D; ﾋﾀﾁ |
23108-40U00 |
US $346.92 |
||
| replacement | |||||
|
23108
|
23108
23108-6P600 Rotor Assy9812--01 ~ 9909--01; VH45D; ﾋﾀﾁ |
23108-6P600 |
US $346.92 |
||
|
23108
|
23108
23108-6P600 Rotor Assy9909--01 ~ ; VH45D; ﾋﾀﾁ |
23108-6P600 |
US $346.92 |
||
|
23118
|
23118
23118-81U00 Cover Assy-Front9812--01 ~ ; VH45D; ﾋﾀﾁ |
23118-81U00 |
US $213.12 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9812--01 ~ ; VH45D; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9812--01 ~ ; VH45D; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9812--01 ~ ; VH45D; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-81U02 Rectifier Assy9812--01 ~ ; VH45D; ﾋﾀﾁ |
23124-81U02 |
US $1,018.10 |
||
|
23127
|
23127
23127-81U03 Cover Assy-Rear9812--01 ~ ; VH45D; ﾋﾀﾁ |
23127-81U03 |
US $1,442 |
||
|
23150
|
23150
23150-81U00 Pulley Assy9812--01 ~ ; VH45D; ﾋﾀﾁ |
23150-81U00 |
US $194.40 |
||
|
23200
|
23200
23200-0M000 Screw Set9812--01 ~ ; VH45D; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
||
