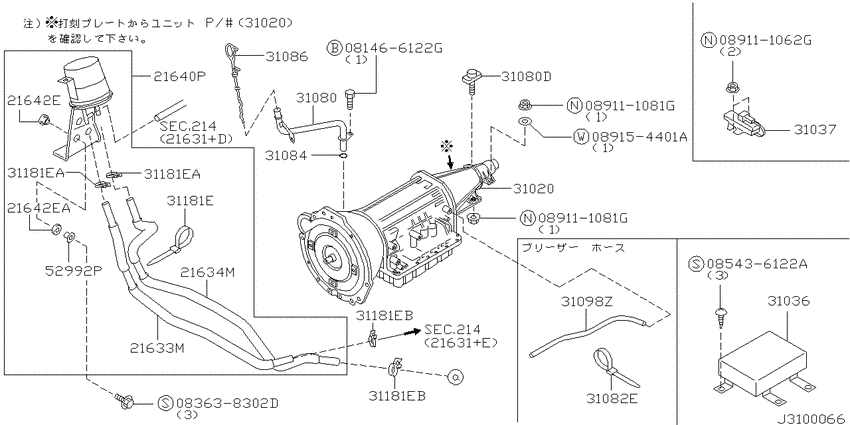

Auto transmission,transaxle & fitting (1999-09-01 ~ ; "トランスミッション アッセンブリー; AT) Diagram Nissan PRESIDENT
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/L
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
083638302D
|
083638302D
08363-8302D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8302D |
— | ||
|
085436122A
|
085436122A
08543-6122A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-6122A |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
21633M
|
21633M
21631-68U01 Hose-Oil Cooler9812--01 ~ ; AT |
21631-68U01 |
US $175.68 |
||
|
21634M
|
21634M
21634-68U01 Hose-Oil Cooler9812--01 ~ ; AT |
21634-68U01 |
US $175.68 |
||
|
21640P
|
21640P
21640-68U01 Filter Assy-Automatic Transmission9812--01 ~ ; AT |
21640-68U01 |
US $283.68 |
||
|
21642E
|
21642E
52990-62U00 Insulator-Valve Mounting9812--01 ~ ; AT |
52990-62U00 |
US $5.76 |
||
|
21642E
|
21642E
52991-62U00 Insulator-Rear Control Valve9812--01 ~ ; AT |
52991-62U00 |
US $5.76 |
||
|
21642EA
|
21642EA
52991-62U00 Insulator-Rear Control Valve9812--01 ~ ; AT |
52991-62U00 |
US $5.76 |
||
|
31020
|
31020
31020-52X17 Transmission Assy-Automatic9812--01 ~ ; AT; RE4R03A |
31020-52X17 |
US $5,194 |
||
|
31020
|
31020
31377-60U00 Bolt9812--01 ~ ; AT |
31377-60U00 |
US $1.73 |
||
|
31036
|
31036
31036-69U00 Control Unit-Shift9812--01 ~ ; AT |
31036-69U00 |
US $784.46 |
||
|
31037
|
31037
31037-36F00 Resistor Assy-Auto Transmission9812--01 ~ ; AT |
31037-36F00 |
US $37.16 |
||
|
31080
|
31080
31080-67U00 Pipe Assy-Oil Charging9812--01 ~ ; AT |
31080-67U00 |
US $49.39 |
||
|
31080
|
31080
11390-V5000 Bolt9812--01 ~ ; AT |
11390-V5000 |
US $2.45 |
||
|
31080D
|
31080D
11390-V5000 Bolt9812--01 ~ ; AT |
11390-V5000 |
US $2.45 |
||
|
31082E
|
31082E
24220-1P600 Clip9812--01 ~ ; AT |
24220-1P600 |
US $2.45 |
||
|
31084
|
31084
31084-20300 Seal-O Ring9812--01 ~ ; AT |
31084-20300 |
US $1.58 |
||
|
31086
|
31086
3108667U00 Gauge Assy-Oil Level9812--01 ~ ; AT |
3108667U00 |
US $18.72 |
||
|
31098Z
|
31098Z
31098-16Y00 Hose-Breather9812--01 ~ ; AT |
31098-16Y00 |
US $15.84 |
||
|
31181E
|
31181E
01552-00033 CLIP-HARNESS9812--01 ~ ; AT |
01552-00033 |
US $4.85 |
||
|
31181E
|
31181E
01558-00181 CLAMP-HOSE9812--01 ~ ; AT |
01558-00181 |
US $3.60 |
||
|
31181E
|
31181E
01558-00181 CLAMP-HOSE9812--01 ~ ; AT |
01558-00181 |
US $3.60 |
||
|
31181EA
|
31181EA
01558-00181 CLAMP-HOSE9812--01 ~ ; AT |
01558-00181 |
US $3.60 |
||
|
31181EA
|
31181EA
01558-00181 CLAMP-HOSE9812--01 ~ ; AT |
01558-00181 |
US $3.60 |
||
|
31181EB
|
31181EB
01558-00181 CLAMP-HOSE9812--01 ~ ; AT |
01558-00181 |
US $3.60 |
||
|
31181EB
|
31181EB
01558-00181 CLAMP-HOSE9812--01 ~ ; AT |
01558-00181 |
US $3.60 |
||
|
52992P
|
52992P
52992-62U00 Collar-Insulator9812--01 ~ ; AT |
52992-62U00 |
US $4.18 |
||
