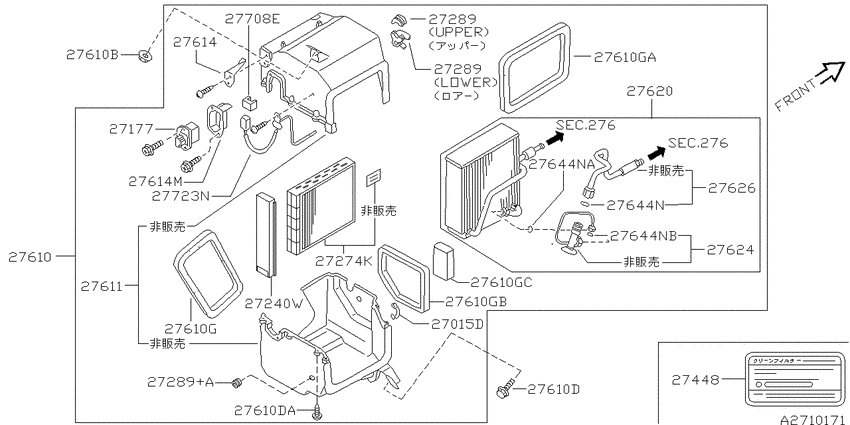

Cooling unit (1998-12-01 ~ ; S) Diagram Nissan PRESIDENT
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- TP/L
- body
- S
- Suspension
- IRS
- wheelbase
- SHORT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27015D
|
27015D
21476-B0100
Clip-Cooler Case
9812--01 ~ ; S |
21476-B0100 |
— | ||
| replacement | |||||
|
27015D
|
27015D
21476-C5500 Clip9812--01 ~ ; S |
21476-C5500 |
from US $3.07 |
||
|
27177
|
27177
27761-85E02 AMPLIFIER ASSY-FAN CONTROL9812--01 ~ ; S |
27761-85E02 |
US $197.28 |
||
|
27240W
|
27240W
27420-7P000 Cover9812--01 ~ ; S |
27420-7P000 |
US $12.96 |
||
|
27274K
|
27274K
AY685NS014 Filter Kit-Air, Air Conditioner9812--01 ~ ; S; ｶﾌﾝ ﾆｵｲ ｱﾚﾙｹﾞﾝ |
AY685NS014 |
US $67.68 |
||
|
27289
|
27289
27289-60U00 Grommet9812--01 ~ 9909--01; S; ｱｯﾊﾟｰ |
27289-60U00 |
US $5.90 |
||
|
27289
|
27289
27289-60U01 Grommet9812--01 ~ 9909--01; S; ﾛｱ |
27289-60U01 |
US $5.90 |
||
|
27289
|
27289
27289-4H500 Grommet9812--01 ~ ; S |
27289-4H500 |
US $1.44 |
||
|
27289
|
27289
27289-60U00 Grommet9812--01 ~ 9909--01; S; ｱｯﾊﾟｰ |
27289-60U00 |
US $5.90 |
||
|
27289
|
27289
27289-60U01 Grommet9812--01 ~ 9909--01; S; ﾛｱ |
27289-60U01 |
US $5.90 |
||
|
27289
|
27289
27289-4H500 Grommet9812--01 ~ ; S |
27289-4H500 |
US $1.44 |
||
|
27289+A
|
27289+A
27289-4H500 Grommet9812--01 ~ ; S |
27289-4H500 |
US $1.44 |
||
|
27448
|
27448
27081-4H501 Label9909--01 ~ ; *S |
27081-4H501 |
US $6.05 |
||
|
27448
|
27448
27081-6P000 Label9812--01 ~ ; S |
27081-6P000 |
US $4.61 |
||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
27610
|
27610
27270-4H500 Cooling Unit Assy9812--01 ~ ; S |
27270-4H500 |
US $989.78 |
||
|
27610
|
27610
0122500371 NUT9812--01 ~ ; S |
0122500371 |
US $1.73 |
||
|
27610
|
27610
01436-01211 SCREW9812--01 ~ ; S |
01436-01211 |
US $1.73 |
||
|
27610
|
27610
27111-2Y000 Screw9812--01 ~ ; S |
27111-2Y000 |
US $1.73 |
||
|
27610
|
27610
27287-60U00 Seal9812--01 ~ ; S |
27287-60U00 |
US $9.79 |
||
|
27610
|
27610
27287-60U01 Seal9812--01 ~ ; S |
27287-60U01 |
US $11.95 |
||
|
27610
|
27610
27287-4H500 Seal9812--01 ~ ; S |
27287-4H500 |
US $9.36 |
||
|
27610
|
27610
27287-4H501 Seal9812--01 ~ ; S |
27287-4H501 |
US $9.36 |
||
|
27610B
|
27610B
0122500371 NUT9812--01 ~ ; S |
0122500371 |
US $1.73 |
||
|
27610D
|
27610D
01436-01211 SCREW9812--01 ~ ; S |
01436-01211 |
US $1.73 |
||
|
27610D
|
27610D
27111-2Y000 Screw9812--01 ~ ; S |
27111-2Y000 |
US $1.73 |
||
|
27610DA
|
27610DA
27111-2Y000 Screw9812--01 ~ ; S |
27111-2Y000 |
US $1.73 |
||
|
27610G
|
27610G
27287-60U00 Seal9812--01 ~ ; S |
27287-60U00 |
US $9.79 |
||
|
27610G
|
27610G
27287-60U01 Seal9812--01 ~ ; S |
27287-60U01 |
US $11.95 |
||
|
27610G
|
27610G
27287-4H500 Seal9812--01 ~ ; S |
27287-4H500 |
US $9.36 |
||
|
27610G
|
27610G
27287-4H501 Seal9812--01 ~ ; S |
27287-4H501 |
US $9.36 |
||
|
27610GA
|
27610GA
27287-60U01 Seal9812--01 ~ ; S |
27287-60U01 |
US $11.95 |
||
|
27610GB
|
27610GB
27287-4H500 Seal9812--01 ~ ; S |
27287-4H500 |
US $9.36 |
||
|
27610GC
|
27610GC
27287-4H501 Seal9812--01 ~ ; S |
27287-4H501 |
US $9.36 |
||
|
27611
|
27611
27284-4H500 Case Assy-Cooling Unit9812--01 ~ ; S |
27284-4H500 |
US $180 |
||
|
27614
|
27614
27295-61U00 Bracket-Cooling Unit, No 19812--01 ~ ; S |
27295-61U00 |
US $9.79 |
||
|
27614
|
27614
27152-0E500 Bracket-Resistor9812--01 ~ ; S |
27152-0E500 |
US $11.52 |
||
|
27614M
|
27614M
27152-0E500 Bracket-Resistor9812--01 ~ ; S |
27152-0E500 |
US $11.52 |
||
|
27620
|
27620
27280-4H500 Evaporator Assy-Cooler9812--01 ~ ; S |
27280-4H500 |
US $1,154.04 |
||
|
27624
|
27624
92200-67U03 Valve Assy-Expansion9812--01 ~ ; S |
92200-67U03 |
US $123.41 |
||
|
27626
|
27626
27283-4H500 Tube-Evaporator Inlet9812--01 ~ ; S |
27283-4H500 |
US $4.61 |
||
|
27644N
|
27644N
92470-N8200
O Ring
9909--01 ~ ; S; [B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92470N8210 O Ring9909--01 ~ ; S; [B421] |
92470N8210 |
from US $0.98 |
||
|
27644N
|
27644N
92475-W1000
O Ring
9909--01 ~ ; S; [B421] |
92475-W1000 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92475HC303 O Ring9909--01 ~ ; S; [B421] |
92475HC303 |
US $1.68 |
||
|
27644N
|
27644N
92472N8200 Seal-O Ring9909--01 ~ ; S |
92472N8200 |
US $1.13 |
||
|
27644NA
|
27644NA
92475-W1000
O Ring
9909--01 ~ ; S; [B421] |
92475-W1000 |
— | ||
| replacement | |||||
|
27644NA
|
27644NA
92475HC303 O Ring9909--01 ~ ; S; [B421] |
92475HC303 |
US $1.68 |
||
|
27644NB
|
27644NB
92472N8200 Seal-O Ring9909--01 ~ ; S |
92472N8200 |
US $1.13 |
||
|
27708E
|
27708E
27293-41B00 Bracket9812--01 ~ ; S |
27293-41B00 |
US $1.73 |
||
|
27723N
|
27723N
27723-4H501 Sensor Assy-Thermister9812--01 ~ ; S |
27723-4H501 |
US $25.63 |
||
