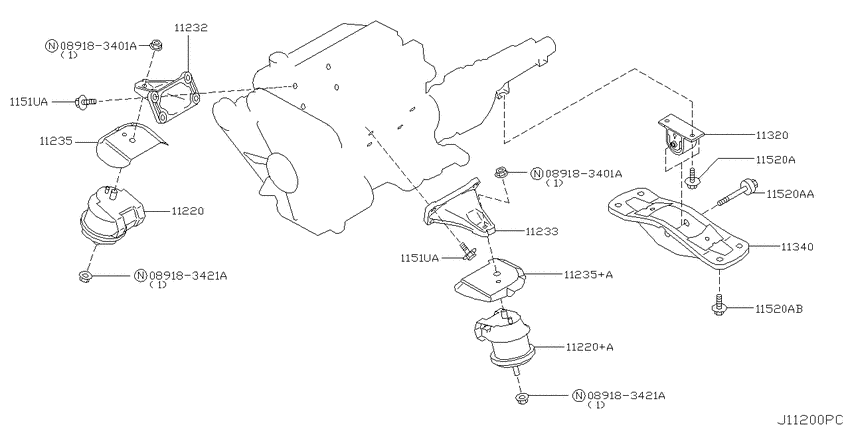

Engine & transmission mounting (2003-10-01 ~ 2008-02-01; VK45DE) Diagram Nissan PRESIDENT
- Year
- 2003 - 2008
- Sales region
- Japan
- Engine
- VK45DE
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
11220
|
11220
11210-AR000 Insulator-Engine Mounting, Front0310--01 ~ 0802--01; VK45DE |
11210-AR000 |
US $440.38 |
||
|
11220
|
11220
11220-AR000 Insulator-Engine Mounting, Front0310--01 ~ 0802--01; VK45DE |
11220-AR000 |
US $440.38 |
||
|
11220+A
|
11220+A
11220-AR000 Insulator-Engine Mounting, Front0310--01 ~ 0802--01; VK45DE |
11220-AR000 |
US $440.38 |
||
|
11232
|
11232
11232-AR000 Bracket-Engine Mounting, Rh0310--01 ~ 0802--01; VK45DE |
11232-AR000 |
US $101.09 |
||
|
11233
|
11233
11233-AR000 Bracket-Engine Mounting, Lh0310--01 ~ 0802--01; VK45DE |
11233-AR000 |
US $101.09 |
||
|
11235
|
11235
11284-AR000 Plate-Heat Shield0310--01 ~ 0802--01; VK45DE |
11284-AR000 |
US $10.08 |
||
|
11235
|
11235
11284-AR011 Plate-Heat Shield0310--01 ~ 0802--01; VK45DE |
11284-AR011 |
US $10.08 |
||
|
11235+A
|
11235+A
11284-AR011 Plate-Heat Shield0310--01 ~ 0802--01; VK45DE |
11284-AR011 |
US $10.08 |
||
|
11320
|
11320
11320AG000 Insulator-Engine Mounting, Rear0310--01 ~ 0802--01; VK45DE |
11320AG000 |
from US $77.70 |
||
|
11340
|
11340
11331-AR000 Member Assy-Engine Mounting, Rear0310--01 ~ 0802--01; VK45DE |
11331-AR000 |
US $94.32 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0310--01 ~ 0802--01; VK45DE |
11298-4M411 |
from US $1.76 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0310--01 ~ 0802--01; VK45DE |
11298-4M411 |
from US $1.76 |
||
|
11520A
|
11520A
11298AH000 Bolt0310--01 ~ 0802--01; VK45DE |
11298AH000 |
US $3.46 |
||
|
11520A
|
11520A
11298-AG001 Bolt0310--01 ~ 0802--01; VK45DE |
11298-AG001 |
from US $1.72 |
||
|
11520A
|
11520A
11298-AG900 Bolt0310--01 ~ 0701--01; VK45DE |
11298-AG900 |
US $2.45 |
||
|
11520A
|
11520A
11298AG90A Bolt0701--01 ~ 0802--01; VK45DE |
11298AG90A |
US $3.06 |
||
|
11520AA
|
11520AA
11298-AG001 Bolt0310--01 ~ 0802--01; VK45DE |
11298-AG001 |
from US $1.72 |
||
|
11520AB
|
11520AB
11298-AG900 Bolt0310--01 ~ 0701--01; VK45DE |
11298-AG900 |
US $2.45 |
||
|
11520AB
|
11520AB
11298AG90A Bolt0701--01 ~ 0802--01; VK45DE |
11298AG90A |
US $3.06 |
