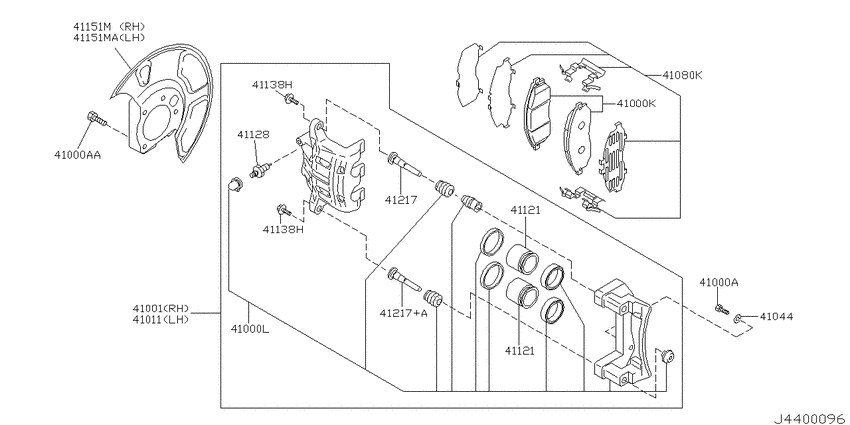

Front brake (2003-10-01 ~ 2008-02-01; VK45DE) Diagram Nissan PRESIDENT
- Year
- 2003 - 2008
- Sales region
- Japan
- Engine
- VK45DE
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41000A
|
41000A
41005-AG010 Bolt0310--01 ~ 0703--01; VK45DE |
41005-AG010 |
US $3.46 |
||
|
41000A
|
41000A
41005-AG01A Bolt0703--01 ~ 0802--01; VK45DE |
41005-AG01A |
US $3.46 |
||
|
41000A
|
41000A
0141100131 BOLT0310--01 ~ 0802--01; VK45DE |
0141100131 |
US $1.73 |
||
|
41000AA
|
41000AA
0141100131 BOLT0310--01 ~ 0802--01; VK45DE |
0141100131 |
US $1.73 |
||
|
41000K
|
41000K
AY040NS098 Pad Kit-Disc Brake0310--01 ~ 0409--01; VK45DE |
AY040NS098 |
US $158.40 |
||
|
41000K
|
41000K
AY040NS129 Pad Kit-Disc Brake0409--01 ~ 0802--01; VK45DE |
AY040NS129 |
US $159.84 |
||
|
41000L
|
41000L
AY600NS004 Seal Kit-Disc Brake0310--01 ~ 0802--01; VK45DE |
AY600NS004 |
US $51.59 |
||
|
41001
|
41001
41001-AS500 Caliper Assy-Front Rh, W/o Pads Or Shims0310--01 ~ 0802--01; VK45DE |
41001-AS500 |
US $672.60 |
||
|
41011
|
41011
41011-AS500 Caliper Assy-Front Lh, W/o Pads Or Shims0310--01 ~ 0802--01; VK45DE |
41011-AS500 |
US $672.60 |
||
|
41044
|
41044
41044-6P010 Washer0310--01 ~ 0701--01; VK45DE |
41044-6P010 |
US $3.46 |
||
|
41044
|
41044
410446P01A Washer0701--01 ~ 0802--01; VK45DE |
410446P01A |
from US $1.79 |
||
|
41080K
|
41080K
41080-AR025 Hardware Kit-Front Disc Brake Pad0310--01 ~ 0802--01; VK45DE |
41080-AR025 |
US $106.42 |
||
|
41121
|
41121
411210V700 Piston-Cylinder0310--01 ~ 0802--01; VK45DE |
411210V700 |
US $47.66 |
||
|
41121
|
41121
411210V700 Piston-Cylinder0310--01 ~ 0802--01; VK45DE |
411210V700 |
US $47.66 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
0310--01 ~ 0802--01; VK45DE |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder0310--01 ~ 0802--01; VK45DE |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0310--01 ~ 0802--01; VK45DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0310--01 ~ 0802--01; VK45DE |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0310--01 ~ 0802--01; VK45DE |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0310--01 ~ 0802--01; VK45DE |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41150-AR000 Plate-Baffle0310--01 ~ 0802--01; VK45DE |
41150-AR000 |
US $32.83 |
||
|
41151M
|
41151M
41160-AR000 Plate-Baffle0310--01 ~ 0802--01; VK45DE |
41160-AR000 |
US $32.83 |
||
|
41151MA
|
41151MA
41160-AR000 Plate-Baffle0310--01 ~ 0802--01; VK45DE |
41160-AR000 |
US $32.83 |
||
|
41217
|
41217
441400V700 Pin0310--01 ~ 0802--01; VK45DE |
441400V700 |
from US $7.63 |
||
|
41217
|
41217
44139-0V700 Pin0310--01 ~ 0802--01; VK45DE |
44139-0V700 |
US $11.95 |
||
|
41217+A
|
41217+A
44139-0V700 Pin0310--01 ~ 0802--01; VK45DE |
44139-0V700 |
US $11.95 |
||
