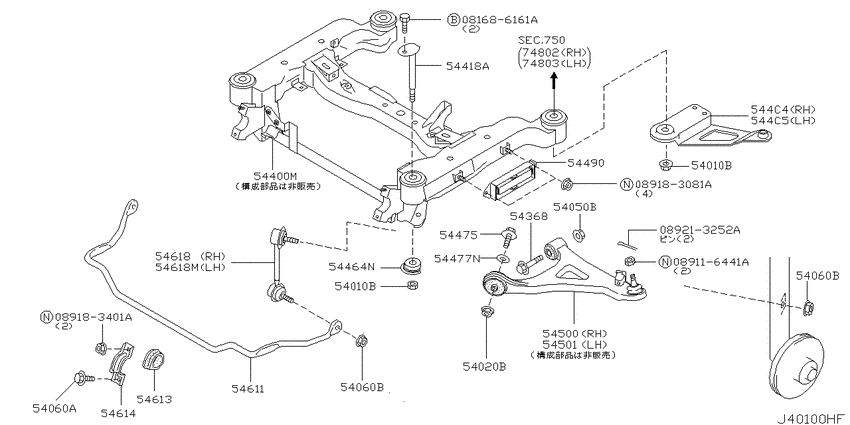

Front suspension (2003-10-01 ~ 2008-02-01; メンバー&スタビライザー; VK45DE) Diagram Nissan PRESIDENT
- Year
- 2003 - 2008
- Sales region
- Japan
- Engine
- VK45DE
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
089116441A
|
089116441A
089116441A NUT-HEX |
089116441A |
from US $0.94 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $0.93 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
54010B
|
54010B
55269-2Y000 Nut0310--01 ~ 0611--01; VK45DE |
55269-2Y000 |
US $3.46 |
||
|
54010B
|
54010B
552692Y00A Nut0611--01 ~ 0802--01; VK45DE |
552692Y00A |
from US $2.98 |
||
|
54010B
|
54010B
55269-2Y000 Nut0310--01 ~ 0611--01; VK45DE |
55269-2Y000 |
US $3.46 |
||
|
54010B
|
54010B
552692Y00A Nut0611--01 ~ 0802--01; VK45DE |
552692Y00A |
from US $2.98 |
||
|
54020B
|
54020B
0122300331 NUT0310--01 ~ 0708--01; VK45DE |
0122300331 |
from US $0.70 |
||
|
54020B
|
54020B
545882Y00A Nut0708--01 ~ 0802--01; VK45DE |
545882Y00A |
from US $2.05 |
||
|
54050B
|
54050B
0122300331 NUT0310--01 ~ 0802--01; VK45DE |
0122300331 |
from US $0.70 |
||
|
54060A
|
54060A
54459AG010 Bolt0310--01 ~ 0703--01; VK45DE |
54459AG010 |
US $5.04 |
||
|
54060A
|
54060A
54459-AG01A Bolt0703--01 ~ 0802--01; VK45DE |
54459-AG01A |
US $4.32 |
||
|
54060B
|
54060B
54588-AD002
Nut
0310--01 ~ 0612--01; VK45DE |
54588-AD002 |
— | ||
| replacement | |||||
|
54060B
|
54060B
54588AD00A Nut0310--01 ~ 0612--01; VK45DE |
54588AD00A |
from US $1.07 |
||
|
54060B
|
54060B
54588AD00A Nut0612--01 ~ 0802--01; VK45DE |
54588AD00A |
from US $1.07 |
||
|
54060B
|
54060B
54588-AD002
Nut
0310--01 ~ 0612--01; VK45DE |
54588-AD002 |
— | ||
| replacement | |||||
|
54060B
|
54060B
54588AD00A Nut0310--01 ~ 0612--01; VK45DE |
54588AD00A |
from US $1.07 |
||
|
54060B
|
54060B
54588AD00A Nut0612--01 ~ 0802--01; VK45DE |
54588AD00A |
from US $1.07 |
||
|
54368
|
54368
54368-AG001 Bolt0310--01 ~ 0802--01; VK45DE |
54368-AG001 |
US $7.34 |
||
|
54400M
|
54400M
54400-AR000 Member Compl-Front Suspension0310--01 ~ 0507--01; VK45DE |
54400-AR000 |
US $1,209.26 |
||
|
54400M
|
54400M
54400-AR00A Member Compl-Front Suspension0507--01 ~ 0802--01; VK45DE |
54400-AR00A |
US $1,107.31 |
||
|
54418A
|
54418A
54418-AG000 Bolt0310--01 ~ 0802--01; VK45DE |
54418-AG000 |
US $10.37 |
||
|
54464N
|
54464N
54464AG000 Stopper-Rebound Front Suspension0310--01 ~ 0802--01; VK45DE |
54464AG000 |
US $10.66 |
||
|
54475
|
54475
54475AR000 Bolt-Tension Rod0310--01 ~ 0802--01; VK45DE |
54475AR000 |
US $5.90 |
||
|
54477N
|
54477N
54474-AR000 Washer-Tension Rod0310--01 ~ 0802--01; VK45DE |
54474-AR000 |
US $3.60 |
||
|
54490
|
54490
54490-AT400 Damper-Dynamic0310--01 ~ 0802--01; VK45DE |
54490-AT400 |
US $83.09 |
||
|
544C4
|
544C4
544C4-AR000 Stay Assy-Front Suspension Member, Rh0310--01 ~ 0802--01; VK45DE |
544C4-AR000 |
US $27.07 |
||
|
544C5
|
544C5
544C5-AR000 Stay Assy-Front Suspension Member, Lh0310--01 ~ 0802--01; VK45DE |
544C5-AR000 |
US $27.07 |
||
|
54500
|
54500
54500AR000 Link Compl-Transverse, Rh0310--01 ~ 0802--01; VK45DE |
54500AR000 |
US $416.30 |
||
|
54501
|
54501
54501AR000 Link Compl-Transverse, Lh0310--01 ~ 0802--01; VK45DE |
54501AR000 |
US $416.30 |
||
|
54611
|
54611
54611-AR000 Stabilizer-Front0310--01 ~ 0802--01; VK45DE |
54611-AR000 |
US $393.65 |
||
|
54613
|
54613
54613AR012 Bush-Stabilizer0310--01 ~ 0802--01; VK45DE |
54613AR012 |
from US $6.91 |
||
|
54614
|
54614
54614-AG000 Clamp-Stabilizer0310--01 ~ 0802--01; VK45DE |
54614-AG000 |
US $11.23 |
||
|
54618
|
54618
54618-AR001 Rod Assy-Connecting, Stabilizer0310--01 ~ 0701--01; VK45DE |
54618-AR001 |
US $68.26 |
||
|
54618
|
54618
54618AR00A Rod Assy-Connecting, Stabilizer0701--01 ~ 0802--01; VK45DE |
54618AR00A |
US $62.50 |
||
|
54618
|
54618
54668-AR001 Rod Assy-Connecting, Stabilizer0310--01 ~ 0701--01; VK45DE |
54668-AR001 |
US $68.26 |
||
|
54618
|
54618
54668AR00A Rod Assy-Connecting, Stabilizer0701--01 ~ 0802--01; VK45DE |
54668AR00A |
US $62.50 |
||
|
54618M
|
54618M
54668-AR001 Rod Assy-Connecting, Stabilizer0310--01 ~ 0701--01; VK45DE |
54668-AR001 |
US $68.26 |
||
|
54618M
|
54618M
54668AR00A Rod Assy-Connecting, Stabilizer0701--01 ~ 0802--01; VK45DE |
54668AR00A |
US $62.50 |
||
|
750
|
Member
750
|
||||
|
750
|
Member
750
|
||||
