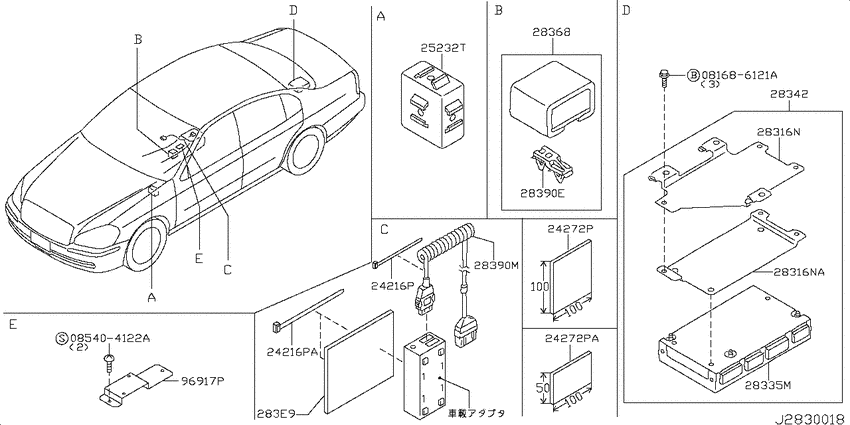

Telephone (2005-04-01 ~ 2008-02-01; S) Diagram Nissan PRESIDENT
- Year
- 2003 - 2008
- Sales region
- Japan
- Engine
- VK45DE
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
085404122A
|
085404122A
08540-4122A SCREWTAPPING |
08540-4122A |
from US $0.57 |
||
|
24216P
|
24216P
24216-V5000 Clip-Harness0504--01 ~ 0802--01; *S |
24216-V5000 |
US $2.49 |
||
|
24216P
|
24216P
24216-W1000 Clip-Wiring Harness0504--01 ~ 0802--01; *S |
24216-W1000 |
US $3.46 |
||
|
24216PA
|
24216PA
24216-W1000 Clip-Wiring Harness0504--01 ~ 0802--01; *S |
24216-W1000 |
US $3.46 |
||
|
24272P
|
24272P
24271-N1300
Protector-Flat Wire
0504--01 ~ 0802--01; *S |
24271-N1300 |
— | ||
| replacement | |||||
|
24272P
|
24272P
B4271U0100 Spacer0504--01 ~ 0802--01; *S |
B4271U0100 |
from US $3.68 |
||
|
24272P
|
24272P
24271-N7100
Protector-Flat Wire
0504--01 ~ 0802--01; *S |
24271-N7100 |
— | ||
| replacement | |||||
|
24272P
|
24272P
B4271U0100 Spacer0504--01 ~ 0802--01; *S |
B4271U0100 |
from US $3.68 |
||
|
24272PA
|
24272PA
24271-N7100
Protector-Flat Wire
0504--01 ~ 0802--01; *S |
24271-N7100 |
— | ||
| replacement | |||||
|
24272PA
|
24272PA
B4271U0100 Spacer0504--01 ~ 0802--01; *S |
B4271U0100 |
from US $3.68 |
||
|
25232T
|
25232T
25230-1L000 Relay0310--01 ~ 0802--01; S; [A317] |
25230-1L000 |
US $35.28 |
||
|
28316N
|
28316N
25233-AR010 Bracket0310--01 ~ 0802--01; S |
25233-AR010 |
US $33.98 |
||
|
28316N
|
28316N
25233-AR011 Bracket0310--01 ~ 0802--01; S |
25233-AR011 |
US $33.98 |
||
|
28316NA
|
28316NA
25233-AR011 Bracket0310--01 ~ 0802--01; S |
25233-AR011 |
US $33.98 |
||
|
28335M
|
28335M
28335-CR000 Adapter Unit-Telephone0310--01 ~ 0802--01; S |
28335-CR000 |
US $962.88 |
||
|
28342
|
28342
28342-AR040 Adapter Assy-Telephone0310--01 ~ 0802--01; S |
28342-AR040 |
US $991.20 |
||
|
28368
|
28368
28368-AG040 Buffer Assy-Telephone0310--01 ~ 0802--01; S |
28368-AG040 |
US $115.20 |
||
|
28390E
|
28390E
24346-5L303 Clip0310--01 ~ 0802--01; S |
24346-5L303 |
US $5.04 |
||
|
28390M
|
28390M
28390-AR000 Harness-Telephone0310--01 ~ 0802--01; S |
28390-AR000 |
US $73.44 |
||
|
28390M
|
28390M
28390-AT400
Harness-Telephone
0504--01 ~ 0802--01; *S |
28390-AT400 |
— | ||
|
283E9
|
283E9
283E9-AT400 Insul0504--01 ~ 0802--01; *S |
283E9-AT400 |
US $8.35 |
||
|
96917P
|
96917P
96917-AT400 ﾏｽｸ,ｺﾝｿ-ﾙ0504--01 ~ 0802--01; *S |
96917-AT400 |
US $17.86 |
||
