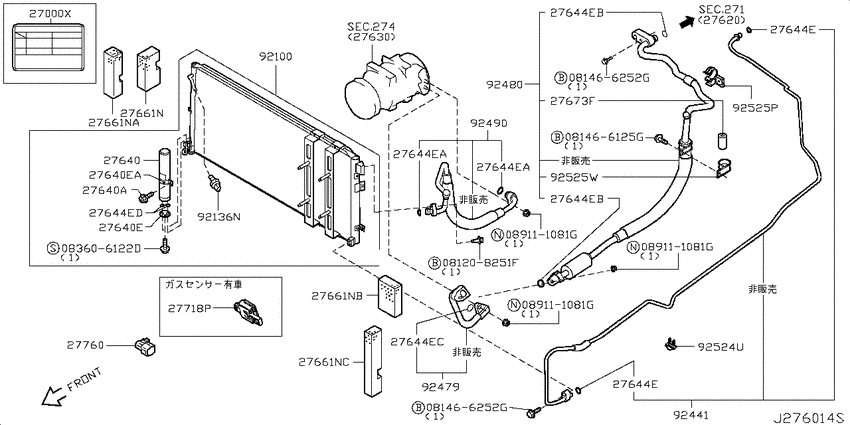

air conditioner (engine room) (2008-02-01 ~ ; S) Diagram Nissan PRESIDENT
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- VK45DE
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081466125G
|
081466125G
081466125G
Bolt-hexagon
|
081466125G |
— | ||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
083606122D
|
083606122D
08360-6122D
Screw
|
08360-6122D |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
27000X
|
27000X
2709079946 Label-Air Con0802--01 ~ ; S |
2709079946 |
US $4.18 |
||
|
271
|
Cooling unit
271
|
||||
|
271
|
Cooling unit
271
|
||||
|
274
|
Compressor
274
|
||||
|
274
|
Compressor
274
|
||||
|
27640
|
27640
92131AR070 Tank Assy-Liquid0802--01 ~ ; S |
92131AR070 |
US $114.19 |
||
|
27640
|
27640
92128CB01A Screw0802--01 ~ ; S |
92128CB01A |
US $1.73 |
||
|
27640
|
27640
921454W000 Bracket-Liquid Tank0802--01 ~ ; S |
921454W000 |
US $6.34 |
||
|
27640
|
27640
921352Y92A Bracket-Liquid Tank0802--01 ~ ; S |
921352Y92A |
US $12.96 |
||
|
27640A
|
27640A
92128CB01A Screw0802--01 ~ ; S |
92128CB01A |
US $1.73 |
||
|
27640E
|
27640E
921454W000 Bracket-Liquid Tank0802--01 ~ ; S |
921454W000 |
US $6.34 |
||
|
27640E
|
27640E
921352Y92A Bracket-Liquid Tank0802--01 ~ ; S |
921352Y92A |
US $12.96 |
||
|
27640EA
|
27640EA
921352Y92A Bracket-Liquid Tank0802--01 ~ ; S |
921352Y92A |
US $12.96 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0802--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0802--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92472N8210 O Ring0802--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92473N8210 O Ring0802--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644E
|
27644E
92474N8210 O Ring0802--01 ~ ; S |
92474N8210 |
US $1.68 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0802--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0802--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0802--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0802--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644E
|
27644E
92472N8210 O Ring0802--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92473N8210 O Ring0802--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644E
|
27644E
92474N8210 O Ring0802--01 ~ ; S |
92474N8210 |
US $1.68 |
||
|
27644E
|
27644E
92471-N8210
O Ring
0802--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring0802--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27644EA
|
27644EA
92472N8210 O Ring0802--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644EA
|
27644EA
92472N8210 O Ring0802--01 ~ ; S |
92472N8210 |
from US $0.98 |
||
|
27644EB
|
27644EB
92473N8210 O Ring0802--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644EB
|
27644EB
92473N8210 O Ring0802--01 ~ ; S |
92473N8210 |
from US $1.41 |
||
|
27644EC
|
27644EC
92474N8210 O Ring0802--01 ~ ; S |
92474N8210 |
US $1.68 |
||
|
27644ED
|
27644ED
92471-N8210
O Ring
0802--01 ~ ; S |
92471-N8210 |
— | ||
| replacement | |||||
|
27644ED
|
27644ED
92470HC050 O Ring0802--01 ~ ; S |
92470HC050 |
from US $0.85 |
||
|
27661N
|
27661N
92184-AR000 Seal-Rubber0802--01 ~ ; S |
92184-AR000 |
US $4.18 |
||
|
27661N
|
27661N
92184-AR010 Seal-Rubber0802--01 ~ ; S |
92184-AR010 |
US $3.74 |
||
|
27661N
|
27661N
92185-AR000 Seal-Rubber0802--01 ~ ; S |
92185-AR000 |
US $2.88 |
||
|
27661N
|
27661N
92185-AR010 Seal-Rubber0802--01 ~ ; S |
92185-AR010 |
US $4.61 |
||
|
27661NA
|
27661NA
92184-AR010 Seal-Rubber0802--01 ~ ; S |
92184-AR010 |
US $3.74 |
||
|
27661NB
|
27661NB
92185-AR000 Seal-Rubber0802--01 ~ ; S |
92185-AR000 |
US $2.88 |
||
|
27661NC
|
27661NC
92185-AR010 Seal-Rubber0802--01 ~ ; S |
92185-AR010 |
US $4.61 |
||
|
27673F
|
27673F
925572J000 Protector-Clamp Tube0802--01 ~ ; S |
925572J000 |
US $3.37 |
||
|
27718P
|
27718P
27718AR000 Sensor Assy-Gas0802--01 ~ ; S |
27718AR000 |
US $363.91 |
||
|
27760
|
27760
27722-31U00 Sensor Assy-Ambient0802--01 ~ ; S |
27722-31U00 |
US $38.88 |
||
|
92100
|
92100
92100AR070 Condenser & Liquid Tank Assy0802--01 ~ ; S |
92100AR070 |
US $564.98 |
||
|
92136N
|
92136N
92136-6J001 Sensor Assy-Pressure0802--01 ~ ; S |
92136-6J001 |
US $50.83 |
||
|
92441
|
92441
92441-AR000 Pipe-Front Cooler, High A0802--01 ~ ; S |
92441-AR000 |
US $97.06 |
||
|
92479
|
92479
92479-AR000 Pipe-Cooler, Low0802--01 ~ ; S |
92479-AR000 |
US $114.34 |
||
|
92480
|
92480
92480-AR002 Hose-Flexible, Low0802--01 ~ ; S |
92480-AR002 |
US $275.04 |
||
|
92490
|
92490
92490-AR002 Hose-Flexible, High0802--01 ~ ; S |
92490-AR002 |
US $165.60 |
||
|
92524U
|
92524U
17561-62J10 Insulator0802--01 ~ ; S |
17561-62J10 |
US $4.32 |
||
|
92525P
|
92525P
92550-AG900 Clip0802--01 ~ ; S |
92550-AG900 |
US $10.94 |
||
|
92525W
|
92525W
92555-6P000 Clip0802--01 ~ ; S |
92555-6P000 |
US $9.79 |
||
