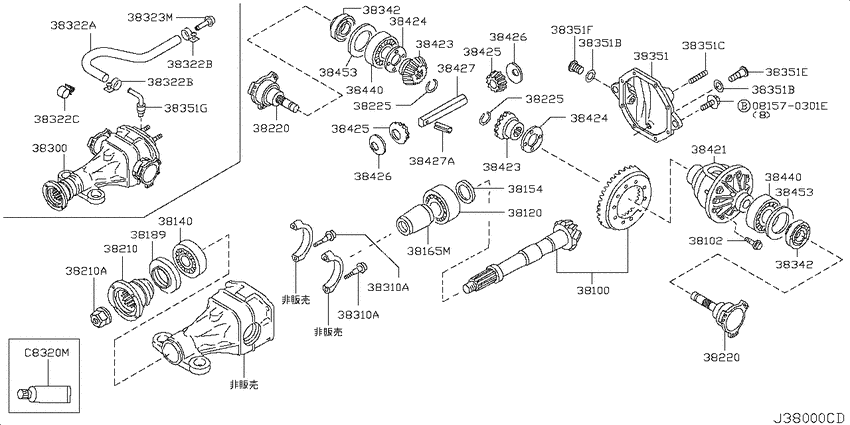

Rear final drive (2008-02-01 ~ ; VK45DE) Diagram Nissan PRESIDENT
- Year
- 2008 - 2012
- Sales region
- Japan
- Engine
- VK45DE
- transmission
- AT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081570301E
|
081570301E
08157-0301E BOLT |
08157-0301E |
US $0.81 |
||
|
38100
|
38100
38100-0C060 Gear Set-Final Drive0802--01 ~ ; VK45DE |
38100-0C060 |
US $688.18 |
||
|
38102
|
38102
381027S000 Bolt-Drive Gear0802--01 ~ ; VK45DE |
381027S000 |
US $3.75 |
||
|
38120
|
38120
38120-EC000
Bearing-Drive Pinion, Rear
0802--01 ~ ; VK45DE |
38120-EC000 |
— | ||
| replacement | |||||
|
38120
|
38120
381200C000 Bearing-Drive Pinion, Rear0802--01 ~ ; VK45DE |
381200C000 |
from US $49.22 |
||
|
38140
|
38140
38140-0C000
Bearing-Drive Pinion, Front
0802--01 ~ ; VK45DE; MADE IN JAPAN |
38140-0C000 |
— | ||
| replacement | |||||
|
38140
|
38140
381400C00A Bearing-Drive Pinion, Front0802--01 ~ ; VK45DE; MADE IN JAPAN |
381400C00A |
from US $26.85 |
||
|
38140
|
38140
381400C00A Bearing-Drive Pinion, Front0802--01 ~ ; VK45DE; MADE IN CHINA |
381400C00A |
from US $26.85 |
||
|
38154
|
38154
38154-0C000 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.05 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C000 |
from US $5.57 |
||
|
38154
|
38154
38154-0C001 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.08 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C001 |
from US $7.88 |
||
|
38154
|
38154
38154-0C002 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.11 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C002 |
US $7.92 |
||
|
38154
|
38154
381540C003 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.14 ｾﾝﾀｸｼﾃ ｼﾖｳ |
381540C003 |
US $7.92 |
||
|
38154
|
38154
38154-0C004 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.17 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C004 |
US $7.92 |
||
|
38154
|
38154
38154-0C005 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C005 |
US $7.92 |
||
|
38154
|
38154
38154-0C006 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.23 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C006 |
US $7.92 |
||
|
38154
|
38154
38154-0C007 Washer-Adjust, Drive Pinion0802--01 ~ ; VK45DE; T=3.26 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38154-0C007 |
US $7.92 |
||
|
38165M
|
38165M
381650C020 Spacer-Drive Pinion Bearing0802--01 ~ ; VK45DE |
381650C020 |
from US $12.90 |
||
|
38189
|
38189
38189P0117 Seal-Oil, Drive Pinion0802--01 ~ ; VK45DE |
38189P0117 |
from US $5.37 |
||
|
38210
|
38210
38210-0C006 Flange Assy-Companion0802--01 ~ ; VK45DE |
38210-0C006 |
US $115.20 |
||
|
38210
|
38210
4326201P1A Nut-Drive Pinion0802--01 ~ ; VK45DE |
4326201P1A |
from US $3.61 |
||
|
38210
|
38210
47960-AG060 Bracket-Sensor0802--01 ~ ; S |
47960-AG060 |
US $4.18 |
||
|
38210
|
38210
47961-AG060 Bracket-Sensor0802--01 ~ ; S |
47961-AG060 |
US $4.18 |
||
|
38210A
|
38210A
4326201P1A Nut-Drive Pinion0802--01 ~ ; VK45DE |
4326201P1A |
from US $3.61 |
||
|
38220
|
38220
38220-AR000 Flange Assy-Side0802--01 ~ ; VK45DE |
38220-AR000 |
US $210.24 |
||
|
38220
|
38220
38220-AR000 Flange Assy-Side0802--01 ~ ; VK45DE |
38220-AR000 |
US $210.24 |
||
|
38225
|
38225
38225-40P71 Circlip-Side Gear0802--01 ~ ; VK45DE |
38225-40P71 |
US $0.86 |
||
|
38225
|
38225
38225-40P71 Circlip-Side Gear0802--01 ~ ; VK45DE |
38225-40P71 |
US $0.86 |
||
|
38300
|
38300
383010C007 Final Drive Assy0802--01 ~ ; VK45DE |
383010C007 |
US $4,144 |
||
|
38310A
|
38310A
38315-N3100 Bolt-Bearing Cap0802--01 ~ ; VK45DE |
38315-N3100 |
US $4.71 |
||
|
38310A
|
38310A
38315-N3100 Bolt-Bearing Cap0802--01 ~ ; VK45DE |
38315-N3100 |
US $4.71 |
||
|
38322A
|
38322A
31098-AG020 Hose-Breather0802--01 ~ ; VK45DE |
31098-AG020 |
US $14.54 |
||
|
38322B
|
38322B
16439N210A Clamp-Hose0802--01 ~ ; VK45DE |
16439N210A |
from US $1.22 |
||
|
38322B
|
38322B
16439N210A Clamp-Hose0802--01 ~ ; VK45DE |
16439N210A |
from US $1.22 |
||
|
38322C
|
38322C
36458-11C01 Clip-Cable0802--01 ~ ; VK45DE |
36458-11C01 |
US $2.45 |
||
|
38323M
|
38323M
17235-V6000 Connector-Breather0802--01 ~ ; VK45DE |
17235-V6000 |
US $4.18 |
||
|
38342
|
38342
38342P9010 Seal-Oil, Differential Side0802--01 ~ ; VK45DE |
38342P9010 |
from US $4.47 |
||
|
38342
|
38342
38342P9010 Seal-Oil, Differential Side0802--01 ~ ; VK45DE |
38342P9010 |
from US $4.47 |
||
|
38351
|
38351
38351-0C000 Cover-Rear, Final Drive0802--01 ~ ; VK45DE |
38351-0C000 |
from US $101.95 |
||
|
38351
|
38351
110264N200 Gasket-Plug0802--01 ~ ; VK45DE |
110264N200 |
from US $2.72 |
||
|
38351
|
38351
38354-0C00A Stud0802--01 ~ ; VK45DE |
38354-0C00A |
from US $2.90 |
||
|
38351
|
38351
321034N21C
Plug-Filler
0802--01 ~ ; VK45DE |
321034N21C |
— | ||
| replacement | |||||
|
38351
|
38351
32103-1MG0B
Plug-Filler
0802--01 ~ ; VK45DE |
32103-1MG0B |
— | ||
|
38351
|
38351
321034N20C
Plug-Drain
0802--01 ~ ; VK45DE |
321034N20C |
— | ||
| replacement | |||||
|
38351
|
38351
32103-1MG0A Plug-Drain0802--01 ~ ; VK45DE |
32103-1MG0A |
US $9.02 |
||
|
38351
|
38351
3835610Y1A Breather0802--01 ~ ; VK45DE |
3835610Y1A |
US $7.34 |
||
|
38351B
|
38351B
110264N200 Gasket-Plug0802--01 ~ ; VK45DE |
110264N200 |
from US $2.72 |
||
|
38351B
|
38351B
110264N200 Gasket-Plug0802--01 ~ ; VK45DE |
110264N200 |
from US $2.72 |
||
|
38351C
|
38351C
38354-0C00A Stud0802--01 ~ ; VK45DE |
38354-0C00A |
from US $2.90 |
||
|
38351E
|
38351E
321034N21C
Plug-Filler
0802--01 ~ ; VK45DE |
321034N21C |
— | ||
| replacement | |||||
|
38351E
|
38351E
32103-1MG0B
Plug-Filler
0802--01 ~ ; VK45DE |
32103-1MG0B |
— | ||
|
38351F
|
38351F
321034N20C
Plug-Drain
0802--01 ~ ; VK45DE |
321034N20C |
— | ||
| replacement | |||||
|
38351F
|
38351F
32103-1MG0A Plug-Drain0802--01 ~ ; VK45DE |
32103-1MG0A |
US $9.02 |
||
|
38351G
|
38351G
3835610Y1A Breather0802--01 ~ ; VK45DE |
3835610Y1A |
US $7.34 |
||
|
38421
|
38421
38421-0C000 Case-Differential0802--01 ~ ; VK45DE |
38421-0C000 |
US $471.53 |
||
|
38423
|
38423
38423-0C000 Gear-Side0802--01 ~ ; VK45DE |
38423-0C000 |
US $81.50 |
||
|
38423
|
38423
38423-0C000 Gear-Side0802--01 ~ ; VK45DE |
38423-0C000 |
US $81.50 |
||
|
38424
|
38424
38424-0C000 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.75 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C000 |
US $4.18 |
||
|
38424
|
38424
38424-0C001 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.78 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C001 |
US $4.18 |
||
|
38424
|
38424
38424-0C002 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C002 |
US $4.18 |
||
|
38424
|
38424
38424-0C003 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C003 |
US $4.18 |
||
|
38424
|
38424
38424-0C004 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.87 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C004 |
US $4.18 |
||
|
38424
|
38424
38424-0C005 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C005 |
US $4.18 |
||
|
38424
|
38424
38424-0C006 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.93 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C006 |
US $4.18 |
||
|
38424
|
38424
38424-0C000 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.75 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C000 |
US $4.18 |
||
|
38424
|
38424
38424-0C001 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.78 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C001 |
US $4.18 |
||
|
38424
|
38424
38424-0C002 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.81 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C002 |
US $4.18 |
||
|
38424
|
38424
38424-0C003 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C003 |
US $4.18 |
||
|
38424
|
38424
38424-0C004 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.87 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C004 |
US $4.18 |
||
|
38424
|
38424
38424-0C005 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C005 |
US $4.18 |
||
|
38424
|
38424
38424-0C006 Washer-Thrust, Side Gear0802--01 ~ ; VK45DE; T=0.93 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-0C006 |
US $4.18 |
||
|
38425
|
38425
38425-21W0A Pinion-Mate0802--01 ~ ; VK45DE |
38425-21W0A |
from US $44.64 |
||
|
38425
|
38425
38425-21W0A Pinion-Mate0802--01 ~ ; VK45DE |
38425-21W0A |
from US $44.64 |
||
|
38426
|
38426
38426-21W00 Washer-Thrust, Pinion Mate0802--01 ~ ; VK45DE |
38426-21W00 |
US $3.46 |
||
|
38426
|
38426
38426-21W00 Washer-Thrust, Pinion Mate0802--01 ~ ; VK45DE |
38426-21W00 |
US $3.46 |
||
|
38427
|
38427
38427-0C000 Shaft-Pinion Mate0802--01 ~ ; VK45DE |
38427-0C000 |
US $54 |
||
|
38427
|
38427
38428U1500 Pin-Lock, Pinion Shaft0802--01 ~ ; VK45DE |
38428U1500 |
from US $0.50 |
||
|
38427A
|
38427A
38428U1500 Pin-Lock, Pinion Shaft0802--01 ~ ; VK45DE |
38428U1500 |
from US $0.50 |
||
|
38440
|
38440
384400C000 Bearing-Differential Side0802--01 ~ ; VK45DE |
384400C000 |
from US $32.66 |
||
|
38440
|
38440
384400C000 Bearing-Differential Side0802--01 ~ ; VK45DE |
384400C000 |
from US $32.66 |
||
|
38453
|
38453
38453N3100 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3100 |
from US $9.36 |
||
|
38453
|
38453
38453N3101 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.05 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3101 |
from US $9.73 |
||
|
38453
|
38453
38453N3102 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3102 |
from US $9.73 |
||
|
38453
|
38453
38453N3103 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.15 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3103 |
US $10.99 |
||
|
38453
|
38453
38453N3104 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3104 |
from US $10.06 |
||
|
38453
|
38453
38453N3105 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3105 |
from US $10.06 |
||
|
38453
|
38453
38453N3106 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3106 |
from US $9.56 |
||
|
38453
|
38453
38453N3107 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.35 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3107 |
from US $9.86 |
||
|
38453
|
38453
38453N3108 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.40 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3108 |
from US $9.64 |
||
|
38453
|
38453
38453N3109 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.45 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3109 |
US $12.05 |
||
|
38453
|
38453
38453N3110 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.50 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3110 |
US $10.99 |
||
|
38453
|
38453
38453N3111 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.55 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3111 |
US $10.99 |
||
|
38453
|
38453
38453N3112 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3112 |
from US $9.73 |
||
|
38453
|
38453
38453N3113 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.65 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3113 |
from US $10.30 |
||
|
38453
|
38453
38453N3100 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3100 |
from US $9.36 |
||
|
38453
|
38453
38453N3101 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.05 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3101 |
from US $9.73 |
||
|
38453
|
38453
38453N3102 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.10 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3102 |
from US $9.73 |
||
|
38453
|
38453
38453N3103 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.15 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3103 |
US $10.99 |
||
|
38453
|
38453
38453N3104 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.20 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3104 |
from US $10.06 |
||
|
38453
|
38453
38453N3105 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.25 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3105 |
from US $10.06 |
||
|
38453
|
38453
38453N3106 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.30 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3106 |
from US $9.56 |
||
|
38453
|
38453
38453N3107 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.35 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3107 |
from US $9.86 |
||
|
38453
|
38453
38453N3108 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.40 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3108 |
from US $9.64 |
||
|
38453
|
38453
38453N3109 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.45 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3109 |
US $12.05 |
||
|
38453
|
38453
38453N3110 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.50 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3110 |
US $10.99 |
||
|
38453
|
38453
38453N3111 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.55 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3111 |
US $10.99 |
||
|
38453
|
38453
38453N3112 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3112 |
from US $9.73 |
||
|
38453
|
38453
38453N3113 Shim-Adjust, Side Bearing0802--01 ~ ; VK45DE; T=2.65 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38453N3113 |
from US $10.30 |
||
|
C8320M
|
C8320M
C832000330 Sealant-Fluid0802--01 ~ ; VK45DE |
C832000330 |
US $96.91 |
||
