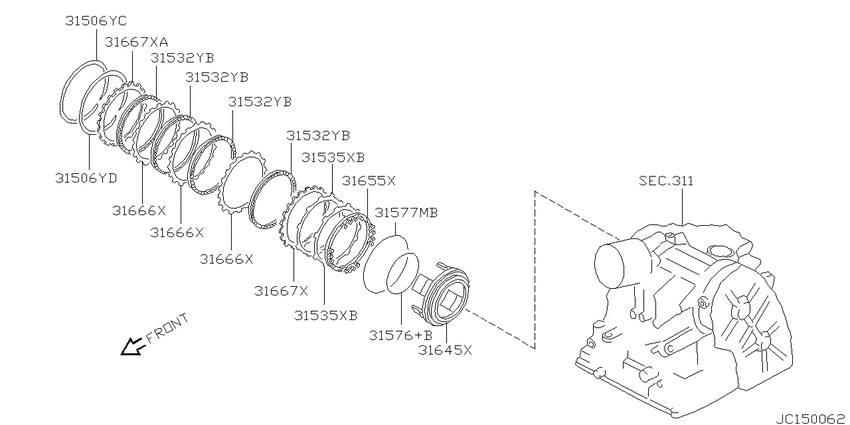

Clutch & band servo (1990-02-01 ~ 1992-09-01; $ロウ & リバース ブレーキ バンド; AT) Diagram Nissan PRIMERA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
31506YC
|
31506YC
31506-31X10 Ring-Snap9002--01 ~ 9209--01; AT |
31506-31X10 |
US $4.03 |
||
|
31506YD
|
31506YD
31506-31X10 Ring-Snap9002--01 ~ 9209--01; AT |
31506-31X10 |
US $4.03 |
||
|
31532YB
|
31532YB
31532-31X04 Plate Assy-Drive9002--01 ~ 9209--01; AT |
31532-31X04 |
US $35.42 |
||
|
31532YB
|
31532YB
31532-31X04 Plate Assy-Drive9002--01 ~ 9209--01; AT |
31532-31X04 |
US $35.42 |
||
|
31532YB
|
31532YB
31532-31X04 Plate Assy-Drive9002--01 ~ 9209--01; AT |
31532-31X04 |
US $35.42 |
||
|
31532YB
|
31532YB
31532-31X04 Plate Assy-Drive9002--01 ~ 9209--01; AT |
31532-31X04 |
US $35.42 |
||
|
31535XB
|
31535XB
31535-31X09 Plate-Dished9002--01 ~ 9209--01; AT |
31535-31X09 |
US $29.23 |
||
|
31535XB
|
31535XB
31535-31X09 Plate-Dished9002--01 ~ 9209--01; AT |
31535-31X09 |
US $29.23 |
||
|
31576+B
|
31576+B
31527-31X04 Seal-Lathe Cut Ring9002--01 ~ 9209--01; AT |
31527-31X04 |
US $8.06 |
||
| replacement | |||||
|
31576+B
|
31576+B
C1527-31X04
Seal-lathe cut ring
9002--01 ~ 9209--01; AT |
C1527-31X04 |
— | ||
|
31577MB
|
31577MB
31528-31X04 Seal-O Ring9002--01 ~ 9209--01; AT |
31528-31X04 |
US $8.06 |
||
|
31645X
|
31645X
31645-31X03 Piston-Low & Reverse Brake9002--01 ~ 9209--01; AT |
31645-31X03 |
US $55.01 |
||
|
31655X
|
31655X
31655-31X00 Retainer-Spring, Low & Reverse9002--01 ~ 9209--01; AT |
31655-31X00 |
US $22.75 |
||
|
31666X
|
31666X
31666-31X01 Plate-Driven9002--01 ~ 9209--01; AT |
31666-31X01 |
US $20.30 |
||
| replacement | |||||
|
31666X
|
31666X
31666-31X02 Plate-Driven9002--01 ~ 9209--01; AT |
31666-31X02 |
US $20.30 |
||
|
31666X
|
31666X
31666-31X01 Plate-Driven9002--01 ~ 9209--01; AT |
31666-31X01 |
US $20.30 |
||
| replacement | |||||
|
31666X
|
31666X
31666-31X02 Plate-Driven9002--01 ~ 9209--01; AT |
31666-31X02 |
US $20.30 |
||
|
31666X
|
31666X
31666-31X01 Plate-Driven9002--01 ~ 9209--01; AT |
31666-31X01 |
US $20.30 |
||
| replacement | |||||
|
31666X
|
31666X
31666-31X02 Plate-Driven9002--01 ~ 9209--01; AT |
31666-31X02 |
US $20.30 |
||
|
31667X
|
31667X
31667-31X15
Plate-Retaining
9002--01 ~ 9209--01; AT |
31667-31X15 |
— | ||
|
31667X
|
31667X
31667-31X10 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=3.6 |
31667-31X10 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X11 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=3.8 |
31667-31X11 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X12 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.0 |
31667-31X12 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X13 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.2 |
31667-31X13 |
US $18.71 |
||
|
31667X
|
31667X
31667-31X14 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.4 |
31667-31X14 |
US $17.71 |
||
|
31667X
|
31667X
31667-31X15
Plate-Retaining
9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.6 |
31667-31X15 |
— | ||
|
31667XA
|
31667XA
31667-31X10 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=3.6 |
31667-31X10 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X11 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=3.8 |
31667-31X11 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X12 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.0 |
31667-31X12 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X13 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.2 |
31667-31X13 |
US $18.71 |
||
|
31667XA
|
31667XA
31667-31X14 Plate-Retaining9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.4 |
31667-31X14 |
US $17.71 |
||
|
31667XA
|
31667XA
31667-31X15
Plate-Retaining
9002--01 ~ 9209--01; AT; ｾﾝﾀｸ T=4.6 |
31667-31X15 |
— | ||
