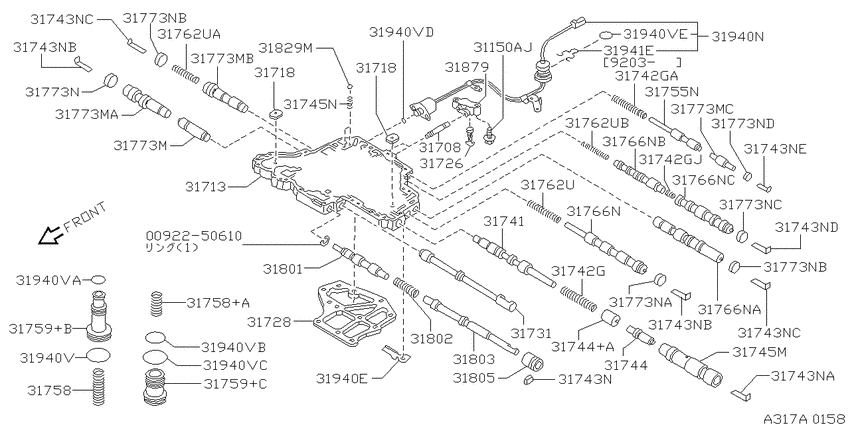

Control valve (atm) (1990-02-01 ~ 1992-09-01; ロアー RL4F03A／V; AT) Diagram Nissan PRIMERA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
31150AJ
|
31150AJ
01121-03701 BOLT9002--01 ~ 9209--01; AT |
01121-03701 |
US $0.86 |
||
|
31708
|
31708
31708-31X00 Tube-Connector, Control Valve9002--01 ~ 9209--01; AT |
31708-31X00 |
US $24.77 |
||
|
31713
|
31713
31713-31X05 Body-Lower, Control Valve9002--01 ~ 9006--01; 2WD.SR20D.AT |
31713-31X05 |
US $128.88 |
||
|
31713
|
31713
31713-31X13 Body-Lower, Control Valve9006--01 ~ 9209--01; 2WD.SR20D.AT |
31713-31X13 |
US $131.47 |
||
|
31718
|
31718
31718-01X00 Plate-Support, Accumulator9002--01 ~ 9209--01; AT |
31718-01X00 |
US $2.45 |
||
|
31718
|
31718
31718-01X00 Plate-Support, Accumulator9002--01 ~ 9209--01; AT |
31718-01X00 |
US $2.45 |
||
|
31726
|
31726
31726-31X00 Filter Assy-Oil, Auto Transmission9002--01 ~ 9209--01; AT |
31726-31X00 |
US $6.19 |
||
|
31728
|
31728
3172831X01 Strainer Assy-Oil9002--01 ~ 9209--01; AT |
3172831X01 |
from US $29.10 |
||
|
31731
|
31731
31731-31X00
Valve-Manual
9002--01 ~ 9209--01; AT |
31731-31X00 |
— | ||
| replacement | |||||
|
31731
|
31731
31731-31X02 Valve-Manual9002--01 ~ 9209--01; AT |
31731-31X02 |
US $37.84 |
||
|
31741
|
31741
31741-31X01 Valve-Pressure Regulator9002--01 ~ 9009--01; SR20D.AT |
31741-31X01 |
US $21.17 |
||
|
31741
|
31741
31741-31X02 Valve-Pressure Regulator9009--01 ~ 9209--01; SR20D.AT |
31741-31X02 |
US $21.17 |
||
|
31742G
|
31742G
31742-31X00 Spring-Pressure Regulator9002--01 ~ 9209--01; AT |
31742-31X00 |
US $2.45 |
||
|
31742G
|
31742G
31742-31X60 Spring-Valve9009--01 ~ 9209--01; AT |
31742-31X60 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X62 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X62 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X15 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X15 |
US $1.73 |
||
|
31742G
|
31742G
31742-31X64 Spring-Valve9009--01 ~ 9209--01; SR20D.AT |
31742-31X64 |
US $1.73 |
||
|
31742G
|
31742G
31742-31X03 Spring-Kick Down Modifier9009--01 ~ 9209--01; AT |
31742-31X03 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X16 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X16 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X63 Spring-Valve9204--01 ~ 9209--01; SR20D.AT; L10 D=17 |
31742-31X63 |
US $4.18 |
||
| replacement | |||||
|
31742G
|
31742G
31742-31X70 Spring-Valve9204--01 ~ 9209--01; SR20D.AT; L10 D=17 |
31742-31X70 |
US $4.18 |
||
|
31742G
|
31742G
C1742-31X63 Spring-Valve9002--01 ~ 9204--01; SR20D.AT; L10 D=12.6 |
C1742-31X63 |
US $4.18 |
||
|
31742G
|
31742G
31742-31X06 Spring-Relief Valve9002--01 ~ 9209--01; AT |
31742-31X06 |
US $0.86 |
||
|
31742G
|
31742G
3174231X07 Spring-Throttle Modulator9009--01 ~ 9209--01; AT |
3174231X07 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X18 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X18 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X08 Spring-Lock Up Control9009--01 ~ 9209--01; AT |
31742-31X08 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X19 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X19 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X09 Spring-4Th & 2Nd Sequent9009--01 ~ 9209--01; AT |
31742-31X09 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X20 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X20 |
US $0.86 |
||
|
31742G
|
31742G
31742-31X23 Spring-Valve9002--01 ~ 9209--01; SR20D.AT |
31742-31X23 |
US $0.86 |
||
|
31742GA
|
31742GA
31742-31X60 Spring-Valve9009--01 ~ 9209--01; AT |
31742-31X60 |
US $0.86 |
||
|
31742GA
|
31742GA
31742-31X62 Spring-Valve9002--01 ~ 9009--01; SR20D.AT |
31742-31X62 |
US $0.86 |
||
|
31742GJ
|
31742GJ
31742-31X23 Spring-Valve9002--01 ~ 9209--01; SR20D.AT |
31742-31X23 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X00 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X00 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9009--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X03 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X03 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X10 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X10 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X05 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X05 |
US $0.86 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X02 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743N
|
31743N
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NA
|
31743NA
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NB
|
31743NB
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NB
|
31743NB
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NC
|
31743NC
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NC
|
31743NC
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743ND
|
31743ND
31743-31X01 Plate-Retainer9002--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NE
|
31743NE
31743-31X01 Plate-Retainer9009--01 ~ 9209--01; AT |
31743-31X01 |
US $5.33 |
||
|
31744
|
31744
31744-31X04 Plug-Pressure Regulator9002--01 ~ 9009--01; SR20D.AT |
31744-31X04 |
US $10.80 |
||
|
31744
|
31744
31744-31X07 Plug-Pressure Regulator9009--01 ~ 9209--01; SR20D.AT |
31744-31X07 |
US $10.80 |
||
|
31744
|
31744
31744-31X05 Plug-Pressure Regulator9002--01 ~ 9209--01; SR20D.AT |
31744-31X05 |
US $10.80 |
||
|
31744+A
|
31744+A
31744-31X05 Plug-Pressure Regulator9002--01 ~ 9209--01; SR20D.AT |
31744-31X05 |
US $10.80 |
||
|
31745M
|
31745M
31745-31X02 Sleeve-Pressure Regulator9002--01 ~ 9009--01; SR20D.AT |
31745-31X02 |
US $24.34 |
||
|
31745M
|
31745M
31745-31X04 Sleeve-Pressure Regulator9009--01 ~ 9209--01; SR20D.AT |
31745-31X04 |
US $24.77 |
||
|
31745N
|
31745N
31872-31X00 Spring-Relief Valve9002--01 ~ 9209--01; AT |
31872-31X00 |
US $1.73 |
||
|
31755N
|
31755N
31772-31X00 Valve-Overrun Clutch Control9002--01 ~ 9209--01; AT |
31772-31X00 |
US $7.20 |
||
|
31755N
|
31755N
31772-31X01 Valve-Pressure Modifier9002--01 ~ 9009--01; AT |
31772-31X01 |
US $10.80 |
||
|
31755N
|
31755N
31772-31X13 Valve-Spool9009--01 ~ 9209--01; SR20D.AT |
31772-31X13 |
US $10.80 |
||
|
31755N
|
31755N
31772-41X01 Valve-Spool9002--01 ~ 9209--01; AT |
31772-41X01 |
US $10.12 |
||
|
31755N
|
31755N
31772-31X06 Valve-Accumulator Control9002--01 ~ 9209--01; AT |
31772-31X06 |
US $8.06 |
||
|
31755N
|
31755N
31772-21X00 Valve-Spool9002--01 ~ 9209--01; AT |
31772-21X00 |
US $6.94 |
||
|
31755N
|
31755N
31772-31X07 Valve-1St Reducing9002--01 ~ 9209--01; AT |
31772-31X07 |
US $12.53 |
||
|
31755N
|
31755N
31772-31X08 Valve-Relief9002--01 ~ 9209--01; AT |
31772-31X08 |
US $10.80 |
||
|
31755N
|
31755N
31772-31X03 Valve-Throttle Modulator9002--01 ~ 9209--01; AT |
31772-31X03 |
US $6.19 |
||
|
31755N
|
31755N
31772-21X00 Valve-Spool9002--01 ~ 9209--01; AT |
31772-21X00 |
US $6.94 |
||
|
31755N
|
31755N
31772-31X10 Valve-Spool9002--01 ~ 9209--01; SR20D.AT |
31772-31X10 |
US $10.80 |
||
|
31755N
|
31755N
31772-31X05 Valve-4Th & 2Nd Sequent9002--01 ~ 9209--01; AT |
31772-31X05 |
US $7.20 |
||
|
31762U
|
31762U
31762-31X03 Spring-Shift Valve9002--01 ~ 9009--01; SR20D.AT |
31762-31X03 |
US $1.73 |
||
|
31762U
|
31762U
31762-31X11 Spring-Shift Valve9009--01 ~ 9209--01; AT |
31762-31X11 |
US $1.73 |
||
|
31762U
|
31762U
31762-31X01 Spring-2Nd & 3Rd Shift9009--01 ~ 9209--01; AT |
31762-31X01 |
US $1.73 |
||
|
31762U
|
31762U
31762-31X05 Spring-Shift Valve9002--01 ~ 9009--01; SR20D.AT |
31762-31X05 |
US $1.73 |
||
|
31762U
|
31762U
3176231X02 Spring-Valve, Shift9009--01 ~ 9209--01; AT |
3176231X02 |
US $1.73 |
||
|
31762U
|
31762U
31762-31X06 Spring-Shift Valve9002--01 ~ 9009--01; SR20D.AT |
31762-31X06 |
US $1.73 |
||
|
31762UA
|
31762UA
31762-31X01 Spring-2Nd & 3Rd Shift9009--01 ~ 9209--01; AT |
31762-31X01 |
US $1.73 |
||
|
31762UA
|
31762UA
31762-31X05 Spring-Shift Valve9002--01 ~ 9009--01; SR20D.AT |
31762-31X05 |
US $1.73 |
||
|
31762UB
|
31762UB
3176231X02 Spring-Valve, Shift9009--01 ~ 9209--01; AT |
3176231X02 |
US $1.73 |
||
|
31762UB
|
31762UB
31762-31X06 Spring-Shift Valve9002--01 ~ 9009--01; SR20D.AT |
31762-31X06 |
US $1.73 |
||
|
31766N
|
31766N
31766-31X00 Valve-3Rd & 4Th Shift9002--01 ~ 9209--01; AT |
31766-31X00 |
US $10.80 |
||
|
31766N
|
31766N
31766-31X08 Valve-Shift9002--01 ~ 9009--01; SR20D.AT |
31766-31X08 |
US $10.80 |
||
|
31766N
|
31766N
31766-31X16 Valve-Shift9009--01 ~ 9209--01; SR20D.AT |
31766-31X16 |
US $10.80 |
||
|
31766N
|
31766N
31766-31X12 Valve-Shift9002--01 ~ 9209--01; SR20D.AT |
31766-31X12 |
US $14.40 |
||
|
31766N
|
31766N
31766-31X13 Valve-Shift9002--01 ~ 9209--01; SR20D.AT |
31766-31X13 |
US $10.80 |
||
|
31766NA
|
31766NA
31766-31X08 Valve-Shift9002--01 ~ 9009--01; SR20D.AT |
31766-31X08 |
US $10.80 |
||
|
31766NA
|
31766NA
31766-31X16 Valve-Shift9009--01 ~ 9209--01; SR20D.AT |
31766-31X16 |
US $10.80 |
||
|
31766NB
|
31766NB
31766-31X12 Valve-Shift9002--01 ~ 9209--01; SR20D.AT |
31766-31X12 |
US $14.40 |
||
|
31766NC
|
31766NC
31766-31X13 Valve-Shift9002--01 ~ 9209--01; SR20D.AT |
31766-31X13 |
US $10.80 |
||
|
31773M
|
31773M
31773-31X00 Plug-3Rd & 4Th Shift9002--01 ~ 9209--01; AT |
31773-31X00 |
US $17.71 |
||
|
31773M
|
31773M
31773-31X01 Plug9002--01 ~ 9209--01; AT |
31773-31X01 |
US $7.34 |
||
|
31773M
|
31773M
31773-31X02 Plug9002--01 ~ 9209--01; AT |
31773-31X02 |
US $5.18 |
||
|
31773M
|
31773M
31773-31X03 Plug9002--01 ~ 9209--01; AT |
31773-31X03 |
US $5.62 |
||
|
31773MA
|
31773MA
31773-31X01 Plug9002--01 ~ 9209--01; AT |
31773-31X01 |
US $7.34 |
||
|
31773MB
|
31773MB
31773-31X02 Plug9002--01 ~ 9209--01; AT |
31773-31X02 |
US $5.18 |
||
|
31773MC
|
31773MC
31773-31X03 Plug9002--01 ~ 9209--01; AT |
31773-31X03 |
US $5.62 |
||
|
31773N
|
31773N
31845-31X00 Plug9002--01 ~ 9209--01; AT |
31845-31X00 |
US $6.19 |
||
|
31773N
|
31773N
31845-31X01 Plug9002--01 ~ 9209--01; AT |
31845-31X01 |
US $6.19 |
||
|
31773N
|
31773N
31845-31X01 Plug9002--01 ~ 9209--01; AT |
31845-31X01 |
US $6.19 |
||
|
31773N
|
31773N
31845-31X02 Plug9002--01 ~ 9209--01; AT |
31845-31X02 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X03 Plug9002--01 ~ 9209--01; AT |
31845-31X03 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X04 Plug-Pressure Modifier9002--01 ~ 9209--01; AT |
31845-31X04 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X02 Plug9002--01 ~ 9203--01; AT |
31845-31X02 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X03 Plug9203--01 ~ 9209--01; SR18DI.AT +(TS+TM+TE).AT |
31845-31X03 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X05 Plug9002--01 ~ 9209--01; AT |
31845-31X05 |
US $5.18 |
||
|
31773N
|
31773N
31845-27X61 Plug-Checking Ball9002--01 ~ 9209--01; AT |
31845-27X61 |
US $4.18 |
||
|
31773N
|
31773N
31845-27X61 Plug-Checking Ball9002--01 ~ 9209--01; AT |
31845-27X61 |
US $4.18 |
||
|
31773N
|
31773N
31845-31X07 Plug9002--01 ~ 9209--01; AT |
31845-31X07 |
US $2.45 |
||
|
31773N
|
31773N
31845-31X08 Plug9002--01 ~ 9209--01; AT |
31845-31X08 |
US $12.96 |
||
|
31773NA
|
31773NA
31845-31X01 Plug9002--01 ~ 9209--01; AT |
31845-31X01 |
US $6.19 |
||
|
31773NB
|
31773NB
31845-31X01 Plug9002--01 ~ 9209--01; AT |
31845-31X01 |
US $6.19 |
||
|
31773NB
|
31773NB
31845-31X01 Plug9002--01 ~ 9209--01; AT |
31845-31X01 |
US $6.19 |
||
|
31773NC
|
31773NC
31845-31X02 Plug9002--01 ~ 9209--01; AT |
31845-31X02 |
US $2.45 |
||
|
31773ND
|
31773ND
31845-31X03 Plug9002--01 ~ 9209--01; AT |
31845-31X03 |
US $2.45 |
||
|
31801
|
31801
31801-31X00 Valve-Throttle Vacuum9002--01 ~ 9209--01; AT |
31801-31X00 |
US $6.19 |
||
|
31802
|
31802
31802-31X02 Spring-Throttle Relief9002--01 ~ 9009--01; SR20D.AT |
31802-31X02 |
US $1.73 |
||
|
31802
|
31802
31802-31X06 Spring-Throttle Relief9009--01 ~ 9209--01; SR20D.AT |
31802-31X06 |
US $1.73 |
||
|
31803
|
31803
31803-31X00 Valve-Detent9002--01 ~ 9209--01; AT |
31803-31X00 |
US $19.44 |
||
|
31805
|
31805
31805-31X00 Plug-Throttle9002--01 ~ 9209--01; AT |
31805-31X00 |
US $6.19 |
||
|
31829M
|
31829M
32829-26760 Ball-Check9002--01 ~ 9209--01; AT |
32829-26760 |
from US $0.74 |
||
|
31879
|
31879
31879-31X00 Connector9002--01 ~ 9209--01; AT |
31879-31X00 |
US $9.07 |
||
|
31940E
|
31940E
31707-31X00 Clip-Harness9002--01 ~ 9209--01; AT |
31707-31X00 |
US $9.36 |
||
|
31940N
|
31940N
31940-31X01 Solenoid Assy-Control9002--01 ~ 9209--01; AT |
31940-31X01 |
US $95.90 |
||
|
31940V
|
31940V
3152641X09 Seal-O Ring9002--01 ~ 9209--01; AT |
3152641X09 |
US $2.36 |
||
|
31940V
|
31940V
3152631X12 Seal-O Ring9002--01 ~ 9209--01; AT |
3152631X12 |
US $2.78 |
||
|
31940VD
|
31940VD
3152641X09 Seal-O Ring9002--01 ~ 9209--01; AT |
3152641X09 |
US $2.36 |
||
|
31940VE
|
31940VE
3152631X12 Seal-O Ring9002--01 ~ 9209--01; AT |
3152631X12 |
US $2.78 |
||
