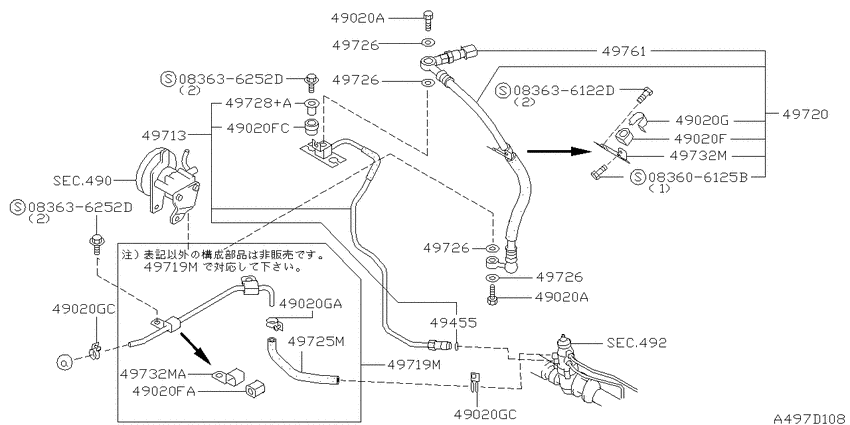

Power steering piping (1994-10-01 ~ ; パ-ト1; 2WD.SR20DE.AT +SR18DE.AT) Diagram Nissan PRIMERA
- Year
- 1992 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- TM
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606125B
|
083606125B
083606125B Screw |
083606125B |
US $1.73 |
||
|
083636122D
|
083636122D
08363-6122D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6122D |
— | ||
|
083636252D
|
083636252D
083636252D
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636252D |
— | ||
|
083636252D
|
083636252D
083636252D
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636252D |
— | ||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020A
|
49020A
0161900011 BOLT9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0161900011 |
from US $3.77 |
||
|
49020A
|
49020A
0161900011 BOLT9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0161900011 |
from US $3.77 |
||
|
49020F
|
49020F
49733-C9900 Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49733-C9900 |
US $1.73 |
||
|
49020F
|
49020F
49733-55M00 Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49733-55M00 |
US $4.57 |
||
|
49020F
|
49020F
18316S3260 Bush9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
18316S3260 |
from US $3.44 |
||
|
49020F
|
49020F
18316S3260 Bush9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
18316S3260 |
from US $3.44 |
||
|
49020F
|
49020F
49733-01J60 Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49733-01J60 |
US $7.34 |
||
|
49020F
|
49020F
49733-01C00 Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49733-01C00 |
US $5.33 |
||
|
49020F
|
49020F
18316S3260 Bush9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
18316S3260 |
from US $3.44 |
||
|
49020F
|
49020F
49733-50J00 Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49733-50J00 |
US $5.33 |
||
|
49020FA
|
49020FA
49733-55M00 Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49733-55M00 |
US $4.57 |
||
|
49020FC
|
49020FC
18316S3260 Bush9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
18316S3260 |
from US $3.44 |
||
|
49020G
|
49020G
49732-79911 Clamp9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-79911 |
US $6.19 |
||
| replacement | |||||
|
49020G
|
49020G
497327991B Clamp9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
497327991B |
US $6.19 |
||
|
49020G
|
49020G
0155500691 CLAMP9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0155500691 |
from US $2.11 |
||
|
49020G
|
49020G
0155500691 CLAMP9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0155500691 |
from US $2.11 |
||
|
49020G
|
49020G
0155500691 CLAMP9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0155500691 |
from US $2.11 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
497292J01B |
from US $1.94 |
||
|
49020GA
|
49020GA
0155500691 CLAMP9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0155500691 |
from US $2.11 |
||
|
49020GC
|
49020GC
0155500691 CLAMP9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0155500691 |
from US $2.11 |
||
|
49020GC
|
49020GC
0155500691 CLAMP9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
0155500691 |
from US $2.11 |
||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
49455
|
49455
4974501E00 SEAL-O RING9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
4974501E00 |
US $2.78 |
||
|
49713
|
49713
49713-50J00 ﾁﾕ-ﾌﾞ,ｺﾈｸﾀ- ﾂ- ﾎﾟﾝﾌﾟ9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49713-50J00 |
US $148.32 |
||
|
49719M
|
49719M
49726-50J00 ﾎ-ｽ & ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾟﾚﾂｼﾔｰ ps9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49726-50J00 |
US $97.92 |
||
|
49719M
|
49719M
49726-50J22 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘｰ,ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ9209--01 ~ 9310--01; 2WD.SR20DE.AT +SR18DE.AT |
49726-50J22 |
US $257.76 |
||
|
49719M
|
49719M
49726-50J23 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘｰ,ﾊﾟﾜｰ ｽﾃｱﾘﾝｸﾞ9310--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49726-50J23 |
US $240.48 |
||
|
49720
|
49720
4972053J60 ﾎ-ｽ ｱﾝﾄﾞ ﾁﾕ-ﾌﾞ9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
4972053J60 |
US $257.76 |
||
|
49725M
|
49725M
49725-50J00 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49725-50J00 |
US $32.83 |
||
|
49725M
|
49725M
4972550J10 Hose-Return, Power Steering9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
4972550J10 |
US $21.46 |
||
|
49725M
|
49725M
49725-50J20 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49725-50J20 |
US $32.83 |
||
|
49725M
|
49725M
49725-50J12 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49725-50J12 |
US $32.83 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49726Y0100 |
from US $1.74 |
||
|
49726
|
49726
49726Y0100 Washer-Copper9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49726Y0100 |
from US $1.74 |
||
|
49728+A
|
49728+A
49728-55S00
Collar
9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+A
|
49728+A
49728-55S0A Collar-Insulator9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49728-55S0A |
US $2.64 |
||
|
49732M
|
49732M
49732-53J00 ﾌﾞﾗｹﾂﾄ,ﾎ-ｽ9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-53J00 |
US $15.98 |
||
|
49732M
|
49732M
49732-50J10 Clamp9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-50J10 |
US $6.34 |
||
|
49732M
|
49732M
49732-58J00 Bracket-Power Steering Tube9410--01 ~ ; 2WD.SR20DE.AT +SR18DE.AT |
49732-58J00 |
US $10.51 |
||
|
49732M
|
49732M
49732-50J00 Bracket-Power Steering Tube9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-50J00 |
US $8.06 |
||
|
49732M
|
49732M
49732-50J05 Bracket-Power Steering Tube9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-50J05 |
US $8.50 |
||
|
49732M
|
49732M
49732-85E11 BRACKET-POWER STEERING TUBE9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-85E11 |
US $10.22 |
||
|
49732M
|
49732M
49732-51E01 BRACKET-POWER STEERING TUBE9209--01 ~ 9310--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-51E01 |
US $10.08 |
||
|
49732M
|
49732M
49732-50J12 Bracket-Power Steering Tube9209--01 ~ 9310--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-50J12 |
US $10.37 |
||
|
49732M
|
49732M
49732-50J13 ﾌﾞﾗｹﾂﾄ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾁﾕ-ﾌﾞ9310--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-50J13 |
US $14.69 |
||
|
49732MA
|
49732MA
49732-50J10 Clamp9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49732-50J10 |
US $6.34 |
||
|
49732MA
|
49732MA
49732-58J00 Bracket-Power Steering Tube9410--01 ~ ; 2WD.SR20DE.AT +SR18DE.AT |
49732-58J00 |
US $10.51 |
||
|
49761
|
49761
49761V5400 Switch-Pressure, Power Steering9209--01 ~ 9409--01; 2WD.SR20DE.AT +SR18DE.AT |
49761V5400 |
US $59.04 |
||
