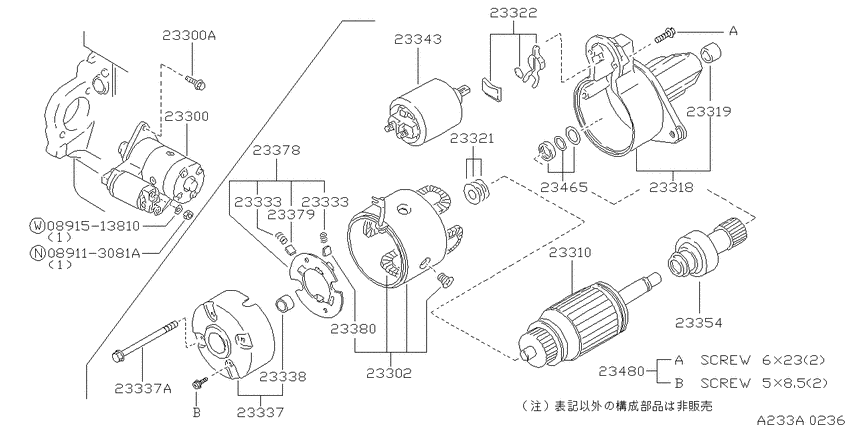

Starter motor (1990-02-01 ~ 1992-09-01; 三菱; SR18DI.MT) Diagram Nissan PRIMERA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 2WD
- transmission
- MT
- grade
- CI
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
23300
|
23300
23300-53J10 Motor Assy-Starter9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23300-53J10 |
US $1,271.57 |
||
|
23300
|
23300
01121-05211 BOLT9002--01 ~ 9209--01; SR18DI.MT |
01121-05211 |
US $5.04 |
||
|
23300A
|
23300A
01121-05211 BOLT9002--01 ~ 9209--01; SR18DI.MT |
01121-05211 |
US $5.04 |
||
|
23302
|
23302
23302-53J10 Yoke Assy9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23302-53J10 |
US $298.78 |
||
|
23310
|
23310
23310-53J10 Armature Assy9002--01 ~ 9006--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23310-53J10 |
US $345.50 |
||
|
23310
|
23310
23310-53J11 Armature Assy9006--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23310-53J11 |
US $419.14 |
||
|
23318
|
23318
23318-53J10 Case Assy-Gear9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23318-53J10 |
US $156.96 |
||
|
23318
|
23318
23318-53J11 Case Assy-Gear9010--01 ~ 9209--01; 2WD.SR20D +SR18; ﾐﾂﾋﾞｼ |
23318-53J11 |
US $119.23 |
||
|
23319
|
23319
23319-25V10 Metal-Gear Case9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23319-25V10 |
US $18.86 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-42L10 Lever Set-Shift9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23322-42L10 |
US $13.10 |
||
|
23333
|
23333
23333M1510 Spring-Brush9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333M1510 Spring-Brush9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-42L10 Cover Assy-Rear9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23337-42L10 |
US $33.55 |
||
|
23337
|
23337
23340-M8010 Bolt-Through9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23343
|
23343
23343-D0511 Switch Assy-Magnetic9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23343-D0511 |
US $181.44 |
||
|
23354
|
23354
23354-53J10 Clutch Assy9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23354-53J10 |
US $321.43 |
||
|
23378
|
23378
23378-53J10 Holder Assy-Brush9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23378-53J10 |
US $58.61 |
||
|
23379
|
23379
23380M8311 Brush-Minus9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380M8311 Brush-Minus9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23480
|
23480
23480-M0110 Screw Set9002--01 ~ 9209--01; SR18DI.MT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
