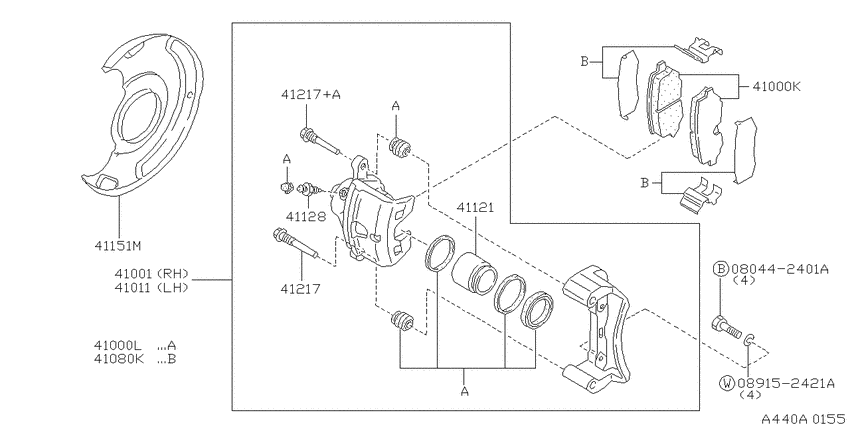

Front brake (1990-02-01 ~ 1992-09-01; SR18DI) Diagram Nissan PRIMERA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 2WD
- transmission
- AT
- grade
- CI
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040NS005 Pad Kit-Disc Brake9002--01 ~ 9209--01; SR18DI; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
AY040NS005 |
US $142.56 |
||
|
41000L
|
41000L
AY600NS038 Seal Kit-Disc Brake9002--01 ~ 9209--01; SR18DI |
AY600NS038 |
US $66.10 |
||
|
41001
|
41001
41001-51E00 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS9002--01 ~ 9209--01; SR18DI |
41001-51E00 |
US $399.31 |
||
|
41011
|
41011
41011-51E00 CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS9002--01 ~ 9209--01; SR18DI |
41011-51E00 |
US $399.31 |
||
|
41080K
|
41080K
41080-51E25 HARDWARE KIT-FRONT DISC BRAKE PAD9002--01 ~ 9209--01; SR18DI |
41080-51E25 |
US $82.94 |
||
|
41121
|
41121
4112111L01 Piston-Cylinder9002--01 ~ 9209--01; SR18DI |
4112111L01 |
US $68.11 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
9002--01 ~ 9209--01; SR18DI |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder9002--01 ~ 9209--01; SR18DI |
4112880Z0A |
US $7.35 |
||
|
41151M
|
41151M
4115164J00 Plate-Baffle9002--01 ~ 9209--01; SR18DI |
4115164J00 |
US $32.26 |
||
|
41217
|
41217
41140-D4401 Pin9002--01 ~ 9209--01; SR18DI |
41140-D4401 |
from US $7.84 |
||
|
41217
|
41217
44140V6701 Pin-Lock9002--01 ~ 9209--01; SR18DI |
44140V6701 |
US $9.69 |
||
|
41217+A
|
41217+A
44140V6701 Pin-Lock9002--01 ~ 9209--01; SR18DI |
44140V6701 |
US $9.69 |
||
