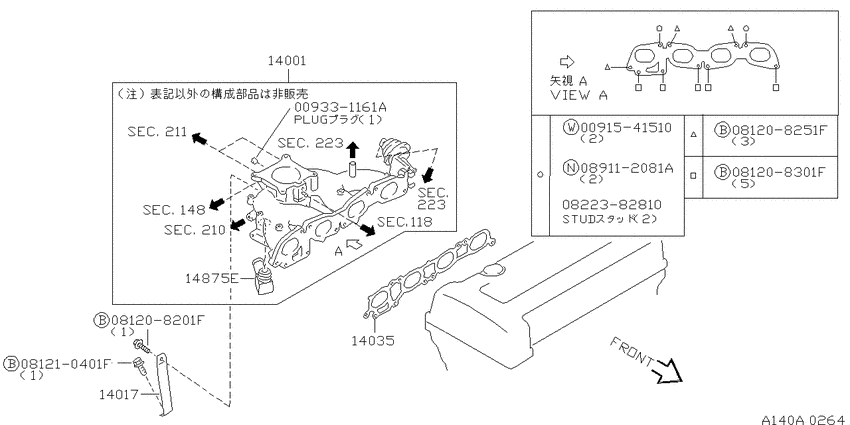

Manifold (1990-02-01 ~ 1992-09-01; インテーク マニホールド; SR18DI) Diagram Nissan PRIMERA
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- SR18DI
- drive
- 2WD
- transmission
- AT
- grade
- CI
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0091541510
|
0091541510
00915-41510 WASHER-PLAIN |
00915-41510 |
US $1.93 |
||
|
009331161A
|
009331161A
009331161A
Plug-Welch
|
009331161A |
— | ||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208301F
|
081208301F
08120-8301F Bolt-hexagon |
08120-8301F |
from US $0.57 |
||
|
081210401F
|
081210401F
08121-0401F
Bolt-hexagon
|
08121-0401F |
— | ||
|
0822382810
|
0822382810
0822382810 STUD |
0822382810 |
from US $0.50 |
||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
14001
|
14001
14001-64J03 Manifold Assy-Intake9002--01 ~ 9209--01; SR18DI |
14001-64J03 |
US $314.35 |
||
|
14017
|
14017
14017-64J01 Support-Manifold9002--01 ~ 9209--01; SR18DI |
14017-64J01 |
US $27.36 |
||
|
14035
|
14035
1403564J00 Gasket-Manifold9002--01 ~ 9209--01; SR18DI; ﾆﾁｱｽ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1403564J00 |
US $23.18 |
||
|
14035
|
14035
14035-64J10 Gasket-Manifold9002--01 ~ 9209--01; SR18DI; ｳﾁﾔﾏ ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
14035-64J10 |
US $23.18 |
||
|
148
|
Secondary air system
148
|
||||
|
14875E
|
14875E
14876-64J05 Connector-Intake Manifold Water9002--01 ~ 9209--01; SR18DI |
14876-64J05 |
US $11.52 |
||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
