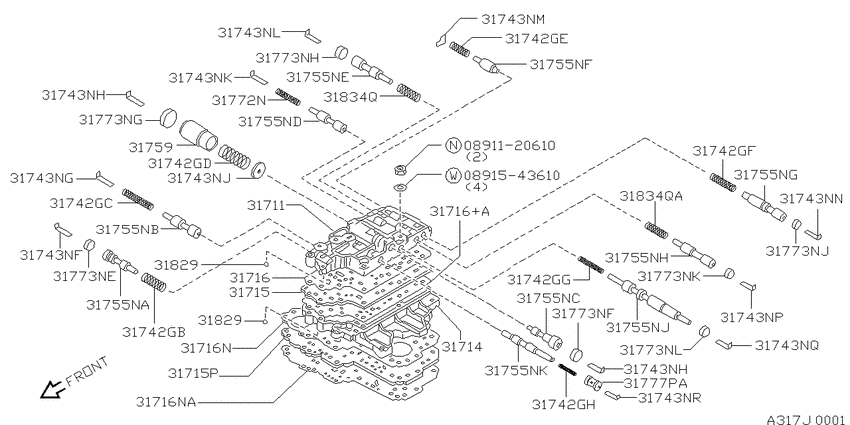

Control valve (atm) (1991-07-01 ~ 1993-09-01; アッパー; AT) Diagram Nissan PRIMERA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- GT
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
31711
|
31711
31711-31X03 Body-Upper, Control Valve9107--01 ~ 9304--01; AT |
31711-31X03 |
US $108.72 |
||
| replacement | |||||
|
31711
|
31711
31711-31X11 Body-Upper, Control Valve9107--01 ~ 9304--01; AT |
31711-31X11 |
US $136.51 |
||
|
31711
|
31711
31711-33X01 Body-Upper, Control Valve9309--01 ~ 9409--01; AT |
31711-33X01 |
US $136.51 |
||
|
31714
|
31714
31714-31X00 Body-Inter, Control Valve9107--01 ~ 9304--01; AT |
31714-31X00 |
US $71.14 |
||
|
31714
|
31714
31714-33X00 Body-Inter, Control Valve9309--01 ~ 9409--01; AT |
31714-33X00 |
US $71.14 |
||
|
31715
|
31715
31715-31X02 Plate-Separator9107--01 ~ 9304--01; AT; ｱｯﾊﾟｰ |
31715-31X02 |
US $22.75 |
||
|
31715
|
31715
31715-33X00 Plate-Separator9309--01 ~ 9409--01; AT; ｱｯﾊﾟｰ |
31715-33X00 |
US $22.75 |
||
|
31715
|
31715
31719-31X08 Plate-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31719-31X08 |
US $22.75 |
||
|
31715
|
31715
31719-33X00 Plate-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31719-33X00 |
US $22.75 |
||
|
31715P
|
31715P
31719-31X08 Plate-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31719-31X08 |
US $22.75 |
||
|
31715P
|
31715P
31719-33X00 Plate-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31719-33X00 |
US $22.75 |
||
|
31716
|
31716
31716-31X00 Gasket-Separator9107--01 ~ 9304--01; AT; ｱｯﾊﾟｰ |
31716-31X00 |
US $9.56 |
||
|
31716
|
31716
31716-80X00 Gasket-Separator9309--01 ~ 9409--01; AT; ｱｯﾊﾟｰ |
31716-80X00 |
US $8.93 |
||
|
31716
|
31716
31716-31X01 Gasket-Separator9107--01 ~ 9304--01; AT; ｱｯﾊﾟｰ |
31716-31X01 |
US $9.56 |
||
|
31716
|
31716
31716-80X01 Gasket-Separator9309--01 ~ 9409--01; AT; ｱｯﾊﾟｰ |
31716-80X01 |
US $8.93 |
||
|
31716
|
31716
31717-31X02 Gasket-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31717-31X02 |
US $8.59 |
||
|
31716
|
31716
31717-80X02 Gasket-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31717-80X02 |
US $7.92 |
||
|
31716
|
31716
31717-31X03 Gasket-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31717-31X03 |
US $8.59 |
||
|
31716
|
31716
31717-80X03 Gasket-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31717-80X03 |
US $7.92 |
||
|
31716+A
|
31716+A
31716-31X01 Gasket-Separator9107--01 ~ 9304--01; AT; ｱｯﾊﾟｰ |
31716-31X01 |
US $9.56 |
||
|
31716+A
|
31716+A
31716-80X01 Gasket-Separator9309--01 ~ 9409--01; AT; ｱｯﾊﾟｰ |
31716-80X01 |
US $8.93 |
||
|
31716N
|
31716N
31717-31X02 Gasket-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31717-31X02 |
US $8.59 |
||
|
31716N
|
31716N
31717-80X02 Gasket-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31717-80X02 |
US $7.92 |
||
|
31716N
|
31716N
31717-31X03 Gasket-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31717-31X03 |
US $8.59 |
||
|
31716N
|
31716N
31717-80X03 Gasket-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31717-80X03 |
US $7.92 |
||
|
31716NA
|
31716NA
31717-31X03 Gasket-Separator9107--01 ~ 9304--01; AT; ﾛｱｰ |
31717-31X03 |
US $8.59 |
||
|
31716NA
|
31716NA
31717-80X03 Gasket-Separator9309--01 ~ 9409--01; AT; ﾛｱｰ |
31717-80X03 |
US $7.92 |
||
|
31742GB
|
31742GB
31742-31X64 Spring-Valve9107--01 ~ 9304--01; AT |
31742-31X64 |
US $1.73 |
||
|
31742GB
|
31742GB
31742-80X16 Spring-Valve9309--01 ~ 9409--01; AT; L13 |
31742-80X16 |
US $2.45 |
||
|
31742GC
|
31742GC
31742-31X03 Spring-Kick Down Modifier9107--01 ~ 9304--01; AT |
31742-31X03 |
US $0.86 |
||
|
31742GC
|
31742GC
31742-80X14 Spring-Valve9309--01 ~ 9409--01; AT; L14 |
31742-80X14 |
US $0.86 |
||
|
31742GD
|
31742GD
31742-31X63 Spring-Valve9204--01 ~ 9304--01; AT; L10 D=17 |
31742-31X63 |
US $4.18 |
||
| replacement | |||||
|
31742GD
|
31742GD
31742-31X70 Spring-Valve9204--01 ~ 9304--01; AT; L10 D=17 |
31742-31X70 |
US $4.18 |
||
|
31742GD
|
31742GD
31742-80X10 Spring-Valve9309--01 ~ 9409--01; AT; L15 |
31742-80X10 |
US $0.86 |
||
|
31742GD
|
31742GD
C1742-31X63 Spring-Valve9107--01 ~ 9204--01; AT; L10 D=12.6 |
C1742-31X63 |
US $4.18 |
||
|
31742GE
|
31742GE
31742-31X06 Spring-Relief Valve9107--01 ~ 9304--01; AT |
31742-31X06 |
US $0.86 |
||
|
31742GE
|
31742GE
31742-33X01 Spring-Valve9309--01 ~ 9409--01; AT; L15 |
31742-33X01 |
US $4.03 |
||
|
31742GF
|
31742GF
3174231X07 Spring-Throttle Modulator9107--01 ~ 9304--01; AT |
3174231X07 |
US $0.86 |
||
|
31742GF
|
31742GF
31742-80X05 Spring-Valve9309--01 ~ 9409--01; AT; L16 |
31742-80X05 |
US $0.86 |
||
|
31742GG
|
31742GG
31742-31X08 Spring-Lock Up Control9107--01 ~ 9304--01; AT |
31742-31X08 |
US $0.86 |
||
|
31742GH
|
31742GH
31742-31X09 Spring-4Th & 2Nd Sequent9107--01 ~ 9304--01; AT |
31742-31X09 |
US $0.86 |
||
|
31742GH
|
31742GH
31742-80X06 Spring-Valve9309--01 ~ 9409--01; AT; L18 |
31742-80X06 |
US $2.45 |
||
|
31743NF
|
31743NF
31743-31X01 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NF
|
31743NF
31743-80X05 Plate-Retainer9309--01 ~ 9409--01; AT; L12 |
31743-80X05 |
US $0.86 |
||
|
31743NG
|
31743NG
31743-31X01 Plate-Retainer9309--01 ~ 9409--01; AT; L13 |
31743-31X01 |
US $5.33 |
||
|
31743NG
|
31743NG
31743-31X02 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743NH
|
31743NH
31743-31X02 Plate-Retainer9309--01 ~ 9409--01; AT; L14 |
31743-31X02 |
US $2.02 |
||
|
31743NH
|
31743NH
31743-31X03 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X03 |
US $0.86 |
||
|
31743NH
|
31743NH
31743-31X02 Plate-Retainer9309--01 ~ 9409--01; AT; L14 |
31743-31X02 |
US $2.02 |
||
|
31743NH
|
31743NH
31743-31X03 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X03 |
US $0.86 |
||
|
31743NJ
|
31743NJ
31743-31X10 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X10 |
US $0.86 |
||
|
31743NJ
|
31743NJ
31743-80X07 Plate-Retainer9309--01 ~ 9409--01; AT; L15 |
31743-80X07 |
US $0.86 |
||
|
31743NK
|
31743NK
31743-31X02 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743NK
|
31743NK
31743-80X06 Plate-Retainer9309--01 ~ 9409--01; AT; L15 |
31743-80X06 |
US $2.02 |
||
|
31743NL
|
31743NL
31743-31X02 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743NM
|
31743NM
31743-31X05 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X05 |
US $0.86 |
||
|
31743NM
|
31743NM
31743-80X04 Plate-Retainer9309--01 ~ 9409--01; AT; L18 |
31743-80X04 |
US $0.86 |
||
|
31743NN
|
31743NN
31743-31X02 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743NP
|
31743NP
31743-31X01 Plate-Retainer9309--01 ~ 9409--01; AT; L20 |
31743-31X01 |
US $5.33 |
||
|
31743NP
|
31743NP
31743-31X02 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X02 |
US $2.02 |
||
|
31743NQ
|
31743NQ
31743-31X01 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NR
|
31743NR
31743-31X01 Plate-Retainer9107--01 ~ 9304--01; AT |
31743-31X01 |
US $5.33 |
||
|
31743NR
|
31743NR
31743-31X02 Plate-Retainer9309--01 ~ 9409--01; AT; L17 |
31743-31X02 |
US $2.02 |
||
|
31755NA
|
31755NA
31772-31X13 Valve-Spool9107--01 ~ 9304--01; AT |
31772-31X13 |
US $10.80 |
||
|
31755NA
|
31755NA
31772-80X19 Valve-Spool9309--01 ~ 9409--01; AT; L11 |
31772-80X19 |
US $10.80 |
||
|
31755NB
|
31755NB
31772-41X01 Valve-Spool9107--01 ~ 9304--01; AT |
31772-41X01 |
US $10.12 |
||
|
31755NC
|
31755NC
31772-31X06 Valve-Accumulator Control9107--01 ~ 9304--01; AT |
31772-31X06 |
US $8.06 |
||
|
31755NC
|
31755NC
31772-80X11 Valve-Spool9309--01 ~ 9409--01; AT; L14 |
31772-80X11 |
US $10.80 |
||
|
31755ND
|
31755ND
31772-21X00 Valve-Spool9107--01 ~ 9304--01; AT |
31772-21X00 |
US $6.94 |
||
|
31755ND
|
31755ND
31772-80X03 Valve-Spool9309--01 ~ 9409--01; AT; L15 |
31772-80X03 |
US $7.20 |
||
|
31755NE
|
31755NE
31772-21X00 Valve-Spool9309--01 ~ 9409--01; AT; L16 |
31772-21X00 |
US $6.94 |
||
|
31755NE
|
31755NE
31772-31X07 Valve-1St Reducing9107--01 ~ 9304--01; AT |
31772-31X07 |
US $12.53 |
||
|
31755NF
|
31755NF
31772-31X08 Valve-Relief9107--01 ~ 9304--01; AT |
31772-31X08 |
US $10.80 |
||
|
31755NG
|
31755NG
31772-31X03 Valve-Throttle Modulator9107--01 ~ 9304--01; AT |
31772-31X03 |
US $6.19 |
||
|
31755NG
|
31755NG
31772-80X04 Valve-Spool9309--01 ~ 9409--01; AT; L18 |
31772-80X04 |
US $10.22 |
||
|
31755NH
|
31755NH
31772-21X00 Valve-Spool9107--01 ~ 9304--01; AT |
31772-21X00 |
US $6.94 |
||
|
31755NH
|
31755NH
31772-80X13 Valve-Spool9309--01 ~ 9409--01; AT; L20 |
31772-80X13 |
US $10.80 |
||
|
31755NJ
|
31755NJ
31772-31X10 Valve-Spool9107--01 ~ 9304--01; AT |
31772-31X10 |
US $10.80 |
||
|
31755NJ
|
31755NJ
31772-80X00 Valve-Spool9309--01 ~ 9409--01; AT; L10 |
31772-80X00 |
US $7.20 |
||
|
31755NK
|
31755NK
31772-31X05 Valve-4Th & 2Nd Sequent9107--01 ~ 9304--01; AT |
31772-31X05 |
US $7.20 |
||
|
31759
|
31759
31675-31X00 Piston-Accumulator9107--01 ~ 9304--01; AT |
31675-31X00 |
US $14.40 |
||
|
31759
|
31759
31675-41X05 Piston-Accumulator9309--01 ~ 9409--01; AT; L13 |
31675-41X05 |
US $10.51 |
||
|
31759
|
31759
31675-80X06 Piston-Accumulator9309--01 ~ 9409--01; AT; L15 |
31675-80X06 |
US $14.40 |
||
|
31759
|
31759
31675-80X02 Piston-Accumulator Servo9309--01 ~ 9409--01; S-R |
31675-80X02 |
US $10.80 |
||
|
31759
|
31759
31675-31X02 Piston-Accumulator Servo9309--01 ~ 9409--01; N-D |
31675-31X02 |
US $10.80 |
||
|
31772N
|
31772N
31736-21X00 Spring-Timing9107--01 ~ 9304--01; AT |
31736-21X00 |
US $0.86 |
||
|
31773NE
|
31773NE
31845-31X04 Plug-Pressure Modifier9107--01 ~ 9304--01; AT |
31845-31X04 |
US $2.45 |
||
|
31773NE
|
31773NE
31845-60X00 Plug9309--01 ~ 9409--01; AT; L12 |
31845-60X00 |
US $2.45 |
||
|
31773NF
|
31773NF
31845-31X02 Plug9107--01 ~ 9304--01; AT |
31845-31X02 |
US $2.45 |
||
|
31773NG
|
31773NG
31845-31X05 Plug9107--01 ~ 9304--01; AT |
31845-31X05 |
US $5.18 |
||
|
31773NG
|
31773NG
31845-80X04 Plug9309--01 ~ 9409--01; AT; L15 |
31845-80X04 |
US $6.19 |
||
|
31773NH
|
31773NH
31845-27X61 Plug-Checking Ball9107--01 ~ 9304--01; AT |
31845-27X61 |
US $4.18 |
||
|
31773NH
|
31773NH
31845-31X07 Plug9309--01 ~ 9409--01; AT; L16 |
31845-31X07 |
US $2.45 |
||
|
31773NJ
|
31773NJ
31845-27X61 Plug-Checking Ball9107--01 ~ 9304--01; AT |
31845-27X61 |
US $4.18 |
||
|
31773NJ
|
31773NJ
31845-60X00 Plug9309--01 ~ 9409--01; AT; L18 |
31845-60X00 |
US $2.45 |
||
|
31773NK
|
31773NK
31845-31X07 Plug9107--01 ~ 9304--01; AT |
31845-31X07 |
US $2.45 |
||
|
31773NK
|
31773NK
31845-80X10 Plug9309--01 ~ 9409--01; AT; L20 |
31845-80X10 |
US $5.62 |
||
|
31773NL
|
31773NL
31845-31X08 Plug9107--01 ~ 9304--01; AT |
31845-31X08 |
US $12.96 |
||
|
31777PA
|
31777PA
31777-31X00 Sleeve-4Th & 2Nd Sequent9107--01 ~ 9304--01; AT |
31777-31X00 |
US $4.18 |
||
|
31829
|
31829
31829-68300 Ball-Steel9107--01 ~ 9304--01; AT |
31829-68300 |
US $1.73 |
||
|
31829
|
31829
32829-26760 Ball-Check9107--01 ~ 9304--01; AT |
32829-26760 |
from US $0.74 |
||
|
31829
|
31829
31829-68300 Ball-Steel9107--01 ~ 9304--01; AT |
31829-68300 |
US $1.73 |
||
|
31829
|
31829
32829-26760 Ball-Check9107--01 ~ 9304--01; AT |
32829-26760 |
from US $0.74 |
||
|
31834Q
|
31834Q
31835-21X08 Spring-Timing9107--01 ~ 9304--01; AT |
31835-21X08 |
US $0.86 |
||
|
31834Q
|
31834Q
31835-21X02 Spring-Speed Cut9107--01 ~ 9304--01; AT |
31835-21X02 |
US $0.86 |
||
|
31834QA
|
31834QA
31835-21X02 Spring-Speed Cut9107--01 ~ 9304--01; AT |
31835-21X02 |
US $0.86 |
||
