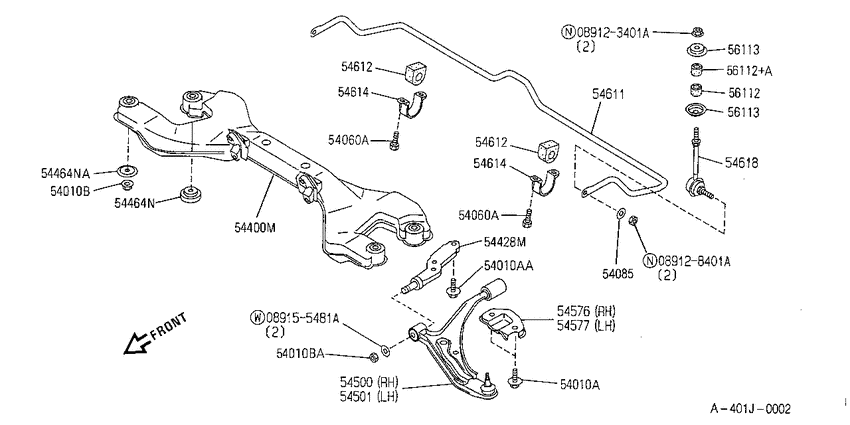

Front suspension (1991-07-01 ~ 1994-09-01; メンバー&スタビライザー; SR20DE) Diagram Nissan PRIMERA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- GT
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089123401A
|
089123401A
089123401A NUT-HEX |
089123401A |
US $3.46 |
||
|
089128401A
|
089128401A
089128401A NUTHEX |
089128401A |
from US $0.52 |
||
|
089155481A
|
089155481A
08915-5481A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-5481A |
— | ||
|
54010A
|
54010A
01121-04291 BOLT9107--01 ~ 9409--01; SR20DE.AT |
01121-04291 |
US $7.34 |
||
|
54010A
|
54010A
01121-0320K Bolt9107--01 ~ 9409--01; SR20DE.AT |
01121-0320K |
US $5.04 |
||
|
54010AA
|
54010AA
01121-0320K Bolt9107--01 ~ 9409--01; SR20DE.AT |
01121-0320K |
US $5.04 |
||
|
54010B
|
54010B
0122500072 NUT9107--01 ~ 9409--01; SR20DE.AT |
0122500072 |
US $1.05 |
||
|
54010B
|
54010B
0122300121 NUT9107--01 ~ 9409--01; SR20DE.AT |
0122300121 |
US $4.18 |
||
|
54010BA
|
54010BA
0122300121 NUT9107--01 ~ 9409--01; SR20DE.AT |
0122300121 |
US $4.18 |
||
|
54060A
|
54060A
01125-02411 BOLT9107--01 ~ 9409--01; SR20DE.AT |
01125-02411 |
US $2.45 |
||
|
54060A
|
54060A
01125-02411 BOLT9107--01 ~ 9409--01; SR20DE.AT |
01125-02411 |
US $2.45 |
||
|
54085
|
54085
55134-50J00 Washer-Special9107--01 ~ 9409--01; SR20DE.AT |
55134-50J00 |
US $4.61 |
||
|
54400M
|
54400M
54400-50J05 Member Compl-Front Suspension9107--01 ~ 9309--01; SR20DE.AT |
54400-50J05 |
US $574.90 |
||
|
54400M
|
54400M
54400-90J05 Member Compl-Front Suspension9309--01 ~ 9409--01; SR20DE.AT |
54400-90J05 |
US $574.90 |
||
|
54428M
|
54428M
54428-50J00 Pin-Link Bush9107--01 ~ 9409--01; SR20DE.AT |
54428-50J00 |
US $43.34 |
||
|
54464N
|
54464N
54464-50J10 Stopper-Rebound Front Suspension9107--01 ~ 9310--01; SR20DE.AT |
54464-50J10 |
US $11.52 |
||
|
54464N
|
54464N
54464-50J11 Stopper-Rebound Front Suspension9310--01 ~ 9409--01; SR20DE.AT |
54464-50J11 |
US $11.52 |
||
|
54464N
|
54464N
54464-50J00 Stopper-Rebound Front Suspension9107--01 ~ 9310--01; SR20DE.AT |
54464-50J00 |
US $11.52 |
||
|
54464N
|
54464N
54464-50J01 Stopper-Rebound Front Suspension9310--01 ~ 9409--01; SR20DE.AT |
54464-50J01 |
US $11.52 |
||
|
54464NA
|
54464NA
54464-50J00 Stopper-Rebound Front Suspension9107--01 ~ 9310--01; SR20DE.AT |
54464-50J00 |
US $11.52 |
||
|
54464NA
|
54464NA
54464-50J01 Stopper-Rebound Front Suspension9310--01 ~ 9409--01; SR20DE.AT |
54464-50J01 |
US $11.52 |
||
|
54500
|
54500
5450086J00 Link Compl-Transverse, Rh9505--01 ~ ; SR20DE.AT |
5450086J00 |
US $376.66 |
||
|
54500
|
54500
54500-90J10 Link Compl-Transverse, Rh9107--01 ~ 9409--01; SR20DE.AT |
54500-90J10 |
US $369.58 |
||
|
54501
|
54501
54501-86J00 Link Compl-Transverse, Lh9505--01 ~ ; SR20DE.AT |
54501-86J00 |
from US $139.29 |
||
|
54501
|
54501
54501-90J10 Link Compl-Transverse, Lh9107--01 ~ 9409--01; SR20DE.AT |
54501-90J10 |
US $369.58 |
||
|
54576
|
54576
54576-90J00 Clamp9107--01 ~ 9409--01; SR20DE.AT |
54576-90J00 |
US $55.73 |
||
|
54577
|
54577
54577-90J00 Clamp9107--01 ~ 9409--01; SR20DE.AT |
54577-90J00 |
US $55.73 |
||
|
54611
|
54611
54611-96J15 Stabilizer-Front9107--01 ~ 9409--01; SR20DE.AT |
54611-96J15 |
US $505.51 |
||
|
54612
|
54612
56243-92J00 Bush-Stabilizer9107--01 ~ 9409--01; SR20DE.AT; ｼﾛ |
56243-92J00 |
US $6.19 |
||
|
54612
|
54612
56243-92J00 Bush-Stabilizer9107--01 ~ 9409--01; SR20DE.AT; ｼﾛ |
56243-92J00 |
US $6.19 |
||
|
54614
|
54614
56233-30R00 Bracket Assy-Stabilizer Mounting9107--01 ~ 9409--01; SR20DE.AT |
56233-30R00 |
US $15.53 |
||
|
54614
|
54614
56233-30R00 Bracket Assy-Stabilizer Mounting9107--01 ~ 9409--01; SR20DE.AT |
56233-30R00 |
US $15.53 |
||
|
54618
|
54618
54618-86J00 Rod Assy-Connecting, Stabilizer9504--01 ~ ; SR20DE.AT |
54618-86J00 |
US $67.97 |
||
|
54618
|
54618
54618-90J11 Rod Assy-Connecting, Stabilizer9107--01 ~ 9409--01; SR20DE.AT |
54618-90J11 |
US $66.67 |
||
|
56112
|
56112
56112-90J00 Bush9107--01 ~ 9409--01; SR20DE.AT |
56112-90J00 |
US $6.19 |
||
|
56112
|
56112
56112-90J05 Bush9107--01 ~ 9409--01; SR20DE.AT |
56112-90J05 |
US $4.90 |
||
|
56112+A
|
56112+A
56112-90J05 Bush9107--01 ~ 9409--01; SR20DE.AT |
56112-90J05 |
US $4.90 |
||
|
56113
|
56113
56113-60U05
Washer
9107--01 ~ 9409--01; SR20DE.AT |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer9107--01 ~ 9409--01; SR20DE.AT |
5611360U0A |
from US $1.39 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
9107--01 ~ 9409--01; SR20DE.AT |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special9107--01 ~ 9409--01; SR20DE.AT |
561134U00A |
from US $1.67 |
||
|
56113
|
56113
56113-60U05
Washer
9107--01 ~ 9409--01; SR20DE.AT |
56113-60U05 |
— | ||
| replacement | |||||
|
56113
|
56113
5611360U0A Washer9107--01 ~ 9409--01; SR20DE.AT |
5611360U0A |
from US $1.39 |
||
|
56113
|
56113
56113-73000
Washer-Special, Outer
9107--01 ~ 9409--01; SR20DE.AT |
56113-73000 |
— | ||
| replacement | |||||
|
56113
|
56113
561134U00A Washer-Special9107--01 ~ 9409--01; SR20DE.AT |
561134U00A |
from US $1.67 |
||
