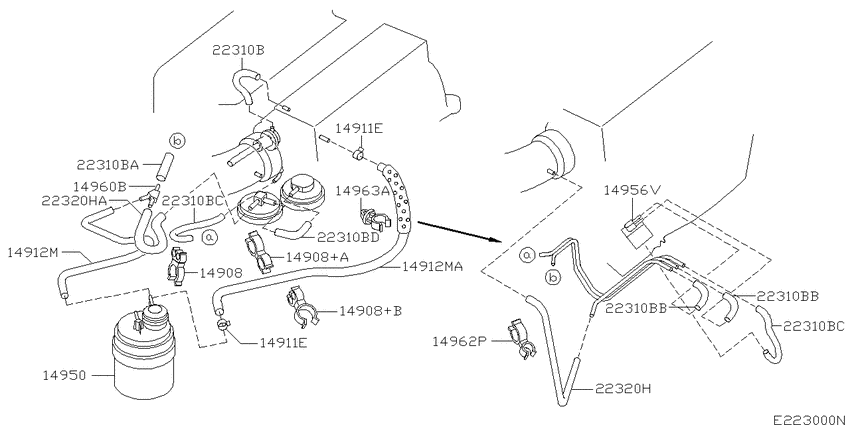

Vacuum piping (1993-04-01 ~ 1994-09-01; SR20DE) Diagram Nissan PRIMERA
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- GT
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14908
|
14908
24220-60J01 Clamp-Hose, B9309--01 ~ 9409--01; SR20DE.AT |
24220-60J01 |
US $2.74 |
||
|
14908
|
14908
24220-79913 Clip9309--01 ~ 9409--01; SR20DE.AT |
24220-79913 |
US $0.86 |
||
|
14908
|
14908
24220-53J00 Clamp-Hose, B9309--01 ~ 9409--01; SR20DE.AT |
24220-53J00 |
US $3.31 |
||
|
14908+A
|
14908+A
24220-79913 Clip9309--01 ~ 9409--01; SR20DE.AT |
24220-79913 |
US $0.86 |
||
|
14908+B
|
14908+B
24220-53J00 Clamp-Hose, B9309--01 ~ 9409--01; SR20DE.AT |
24220-53J00 |
US $3.31 |
||
|
14911E
|
14911E
16439-N2100
Clamp-Hose
9309--01 ~ 9409--01; SR20DE.AT |
16439-N2100 |
— | ||
| replacement | |||||
|
14911E
|
14911E
16439N210A Clamp-Hose9309--01 ~ 9409--01; SR20DE.AT |
16439N210A |
from US $1.22 |
||
|
14911E
|
14911E
16439-N2100
Clamp-Hose
9309--01 ~ 9409--01; SR20DE.AT |
16439-N2100 |
— | ||
| replacement | |||||
|
14911E
|
14911E
16439N210A Clamp-Hose9309--01 ~ 9409--01; SR20DE.AT |
16439N210A |
from US $1.22 |
||
|
14912M
|
14912M
22320-89J10 Hose-Evap Control9309--01 ~ 9409--01; SR20DE.AT |
22320-89J10 |
US $13.39 |
||
|
14912M
|
14912M
22320-89J11 Hose-Evap Control9309--01 ~ 9409--01; SR20DE.AT |
22320-89J11 |
US $13.39 |
||
|
14912MA
|
14912MA
22320-89J11 Hose-Evap Control9309--01 ~ 9409--01; SR20DE.AT |
22320-89J11 |
US $13.39 |
||
|
14950
|
14950
14950-50A11 Canister Assy-Evaporation9107--01 ~ 9309--01; SR20DE.AT |
14950-50A11 |
US $259.20 |
||
|
14950
|
14950
14950-D2100 Canister Assy-Evaporation9309--01 ~ 9409--01; SR20DE.AT |
14950-D2100 |
US $234.25 |
||
| replacement | |||||
|
14950
|
14950
14950-D210A
Evaporative emission canister
9309--01 ~ 9409--01; SR20DE.AT |
14950-D210A |
— | ||
|
14956V
|
14956V
14956-58C10 Valve Assy-Solenoid9309--01 ~ 9409--01; SR20DE.AT |
14956-58C10 |
US $165.60 |
||
|
14960B
|
14960B
14961-78J00 Connector, A9309--01 ~ 9409--01; SR20DE.AT |
14961-78J00 |
US $11.81 |
||
|
14962P
|
14962P
24220-53J00 Clamp-Hose, B9107--01 ~ 9309--01; SR20DE.AT |
24220-53J00 |
US $3.31 |
||
|
14962P
|
14962P
24220-73C60 Clip-Breather Hose9309--01 ~ 9409--01; SR20DE.AT |
24220-73C60 |
US $0.86 |
||
|
14962P
|
14962P
24220-78J05 Clamp-Hose, B9309--01 ~ 9409--01; SR20DE.AT |
24220-78J05 |
US $2.74 |
||
|
14962P
|
14962P
24220-78J20 Clamp-Hose, B9409--01 ~ ; SR20DE.AT |
24220-78J20 |
US $3.74 |
||
|
14963A
|
14963A
74527Q0100 Clip9309--01 ~ 9409--01; SR20DE.AT |
74527Q0100 |
from US $1.35 |
||
|
22310B
|
22310B
01993-2091E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-2091E |
— | ||
|
22310B
|
22310B
02187-32203
HOSE-VACUUM CONTROL
9107--01 ~ 9309--01; SR20DE.AT; L=220 S/#B2318-N3301 |
02187-32203 |
— | ||
|
22310B
|
22310B
B2318N3301 Hose-Vacuum Control9107--01 ~ 9309--01; SR20DE.AT; L=5000 ｷｯﾃ ｼﾖｳ |
B2318N3301 |
from US $61.96 |
||
|
22310B
|
22310B
01993-3061E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3061E |
— | ||
|
22310B
|
22310B
01993-3081E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3081E |
— | ||
|
22310B
|
22310B
01993-3131E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3131E |
— | ||
|
22310B
|
22310B
01993-3091E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3091E |
— | ||
|
22310BA
|
22310BA
01993-3061E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3061E |
— | ||
|
22310BB
|
22310BB
01993-3081E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3081E |
— | ||
|
22310BB
|
22310BB
01993-3081E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3081E |
— | ||
|
22310BC
|
22310BC
01993-3131E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3131E |
— | ||
|
22310BC
|
22310BC
01993-3131E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3131E |
— | ||
|
22310BD
|
22310BD
01993-3091E
Hose-Vacuum Control
9309--01 ~ 9409--01; SR20DE.AT |
01993-3091E |
— | ||
|
22320H
|
22320H
22320-89J12 Hose-Vacuum Control, B9309--01 ~ 9409--01; SR20DE.AT |
22320-89J12 |
US $10.66 |
||
|
22320H
|
22320H
22320-89J13 Hose-Vacuum Control, B9309--01 ~ 9409--01; SR20DE.AT |
22320-89J13 |
US $10.66 |
||
|
22320HA
|
22320HA
22320-89J13 Hose-Vacuum Control, B9309--01 ~ 9409--01; SR20DE.AT |
22320-89J13 |
US $10.66 |
||
