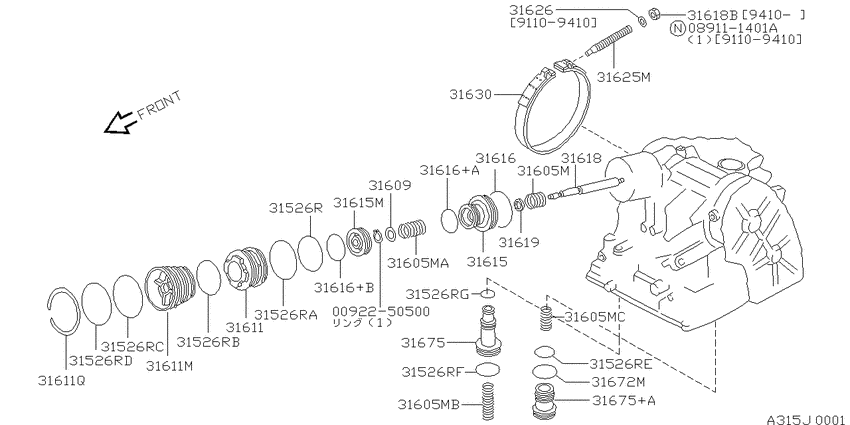

Clutch & band servo (1994-09-01 ~ ; サーボ パーツ; AT) Diagram Nissan PRIMERA
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- SLX
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250500
|
0092250500
00922-50500
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50500 |
— | ||
|
089111401A
|
089111401A
089111401A
NUTHEX
|
089111401A |
— | ||
|
31526R
|
31526R
3152631X02 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X02 |
US $4.18 |
||
|
31526R
|
31526R
31526-31X03 Seal-O Ring, Band Servo9410--01 ~ ; AT |
31526-31X03 |
from US $4.18 |
||
|
31526R
|
31526R
3152631X04 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X04 |
US $4.18 |
||
|
31526R
|
31526R
3152631X05 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X05 |
US $4.18 |
||
|
31526R
|
31526R
3152631X06 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X06 |
US $4.18 |
||
|
31526RA
|
31526RA
31526-31X03 Seal-O Ring, Band Servo9410--01 ~ ; AT |
31526-31X03 |
from US $4.18 |
||
|
31526RB
|
31526RB
3152631X04 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X04 |
US $4.18 |
||
|
31526RC
|
31526RC
3152631X05 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X05 |
US $4.18 |
||
|
31526RD
|
31526RD
3152631X06 Seal-O Ring, Band Servo9410--01 ~ ; AT |
3152631X06 |
US $4.18 |
||
|
31605M
|
31605M
31605-31X00 Spring-Servo9410--01 ~ ; AT |
31605-31X00 |
US $4.18 |
||
|
31605M
|
31605M
31605-31X01 Spring-Servo9410--01 ~ ; AT |
31605-31X01 |
US $2.45 |
||
|
31605MA
|
31605MA
31605-31X01 Spring-Servo9410--01 ~ ; AT |
31605-31X01 |
US $2.45 |
||
|
31609
|
31609
31622-31X01 Retainer-Snap, Stem Band9410--01 ~ ; AT |
31622-31X01 |
US $6.19 |
||
|
31611
|
31611
31611-31X03 Retainer-Servo Piston9410--01 ~ ; AT |
31611-31X03 |
US $46.66 |
||
|
31611
|
31611
31691-31X03 Retainer-Servo Piston9410--01 ~ ; AT |
31691-31X03 |
US $49.82 |
||
| replacement | |||||
|
31611
|
31611
31691-31X0C Retainer-Servo Piston9410--01 ~ ; AT |
31691-31X0C |
US $49.82 |
||
|
31611
|
31611
3150631X01 Ring-Snap9410--01 ~ ; AT |
3150631X01 |
US $2.45 |
||
|
31611M
|
31611M
31691-31X03 Retainer-Servo Piston9410--01 ~ ; AT |
31691-31X03 |
US $49.82 |
||
| replacement | |||||
|
31611M
|
31611M
31691-31X0C Retainer-Servo Piston9410--01 ~ ; AT |
31691-31X0C |
US $49.82 |
||
|
31611Q
|
31611Q
3150631X01 Ring-Snap9410--01 ~ ; AT |
3150631X01 |
US $2.45 |
||
|
31615
|
31615
31615-31X03 Piston-Band Servo9410--01 ~ ; AT |
31615-31X03 |
US $36.86 |
||
|
31615
|
31615
31695-31X03 Piston-Overdrive Servo9410--01 ~ ; AT |
31695-31X03 |
US $14.40 |
||
|
31615M
|
31615M
31695-31X03 Piston-Overdrive Servo9410--01 ~ ; AT |
31695-31X03 |
US $14.40 |
||
|
31616
|
31616
31527-31X66 Seal-Lathe Cut Ring9410--01 ~ ; AT |
31527-31X66 |
US $4.75 |
||
|
31616
|
31616
31527-31X67 Seal-Lathe Cut Ring9410--01 ~ ; AT |
31527-31X67 |
US $4.75 |
||
|
31616
|
31616
31527-80X12 Seal-Lathe Cut Ring9410--01 ~ ; AT |
31527-80X12 |
US $4.18 |
||
| replacement | |||||
|
31616
|
31616
C1527-80X12
Seal-lathe cut ring
9410--01 ~ ; AT |
C1527-80X12 |
— | ||
|
31616+A
|
31616+A
31527-31X67 Seal-Lathe Cut Ring9410--01 ~ ; AT |
31527-31X67 |
US $4.75 |
||
|
31616+B
|
31616+B
31527-80X12 Seal-Lathe Cut Ring9410--01 ~ ; AT |
31527-80X12 |
US $4.18 |
||
| replacement | |||||
|
31616+B
|
31616+B
C1527-80X12
Seal-lathe cut ring
9410--01 ~ ; AT |
C1527-80X12 |
— | ||
|
31618
|
31618
31618-31X01 Stem-Band Servo Piston9410--01 ~ ; AT |
31618-31X01 |
US $9.07 |
||
|
31618
|
31618
31365-31X04 Nut9410--01 ~ ; AT |
31365-31X04 |
US $1.73 |
||
|
31618B
|
31618B
31365-31X04 Nut9410--01 ~ ; AT |
31365-31X04 |
US $1.73 |
||
|
31619
|
31619
31619-01X00 Washer-Piston Stem9410--01 ~ ; AT |
31619-01X00 |
US $0.86 |
||
|
31625M
|
31625M
31625-41X00 Pin-Anchor End9410--01 ~ ; AT |
31625-41X00 |
US $5.90 |
||
|
31630
|
31630
31630-31X01 Band Assy-Brake9410--01 ~ ; AT |
31630-31X01 |
US $82.66 |
||
