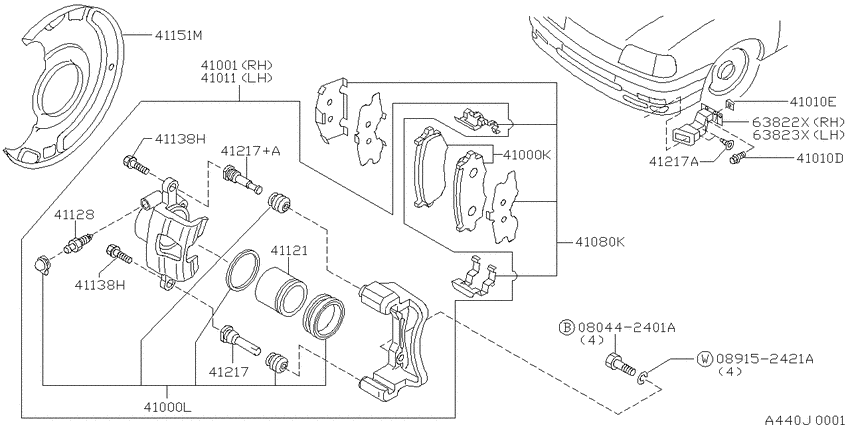

Front brake (1994-09-01 ~ ; SR20DE) Diagram Nissan PRIMERA
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- SLX
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
AY040NS011 Pad Kit-Disc Brake9409--01 ~ ; SR20DE.AT |
AY040NS011 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS013 Seal Kit-Disc Brake9409--01 ~ ; SR20DE.AT |
AY600NS013 |
US $45.60 |
||
|
41001
|
41001
41001-71E02 CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS9409--01 ~ ; SR20DE.AT |
41001-71E02 |
US $385.15 |
||
| replacement | |||||
|
41001
|
41001
410010E500 Caliper Assy-Front Rh, W/o Pads Or Shims9409--01 ~ ; SR20DE.AT |
410010E500 |
US $767.84 |
||
|
41010D
|
41010D
0145100841 SCREW9409--01 ~ ; SR20DE.AT |
0145100841 |
from US $0.94 |
||
|
41010E
|
41010E
76882-D4002 Nut-Spring9409--01 ~ ; SR20DE.AT |
76882-D4002 |
US $1.93 |
||
|
41011
|
41011
41011-71E02 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS9409--01 ~ ; SR20DE.AT |
41011-71E02 |
US $385.15 |
||
| replacement | |||||
|
41011
|
41011
410110E500 Caliper Assy-Front Lh, W/o Pads Or Shims9409--01 ~ ; SR20DE.AT |
410110E500 |
US $767.84 |
||
|
41080K
|
41080K
41080-71E26
HARDWARE KIT-FRONT DISC BRAKE PAD
9409--01 ~ ; SR20DE.AT |
41080-71E26 |
— | ||
| replacement | |||||
|
41080K
|
41080K
4108071E29 HARDWARE KIT-FRONT DISC BRAKE PAD9409--01 ~ ; SR20DE.AT |
4108071E29 |
US $96.74 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER9409--01 ~ ; SR20DE.AT |
4112171E00 |
from US $59.88 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9409--01 ~ ; SR20DE.AT |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9409--01 ~ ; SR20DE.AT |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9409--01 ~ ; SR20DE.AT |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9409--01 ~ ; SR20DE.AT |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9409--01 ~ ; SR20DE.AT |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9409--01 ~ ; SR20DE.AT |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
4115164J00 Plate-Baffle9409--01 ~ ; SR20DE.AT |
4115164J00 |
US $32.26 |
||
|
41217
|
41217
44139-16E01 PIN9409--01 ~ ; SR20DE.AT |
44139-16E01 |
US $18.29 |
||
|
41217
|
41217
44140N9500 Pin-Lock9409--01 ~ ; SR20DE.AT |
44140N9500 |
from US $8.45 |
||
|
41217
|
41217
6384801G00 Clip-Harness Protector9409--01 ~ ; SR20DE.AT |
6384801G00 |
from US $0.54 |
||
|
41217+A
|
41217+A
44140N9500 Pin-Lock9409--01 ~ ; SR20DE.AT |
44140N9500 |
from US $8.45 |
||
|
41217A
|
41217A
6384801G00 Clip-Harness Protector9409--01 ~ ; SR20DE.AT |
6384801G00 |
from US $0.54 |
||
|
63822X
|
63822X
63822-76J00
Guide-Air, Brake
9409--01 ~ ; SR20DE.AT |
63822-76J00 |
— | ||
|
63823X
|
63823X
63823-76J00
Guide-Air, Brake
9409--01 ~ ; SR20DE.AT |
63823-76J00 |
— | ||
