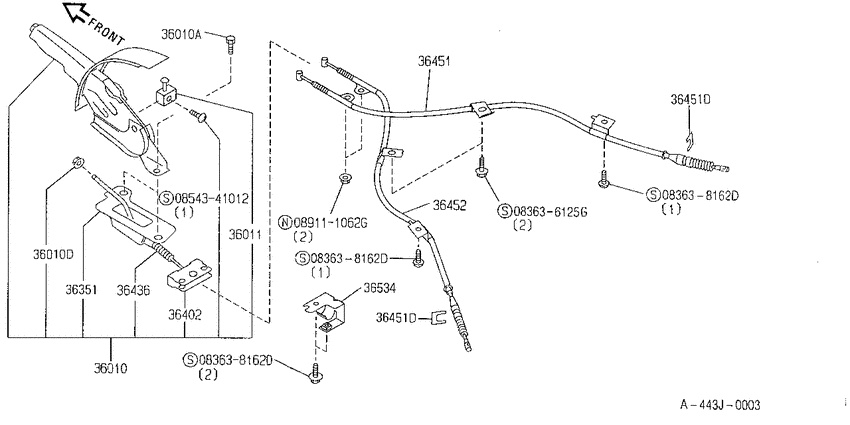

Parking brake control (1994-09-01 ~ ; SR20DE) Diagram Nissan PRIMERA
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- SLX
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
083638162D
|
083638162D
08363-8162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-8162D |
— | ||
|
0854341012
|
0854341012
08543-41012
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-41012 |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.63 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.63 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.63 |
||
|
36010
|
36010
36010-70J00 Device Assy-Parking Brake Control9409--01 ~ ; SR20DE.AT |
36010-70J00 |
US $156.96 |
||
|
36010
|
36010
01436-01701 Bolt9409--01 ~ ; SR20DE.AT |
01436-01701 |
US $1.73 |
||
|
36010
|
36010
01225-00511 NUT9409--01 ~ ; SR20DE.AT |
01225-00511 |
US $3.46 |
||
|
36010A
|
36010A
01436-01701 Bolt9409--01 ~ ; SR20DE.AT |
01436-01701 |
US $1.73 |
||
|
36010D
|
36010D
01225-00511 NUT9409--01 ~ ; SR20DE.AT |
01225-00511 |
US $3.46 |
||
|
36011
|
36011
36011-4F105 Switch Assy-Parking Brake Lamp9409--01 ~ ; SR20DE.AT |
36011-4F105 |
US $17.57 |
||
|
36351
|
36351
36013-4F100 Cover-Dust, Parking Brake9409--01 ~ ; SR20DE.AT |
36013-4F100 |
US $12.38 |
||
|
36402
|
36402
36402-70J00 Cable Assy-Parking Brake, Front9409--01 ~ ; SR20DE.AT |
36402-70J00 |
US $82.94 |
||
|
36436
|
36436
36016-70J00 Boot-Parking Brake Control9409--01 ~ ; SR20DE.AT |
36016-70J00 |
US $17.86 |
||
|
36451
|
36451
36530-94J00 Cable Assy-Brake, Rear Rh9409--01 ~ ; SR20DE.AT |
36530-94J00 |
US $74.74 |
||
|
36451
|
36451
36406-01P00 Plate-Cable Lock9409--01 ~ ; SR20DE.AT |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451
|
36451
3640601P0A Plate-Cable Lock9409--01 ~ ; SR20DE.AT |
3640601P0A |
from US $1.04 |
||
|
36451D
|
36451D
36406-01P00 Plate-Cable Lock9409--01 ~ ; SR20DE.AT |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451D
|
36451D
3640601P0A Plate-Cable Lock9409--01 ~ ; SR20DE.AT |
3640601P0A |
from US $1.04 |
||
|
36451D
|
36451D
36406-01P00 Plate-Cable Lock9409--01 ~ ; SR20DE.AT |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36451D
|
36451D
3640601P0A Plate-Cable Lock9409--01 ~ ; SR20DE.AT |
3640601P0A |
from US $1.04 |
||
|
36452
|
36452
36531-94J00 Cable Assy-Brake, Rear Lh9409--01 ~ ; SR20DE.AT |
36531-94J00 |
US $74.74 |
||
|
36534
|
36534
36521-50J00 Bracket-Parking Brake Cable9409--01 ~ ; SR20DE.AT |
36521-50J00 |
US $17.86 |
||
