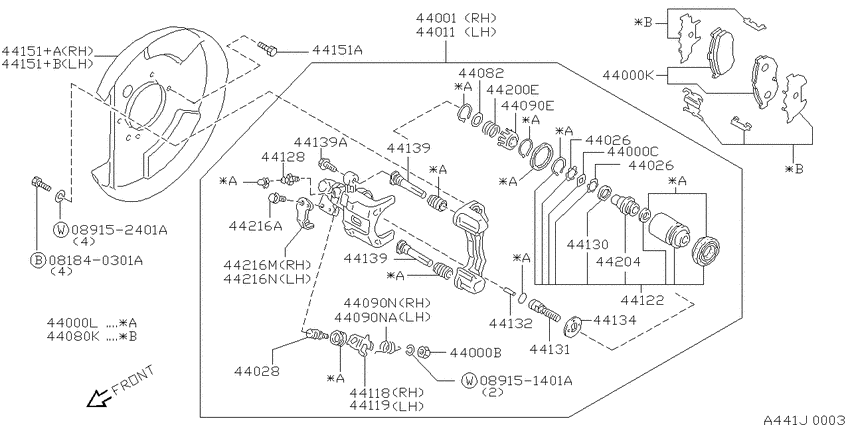

Rear brake (1994-09-01 ~ ; SR20DE) Diagram Nissan PRIMERA
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- SLX
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081840301A
|
081840301A
081840301A Bolt-hexagon |
081840301A |
from US $0.76 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
44000B
|
44000B
44149-P6500
Nut
9409--01 ~ ; SR20DE.AT |
44149-P6500 |
— | ||
| replacement | |||||
|
44000B
|
44000B
44149-AW70A Nut9409--01 ~ ; SR20DE.AT |
44149-AW70A |
US $4.71 |
||
|
44000C
|
44000C
44139-P6500 Washer9409--01 ~ ; SR20DE.AT |
44139-P6500 |
US $2.45 |
||
|
44000K
|
44000K
AY060NS903 Pad Kit-Disc Brake9409--01 ~ ; SR20DE.AT |
AY060NS903 |
US $142.56 |
||
|
44000L
|
44000L
AY620NS004 Seal Kit-Disc Brake9409--01 ~ ; SR20DE.AT |
AY620NS004 |
US $61.78 |
||
|
44001
|
44001
4400164J00 Caliper Assy-Rear Rh, W/o Pads Or Shims9409--01 ~ ; SR20DE.AT |
4400164J00 |
US $290.28 |
||
|
44011
|
44011
4401164J00 Caliper Assy-Rear Lh, W/o Pads Or Shims9409--01 ~ ; SR20DE.AT |
4401164J00 |
US $290.28 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING9409--01 ~ ; SR20DE.AT |
44133-61E00 |
US $5.04 |
||
|
44026
|
44026
44133-61E00 SPACER-ADJUSTING9409--01 ~ ; SR20DE.AT |
44133-61E00 |
US $5.04 |
||
|
44028
|
44028
44142-44B00 Cam-Adjusting, Rear Brake9409--01 ~ ; SR20DE.AT |
44142-44B00 |
US $36.03 |
||
|
44080K
|
44080K
44080-65E27 HARDWARE KIT-REAR DISC BRAKE PAD9409--01 ~ ; SR20DE.AT |
44080-65E27 |
US $76.75 |
||
|
44082
|
44082
44146N9500 Seat-Spring9409--01 ~ ; SR20DE.AT |
44146N9500 |
US $5.04 |
||
|
44090E
|
44090E
44081-35F00 Cover-Spring9409--01 ~ ; SR20DE.AT |
44081-35F00 |
US $4.18 |
||
|
44090N
|
44090N
44090-01P04 Spring9409--01 ~ ; SR20DE.AT |
44090-01P04 |
US $10.80 |
||
|
44090N
|
44090N
44091-01P04 Spring9409--01 ~ ; SR20DE.AT |
44091-01P04 |
US $10.80 |
||
|
44090NA
|
44090NA
44091-01P04 Spring9409--01 ~ ; SR20DE.AT |
44091-01P04 |
US $10.80 |
||
|
44118
|
44118
44095-61E01 LEVER ASSY-RH9409--01 ~ ; SR20DE.AT |
44095-61E01 |
US $29.81 |
||
|
44119
|
44119
44096-61E01 LEVER ASSY-LH9409--01 ~ ; SR20DE.AT |
44096-61E01 |
US $29.81 |
||
|
44122
|
44122
4412361E00 PISTON9409--01 ~ ; SR20DE.AT |
4412361E00 |
US $78.19 |
||
|
44128
|
44128
4112888E01
SCREW-BLEEDER
9409--01 ~ ; SR20DE.AT |
4112888E01 |
— | ||
| replacement | |||||
|
44128
|
44128
41128AW70A Screw-Bleeder9409--01 ~ ; SR20DE.AT |
41128AW70A |
from US $7.63 |
||
|
44130
|
44130
44130-P6500 Bearing9409--01 ~ ; SR20DE.AT |
44130-P6500 |
US $11.09 |
||
|
44131
|
44131
4413461E00 ROD-PUSH9409--01 ~ ; SR20DE.AT |
4413461E00 |
US $15.41 |
||
|
44132
|
44132
44132N9500 Strut9409--01 ~ ; SR20DE.AT |
44132N9500 |
US $9.15 |
||
|
44134
|
44134
44131-N9500 Plate9409--01 ~ ; SR20DE.AT |
44131-N9500 |
US $2.45 |
||
|
44139
|
44139
44140N9500 Pin-Lock9409--01 ~ ; SR20DE.AT |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
9409--01 ~ ; SR20DE.AT |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt9409--01 ~ ; SR20DE.AT |
44141AW70A |
from US $3.35 |
||
|
44139
|
44139
44140N9500 Pin-Lock9409--01 ~ ; SR20DE.AT |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
9409--01 ~ ; SR20DE.AT |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt9409--01 ~ ; SR20DE.AT |
44141AW70A |
from US $3.35 |
||
|
44139A
|
44139A
44141-N9500
Pin-Bolt
9409--01 ~ ; SR20DE.AT |
44141-N9500 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141AW70A Pin-Bolt9409--01 ~ ; SR20DE.AT |
44141AW70A |
from US $3.35 |
||
|
44151+A
|
44151+A
44151-64J02 Plate-Baffle9409--01 ~ ; SR20DE.AT |
44151-64J02 |
US $35.42 |
||
|
44151+B
|
44151+B
44161-64J02 Plate-Baffle9409--01 ~ ; SR20DE.AT |
44161-64J02 |
US $35.42 |
||
|
44151A
|
44151A
0141100131 BOLT9409--01 ~ ; SR20DE.AT |
0141100131 |
US $1.73 |
||
|
44200E
|
44200E
44147-61E00 SPRING9409--01 ~ ; SR20DE.AT |
44147-61E00 |
US $4.18 |
||
|
44204
|
44204
44128-61E00 NUT-ADJUSTER9409--01 ~ ; SR20DE.AT |
44128-61E00 |
US $11.66 |
||
|
44216A
|
44216A
44252-53F00 Bolt9409--01 ~ ; SR20DE.AT |
44252-53F00 |
US $5.90 |
||
|
44216M
|
44216M
44195-64J00 Guide-Adjust Cable, Rh9409--01 ~ ; SR20DE.AT |
44195-64J00 |
US $32.54 |
||
|
44216N
|
44216N
44196-64J00 Guide-Adjust Cable, Lh9409--01 ~ ; SR20DE.AT |
44196-64J00 |
US $32.54 |
||
