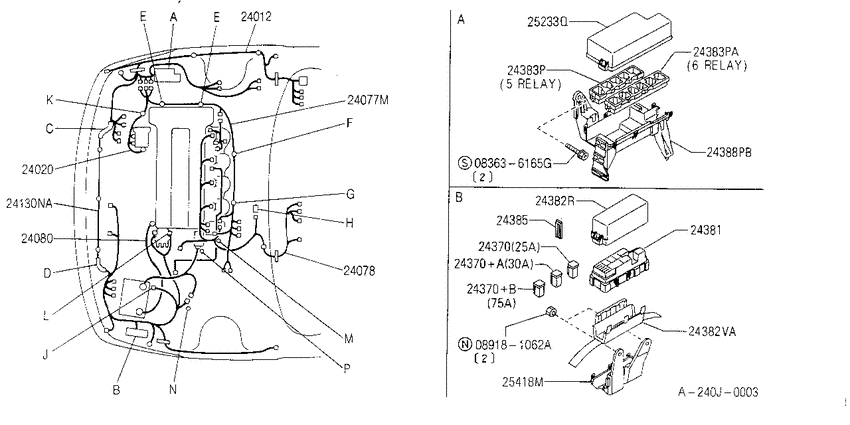

Wiring (1994-09-01 ~ ; エンジンルーム; 5HB) Diagram Nissan PRIMERA
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT
- grade
- SLX
- body
- 5HB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
089181062A
|
089181062A
089181062A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089181062A |
— | ||
|
24012
|
24012
24012-3F215 Harness Assy-Engine Room9409--01 ~ 9505--01; 5HB.SLX |
24012-3F215 |
US $1,582 |
||
|
24012
|
24012
24012-3F265 Harness Assy-Engine Room9505--01 ~ ; 5HB.SLX |
24012-3F265 |
US $1,428 |
||
|
24012
|
24012
0145600031 SCREW9409--01 ~ ; 5HB.SR20DE |
0145600031 |
from US $1.11 |
||
|
24012
|
24012
0145600411 SCREW9409--01 ~ ; 5HB.SR20DE |
0145600411 |
US $1.67 |
||
|
24012
|
24012
01461-00061 SCREW9409--01 ~ ; 5HB.SR20DE |
01461-00061 |
US $2.21 |
||
|
24012
|
24012
01466-00022 Bolt9409--01 ~ ; 5HB.SR20DE |
01466-00022 |
from US $0.78 |
||
|
24020
|
24020
24076-86J00 Harness Assy-Alternator9409--01 ~ ; 5HB.SR20DE |
24076-86J00 |
US $96.34 |
||
|
24077M
|
24077M
24077-0J865 Harness Assy-Engine9409--01 ~ ; 5HB.SLX |
24077-0J865 |
US $686.76 |
||
|
24078
|
24078
24011-3F200 Harness Assy-Egi9409--01 ~ ; 5HB.SR20DE |
24011-3F200 |
US $826.94 |
||
|
24078
|
24078
24011-3F205 Harness Assy-Egi9504--01 ~ ; 5HB.SR20DE |
24011-3F205 |
US $843.94 |
||
|
24078
|
24078
B4111-U7604 Spring-Harness, Egi9409--01 ~ ; 5HB.SR20DE; 4 ｷﾖｸ |
B4111-U7604 |
US $4.46 |
||
|
24078
|
24078
B4111-U7600 Spring-Harness, Egi9409--01 ~ ; 5HB.SR20DE; 2 ｷﾖｸ |
B4111-U7600 |
US $3.32 |
||
|
24080
|
24080
24080-70J15 Cable Assy-Battery Earth9409--01 ~ ; 5HB.SR20DE |
24080-70J15 |
US $109.44 |
||
|
24130NA
|
24130NA
24335-89901 Diode9409--01 ~ ; 5HB.SR20DE |
24335-89901 |
US $17.42 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link9409--01 ~ ; 5HB.SR20DE; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link9409--01 ~ ; 5HB.SR20DE; 30A |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link9409--01 ~ ; 5HB.SR20DE; 75A |
2437089920 |
from US $10.80 |
||
|
24370+A
|
24370+A
2437089905 Connector Assy-Fusible Link9409--01 ~ ; 5HB.SR20DE; 30A |
2437089905 |
from US $12.77 |
||
|
24370+B
|
24370+B
2437089920 Connector Assy-Fusible Link9409--01 ~ ; 5HB.SR20DE; 75A |
2437089920 |
from US $10.80 |
||
|
24381
|
24381
24381-50Y00 Housing-Fusible Link Holder9409--01 ~ ; 5HB.SR20DE |
24381-50Y00 |
US $37.01 |
||
|
24382R
|
24382R
24382-87J10 Cover-Fusible Link Holder9409--01 ~ ; 5HB.SR20DE |
24382-87J10 |
US $15.98 |
||
|
24382VA
|
24382VA
24382-41B10 Cover-Fusible Link Holder9409--01 ~ ; 5HB.SR20DE |
24382-41B10 |
US $5.62 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9409--01 ~ ; 5HB.SR20DE; 5 ﾘﾚ- |
2438351E00 |
from US $13.14 |
||
|
24383P
|
24383P
24383-51E01 HOUSING-RELAY BOX9409--01 ~ ; 5HB.SR20DE; 6 ﾘﾚ- |
24383-51E01 |
from US $13.39 |
||
|
24383PA
|
24383PA
24383-51E01 HOUSING-RELAY BOX9409--01 ~ ; 5HB.SR20DE; 6 ﾘﾚ- |
24383-51E01 |
from US $13.39 |
||
|
24388PB
|
24388PB
24388-64J00 Bracket-Relay Box9409--01 ~ ; 5HB.SR20DE |
24388-64J00 |
US $15.55 |
||
|
25233Q
|
25233Q
24382-3F000 Cover-Relay Box9409--01 ~ ; 5HB.SR20DE |
24382-3F000 |
US $9.36 |
||
|
25418M
|
25418M
24387-64J00 Bracket-Fusible Link Holder9409--01 ~ ; 5HB.SR20DE |
24387-64J00 |
US $12.38 |
