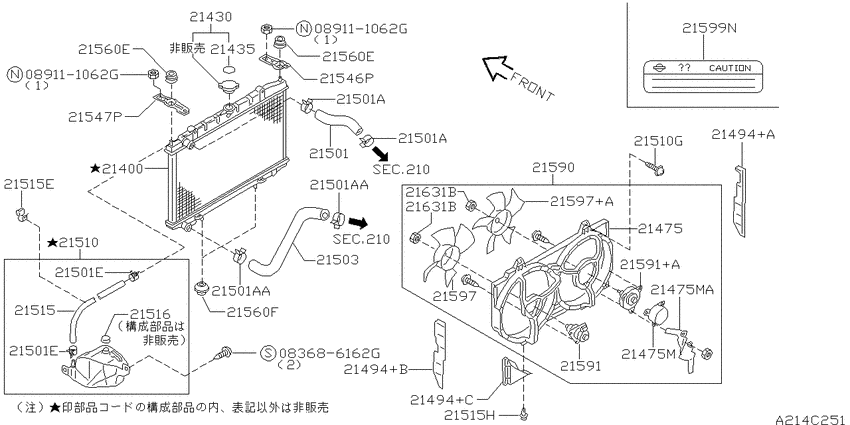

Radiator, shroud & fitting (1998-09-01 ~ ; $ラジエーター フィッティング パーツ; QG18DE.MT) Diagram Nissan PRIMERA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- MT
- grade
- CI
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
210
|
Water pump, cooling fan & thermostat
210
|
||||
|
21400
|
21400
21410-6J000 Radiator Assy9809--01 ~ 0006--01; QG18DE.MT |
21410-6J000 |
US $1,124.30 |
||
|
21400
|
21400
21410-6J007 Radiator Assy0006--01 ~ ; QG18DE.MT |
21410-6J007 |
US $1,124.30 |
||
|
21430
|
21430
2143001F02
Cap Assy-Radiator
9809--01 ~ ; QG18DE.MT |
2143001F02 |
— | ||
| replacement | |||||
|
21430
|
21430
21430-7999C Cap Assy-Radiator9809--01 ~ ; QG18DE.MT |
21430-7999C |
from US $10.18 |
||
|
21435
|
21435
21435-89960 Label-Caution, Radiator9809--01 ~ 9907--01; QG18DE.MT |
21435-89960 |
US $3.18 |
||
|
21435
|
21435
1407726E00 LABEL-CAUTION,AIR RELIEF9809--01 ~ ; QG18DE |
1407726E00 |
US $3.75 |
||
|
21475
|
21475
21483-2J200 Shroud Assy9809--01 ~ ; QG18DE.MT |
21483-2J200 |
US $200.16 |
||
|
21475
|
21475
21491-2J260 Cover-Radiator Shroud9809--01 ~ ; QG18DE.MT |
21491-2J260 |
US $40.75 |
||
|
21475
|
21475
21491-2J210 Cover-Radiator Shroud9809--01 ~ ; QG18DE.MT |
21491-2J210 |
US $34.27 |
||
|
21475M
|
21475M
21491-2J260 Cover-Radiator Shroud9809--01 ~ ; QG18DE.MT |
21491-2J260 |
US $40.75 |
||
|
21475M
|
21475M
21491-2J210 Cover-Radiator Shroud9809--01 ~ ; QG18DE.MT |
21491-2J210 |
US $34.27 |
||
|
21475MA
|
21475MA
21491-2J210 Cover-Radiator Shroud9809--01 ~ ; QG18DE.MT |
21491-2J210 |
US $34.27 |
||
|
21494+A
|
21494+A
21494-3J100 Plate-Air Guide9809--01 ~ ; QG18DE.MT |
21494-3J100 |
US $11.23 |
||
|
21494+B
|
21494+B
21494-3J110 New Genuine Part9809--01 ~ ; QG18DE.MT |
21494-3J110 |
US $11.23 |
||
|
21494+C
|
21494+C
21494-3J120 Plate-Air Guide9809--01 ~ ; QG18DE.MT |
21494-3J120 |
US $11.23 |
||
|
21501
|
21501
215016J000 Hose-Radiator, Upper9809--01 ~ ; QG18DE.MT |
215016J000 |
US $22.18 |
||
|
21501
|
21501
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501
|
21501
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501
|
21501
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501
|
21501
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501
|
21501
21750-15U01 Clamp-Hose9809--01 ~ ; QG18DE.MT |
21750-15U01 |
US $3.46 |
||
|
21501A
|
21501A
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501A
|
21501A
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501A
|
21501A
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501A
|
21501A
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501A
|
21501A
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501A
|
21501A
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501A
|
21501A
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501A
|
21501A
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501AA
|
21501AA
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501AA
|
21501AA
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501AA
|
21501AA
01558-00241 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
01558-00241 |
US $3.46 |
||
| replacement | |||||
|
21501AA
|
21501AA
0155800481 CLAMP-HOSE9809--01 ~ ; QG18DE.MT |
0155800481 |
US $3.46 |
||
|
21501E
|
21501E
21750-15U01 Clamp-Hose9809--01 ~ ; QG18DE.MT |
21750-15U01 |
US $3.46 |
||
|
21501E
|
21501E
21750-15U01 Clamp-Hose9809--01 ~ ; QG18DE.MT |
21750-15U01 |
US $3.46 |
||
|
21503
|
21503
21503-6J000 Hose-Radiator, Lower9809--01 ~ ; QG18DE.MT |
21503-6J000 |
US $54.14 |
||
|
21510
|
21510
21710-3J100 Tank Assy-Reserve9809--01 ~ ; QG18DE.MT |
21710-3J100 |
US $102.58 |
||
|
21510
|
21510
0145600621 SCREW9809--01 ~ ; QG18DE.MT |
0145600621 |
US $1.61 |
||
|
21510G
|
21510G
0145600621 SCREW9809--01 ~ ; QG18DE.MT |
0145600621 |
US $1.61 |
||
|
21515
|
21515
21741-3J100 Hose-Reserve Tank9809--01 ~ ; QG18DE.MT |
21741-3J100 |
US $17.71 |
||
|
21515
|
21515
01552-00081 CLIP9809--01 ~ ; QG18DE.MT |
01552-00081 |
US $2.68 |
||
|
21515
|
21515
0155309321 CLIP9809--01 ~ ; QG18DE.MT |
0155309321 |
from US $0.89 |
||
|
21515E
|
21515E
01552-00081 CLIP9809--01 ~ ; QG18DE.MT |
01552-00081 |
US $2.68 |
||
|
21515H
|
21515H
0155309321 CLIP9809--01 ~ ; QG18DE.MT |
0155309321 |
from US $0.89 |
||
|
21516
|
21516
2171250M01 Cap-Reservoir Tank9809--01 ~ ; QG18DE.MT |
2171250M01 |
from US $5.35 |
||
|
21546P
|
21546P
215462J000 Bracket Assy-Radiator Mounting9809--01 ~ ; QG18DE.MT |
215462J000 |
US $6.91 |
||
|
21547P
|
21547P
21547-6J000 Bracket Assy-Radiator Mounting9809--01 ~ ; QG18DE.MT |
21547-6J000 |
US $6.91 |
||
|
21560E
|
21560E
2150651E00 MOUNTING RUBBER-RADIATOR,UPPER9809--01 ~ ; QG18DE.MT |
2150651E00 |
from US $2.63 |
||
|
21560E
|
21560E
2150651E00 MOUNTING RUBBER-RADIATOR,UPPER9809--01 ~ ; QG18DE.MT |
2150651E00 |
from US $2.63 |
||
|
21560F
|
21560F
2150758Y00 Mounting Rubber-Radiator, Lower9809--01 ~ ; QG18DE.MT |
2150758Y00 |
US $13.54 |
||
|
21590
|
21590
214816J000 Motor & Fan Assy-With Shroud9809--01 ~ ; QG18DE.MT |
214816J000 |
US $732.07 |
||
|
21591
|
21591
214875L700
Motor Assy-Fan
9809--01 ~ ; QG18DE.MT |
214875L700 |
— | ||
| replacement | |||||
|
21591
|
21591
21487-C990A Motor Assy-Fan9809--01 ~ ; QG18DE.MT |
21487-C990A |
US $255.06 |
||
|
21591
|
21591
214875L700
Motor Assy-Fan
9809--01 ~ ; QG18DE.MT |
214875L700 |
— | ||
| replacement | |||||
|
21591
|
21591
21487-C990A Motor Assy-Fan9809--01 ~ ; QG18DE.MT |
21487-C990A |
US $255.06 |
||
|
21591+A
|
21591+A
214875L700
Motor Assy-Fan
9809--01 ~ ; QG18DE.MT |
214875L700 |
— | ||
| replacement | |||||
|
21591+A
|
21591+A
21487-C990A Motor Assy-Fan9809--01 ~ ; QG18DE.MT |
21487-C990A |
US $255.06 |
||
|
21597
|
21597
214861L000 Fan-Motor9809--01 ~ ; QG18DE.MT |
214861L000 |
from US $47.71 |
||
|
21597
|
21597
214861L010 Fan-Motor9809--01 ~ ; QG18DE.MT |
214861L010 |
from US $47.99 |
||
|
21597+A
|
21597+A
214861L010 Fan-Motor9809--01 ~ ; QG18DE.MT |
214861L010 |
from US $47.99 |
||
|
21599N
|
21599N
2159989914 Label-Caution, Motor Fan9809--01 ~ ; QG18DE.MT |
2159989914 |
US $3.88 |
||
|
21631B
|
21631B
925940M300 Nut9809--01 ~ ; QG18DE.MT |
925940M300 |
US $1.58 |
||
|
21631B
|
21631B
925940M300 Nut9809--01 ~ ; QG18DE.MT |
925940M300 |
US $1.58 |
||
