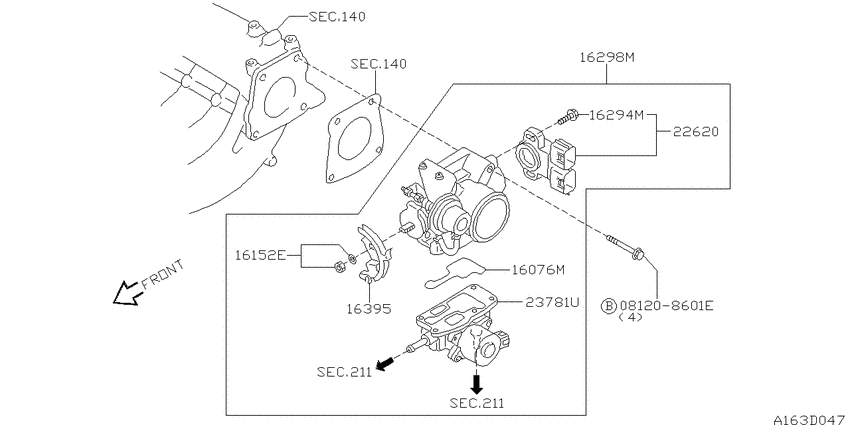

Throttle chamber (1998-09-01 ~ 2001-04-01; QG18DE) Diagram Nissan PRIMERA
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- transmission
- AT.F4
- grade
- CI
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208601E
|
081208601E
08120-8601E
Bolt-hexagon
|
08120-8601E |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16076M
|
16076M
16618-4M500 Seal-O Ring9809--01 ~ ; QG18DE |
16618-4M500 |
US $3.74 |
||
|
16076M
|
16076M
16618-2Y010 Seal-O Ring0104--01 ~ ; QG18DE |
16618-2Y010 |
from US $2.45 |
||
|
16152E
|
16152E
16152-87Y10 Washer9809--01 ~ 0104--01; QG18DE |
16152-87Y10 |
US $4.32 |
||
|
16152E
|
16152E
16152-97E15 WASHER0104--01 ~ ; QG18DE |
16152-97E15 |
US $0.86 |
||
|
16294M
|
16294M
16379-4M500 Screw-Adjusting9809--01 ~ 0104--01; QG18DE |
16379-4M500 |
US $7.92 |
||
|
16298M
|
16298M
16119-4M500 Chamber Assy-Throttle9809--01 ~ 9910--01; QG18DE |
16119-4M500 |
US $664.10 |
||
|
16298M
|
16298M
16119-WA600 Chamber Assy-Throttle9910--01 ~ 0104--01; QG18DE |
16119-WA600 |
US $664.10 |
||
|
16298M
|
16298M
16119-WA610 Chamber Assy-Throttle0104--01 ~ ; QG18DE |
16119-WA610 |
US $724.99 |
||
|
16395
|
16395
16134-4M400 Lever-Throttle9809--01 ~ 0104--01; QG18DE |
16134-4M400 |
US $19.73 |
||
|
16395
|
16395
16134-WD721 Lever-Throttle0104--01 ~ ; QG18DE |
16134-WD721 |
US $17.86 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
22620
|
22620
22620-4M500
Throttle Position Switch
0104--01 ~ ; QG18DE |
22620-4M500 |
— | ||
| replacements | |||||
|
22620
|
22620
22620-4M501
Throttle Position Switch
0104--01 ~ ; QG18DE |
22620-4M501 |
— | ||
| replacement | |||||
|
22620
|
22620
226204M50A Throttle Position Switch0104--01 ~ ; QG18DE |
226204M50A |
from US $85.54 |
||
|
22620
|
22620
226204M50A Throttle Position Switch0104--01 ~ ; QG18DE |
226204M50A |
from US $85.54 |
||
|
22620
|
22620
22620-4M501
Throttle Position Switch
9809--01 ~ 0104--01; QG18DE |
22620-4M501 |
— | ||
| replacement | |||||
|
22620
|
22620
226204M50A Throttle Position Switch9809--01 ~ 0104--01; QG18DE |
226204M50A |
from US $85.54 |
||
|
23781U
|
23781U
23781-4M421 Iacv-Aac Valve0104--01 ~ ; QG18DE |
23781-4M421 |
US $236.16 |
||
|
23781U
|
23781U
23781-4M500 Iacv-Aac Valve9809--01 ~ 0104--01; QG18DE |
23781-4M500 |
US $279.36 |
||
|
23781U
|
23781U
23781-4M500 Iacv-Aac Valve0104--01 ~ ; QG18DE |
23781-4M500 |
US $279.36 |
||
