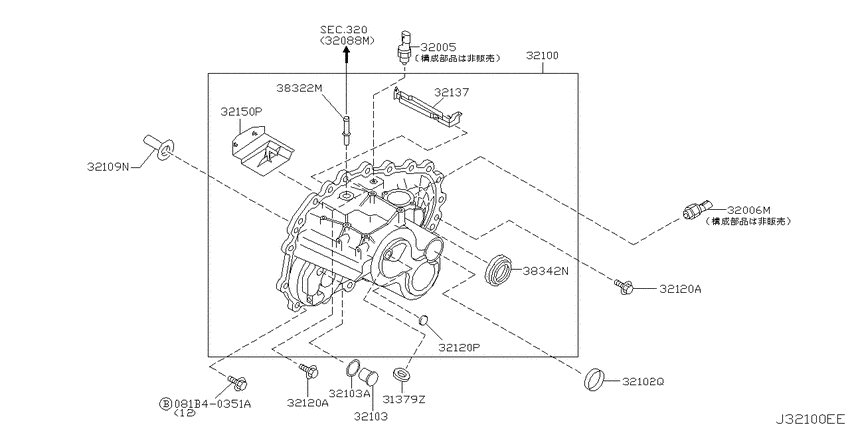

Transmission case & clutch release (2001-08-01 ~ 2003-07-01; トランスミッションケース; MT) Diagram Nissan PRIMERA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- SR20VE
- drive
- 2WD
- transmission
- MT
- grade
- 20V
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B40351A
|
081B40351A
081B4-0351A
Bolt-hexagon
|
081B4-0351A |
— | ||
|
31379Z
|
31379Z
31379-01X01 Magnet0108--01 ~ 0307--01; MT |
31379-01X01 |
US $7.20 |
||
|
32005
|
32005
32005-6J000 Switch Assy-Reverse Lamp0108--01 ~ 0212--01; MT |
32005-6J000 |
US $33.55 |
||
|
32005
|
32005
32005-6J001 Switch Assy-Reverse Lamp0212--01 ~ 0307--01; MT |
32005-6J001 |
US $33.55 |
||
| replacement | |||||
|
32005
|
32005
320056J00A Switch Assy-Reverse Lamp0212--01 ~ 0307--01; MT |
320056J00A |
from US $21.33 |
||
|
32006M
|
32006M
32006-6J000 Switch Assy-Neutral Position0108--01 ~ 0307--01; MT |
32006-6J000 |
US $21.17 |
||
|
32100
|
32100
32100-8H800
Case Assy-Transmission
0108--01 ~ 0307--01; MT |
32100-8H800 |
— | ||
|
32102Q
|
32102Q
32102-8H500 Plug-Bore0108--01 ~ 0307--01; MT |
32102-8H500 |
US $9.30 |
||
|
32103
|
32103
32103-4N210 Plug-Filler0108--01 ~ 0307--01; MT |
32103-4N210 |
US $7.06 |
||
|
32103
|
32103
110264N200 Gasket-Plug0108--01 ~ 0307--01; MT |
110264N200 |
from US $2.72 |
||
|
32103A
|
32103A
110264N200 Gasket-Plug0108--01 ~ 0307--01; MT |
110264N200 |
from US $2.72 |
||
|
32109N
|
32109N
32109-8H510 Channel-Oil0108--01 ~ 0307--01; MT |
32109-8H510 |
US $2.45 |
||
|
32120A
|
32120A
31377-8H510 Bolt0108--01 ~ 0205--01; MT |
31377-8H510 |
US $2.45 |
||
|
32120A
|
32120A
31377-8H510 Bolt0108--01 ~ 0205--01; MT |
31377-8H510 |
US $2.45 |
||
|
32120P
|
32120P
31307-6J000 Plug0108--01 ~ 0307--01; MT |
31307-6J000 |
US $2.88 |
||
| replacement | |||||
|
32120P
|
32120P
31307-6J00A Plug0108--01 ~ 0307--01; MT |
31307-6J00A |
US $2.45 |
||
|
32137
|
32137
32107-8H500
Gutter-Oil, Adapter
0108--01 ~ 0307--01; MT |
32107-8H500 |
— | ||
| replacement | |||||
|
32137
|
32137
32107-8H51A Gutter-Oil, Adapter0108--01 ~ 0307--01; MT |
32107-8H51A |
US $4.85 |
||
|
32150P
|
32150P
32150-8H500 Plate-Baffle0108--01 ~ 0307--01; MT |
32150-8H500 |
US $4.18 |
||
|
38322M
|
38322M
38322-6M000 Breather-Transmission Case0108--01 ~ 0307--01; MT |
38322-6M000 |
US $8.06 |
||
|
38342N
|
38342N
3834203E00 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE0108--01 ~ 0212--01; MT |
3834203E00 |
US $10.04 |
||
|
38342N
|
38342N
383428H500 Seal-Oil, Differential Transmission Case0212--01 ~ 0307--01; MT |
383428H500 |
from US $6.69 |
||
