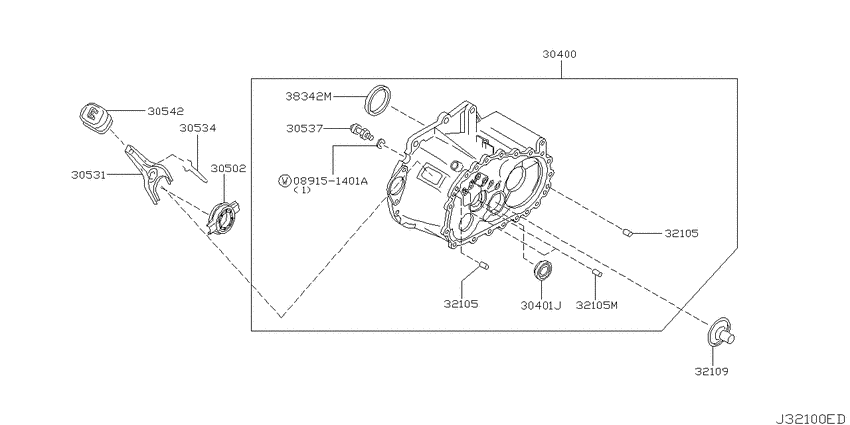

Transmission case & clutch release (2001-08-01 ~ 2003-07-01; クラッチハウジング; MT) Diagram Nissan PRIMERA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- SR20VE
- drive
- 2WD
- transmission
- MT
- grade
- 20V
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30400
|
30400
30400-8H811 Housing Assy-Clutch0108--01 ~ 0307--01; MT |
30400-8H811 |
US $897.74 |
||
|
30401J
|
30401J
321138H500 Seal-Oil, Input0108--01 ~ 0307--01; MT |
321138H500 |
from US $2.74 |
||
|
30502
|
30502
305021W718 Bearing-Clutch Release0108--01 ~ 0307--01; MT |
305021W718 |
from US $31.62 |
||
|
30531
|
30531
305319E000 LEVER-WITHDRAWAL,CLUTCH0108--01 ~ 0307--01; MT |
305319E000 |
from US $48.67 |
||
|
30534
|
30534
3053403E00 SPRING-RETAINER,WITHDRAWAL LEVER0108--01 ~ 0307--01; MT |
3053403E00 |
from US $1.79 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever0108--01 ~ 0307--01; MT |
305370H601 |
from US $3.64 |
||
|
30542
|
30542
305428H500 Cover-Dust, Withdrawal Lever0108--01 ~ 0307--01; MT |
305428H500 |
from US $15.12 |
||
|
32105
|
32105
32105-C6900 Pin0108--01 ~ 0307--01; MT |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32106-M8000 Pin-Knock, Clutch Housing0108--01 ~ 0307--01; MT |
32106-M8000 |
US $1.67 |
||
|
32105
|
32105
32105-C6900 Pin0108--01 ~ 0307--01; MT |
32105-C6900 |
US $4.18 |
||
|
32105
|
32105
32106-M8000 Pin-Knock, Clutch Housing0108--01 ~ 0307--01; MT |
32106-M8000 |
US $1.67 |
||
|
32105M
|
32105M
32106-M8000 Pin-Knock, Clutch Housing0108--01 ~ 0307--01; MT |
32106-M8000 |
US $1.67 |
||
|
32109
|
32109
32109-8H500 Channel-Oil, Main Shaft Front0108--01 ~ 0307--01; MT |
32109-8H500 |
US $1.67 |
||
|
32109
|
32109
32109-8H510 Channel-Oil0108--01 ~ 0307--01; MT |
32109-8H510 |
US $2.45 |
||
|
38342M
|
38342M
38342-03E01
SEAL-OIL,DIFFERENTIAL CLUTCH HOUSING
0108--01 ~ 0307--01; MT |
38342-03E01 |
— | ||
| replacement | |||||
|
38342M
|
38342M
3834281X01 Seal-Oil, Differential Converter Housing0108--01 ~ 0307--01; MT |
3834281X01 |
from US $6.85 |
||
