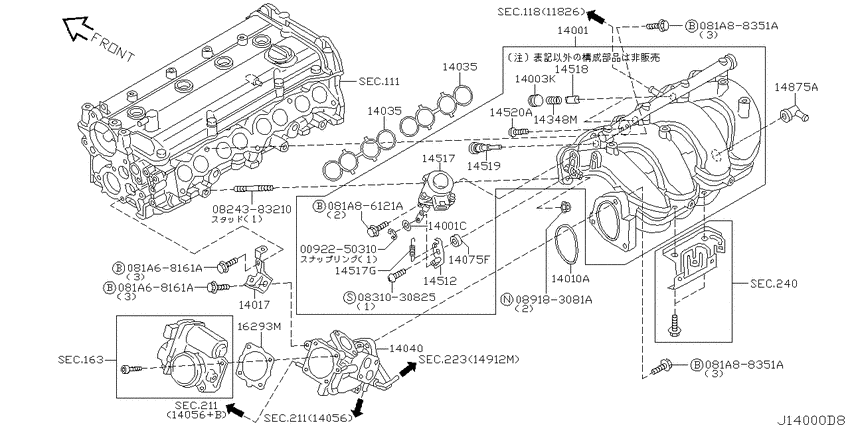

Manifold (2003-07-01 ~ ; インテーク パーツ; QR25DD) Diagram Nissan PRIMERA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- QR25DD
- drive
- 2WD
- transmission
- MCVT
- grade
- 25X
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250310
|
0092250310
00922-50310
RINGSNAP
|
00922-50310 |
— | ||
|
081A68161A
|
081A68161A
081A68161A
BOLTFLANGE
|
081A68161A |
— | ||
|
081A68161A
|
081A68161A
081A68161A
BOLTFLANGE
|
081A68161A |
— | ||
|
081A86121A
|
081A86121A
081A8-6121A BOLT |
081A8-6121A |
US $1.37 |
||
|
081A88351A
|
081A88351A
081A8-8351A
BOLT
|
081A8-8351A |
— | ||
|
081A88351A
|
081A88351A
081A8-8351A
BOLT
|
081A8-8351A |
— | ||
|
0824383210
|
0824383210
08243-83210
STUD
|
08243-83210 |
— | ||
|
0831030825
|
0831030825
0831030825
Screw-machine
|
0831030825 |
— | ||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
118
|
Crankcase ventilation
118
|
||||
|
14001
|
14001
140016N200 Manifold Assy-Intake0307--01 ~ ; QR25DD |
140016N200 |
US $1,360.78 |
||
|
14001
|
14001
16084-22000 Washer-Plain0307--01 ~ ; QR25DD |
16084-22000 |
US $2.88 |
||
| replacement | |||||
|
14001
|
14001
16084-2200A Washer-Plain0307--01 ~ ; QR25DD |
16084-2200A |
US $2.88 |
||
|
14001C
|
14001C
16084-22000 Washer-Plain0307--01 ~ ; QR25DD |
16084-22000 |
US $2.88 |
||
| replacement | |||||
|
14001C
|
14001C
16084-2200A Washer-Plain0307--01 ~ ; QR25DD |
16084-2200A |
US $2.88 |
||
|
14003K
|
14003K
14052-6N200 Plug-Blind0307--01 ~ ; QR25DD |
14052-6N200 |
US $8.78 |
||
|
14010A
|
14010A
140336N201 Gasket-Manifold, Upper0307--01 ~ ; QR25DD |
140336N201 |
US $5.18 |
||
|
14017
|
14017
14017-6N200 Support-Manifold0307--01 ~ ; QR25DD |
14017-6N200 |
US $50.40 |
||
|
14035
|
14035
140356N205 Gasket-Manifold0307--01 ~ ; QR25DD |
140356N205 |
US $23.62 |
||
|
14035
|
14035
140356N205 Gasket-Manifold0307--01 ~ ; QR25DD |
140356N205 |
US $23.62 |
||
|
14040
|
14040
14050-AW500 Adapter-Intake0307--01 ~ ; QR25DD |
14050-AW500 |
US $262.08 |
||
|
14075F
|
14075F
1451540F00 Seal-O Ring0307--01 ~ ; QR25DD |
1451540F00 |
from US $5.47 |
||
|
14348M
|
14348M
14348-38U00 Spring-Stopper Power Valve0307--01 ~ ; QR25DD |
14348-38U00 |
US $3.60 |
||
|
14512
|
14512
14512-6N220 Shaft Assy-Power Valve0307--01 ~ ; QR25DD |
14512-6N220 |
US $16.13 |
||
|
14517
|
14517
14517-6N200 Actuator-Power Valve0307--01 ~ ; QR25DD |
14517-6N200 |
US $297.36 |
||
|
14517
|
14517
14517-6N220 Spring-Motor0307--01 ~ ; QR25DD |
14517-6N220 |
US $7.92 |
||
|
14517G
|
14517G
14517-6N220 Spring-Motor0307--01 ~ ; QR25DD |
14517-6N220 |
US $7.92 |
||
|
14518
|
14518
14518-38U00 Stopper-Power Valve0307--01 ~ ; QR25DD |
14518-38U00 |
US $5.76 |
||
|
14519
|
14519
14519-6N200 Stopper-Thrust0307--01 ~ ; QR25DD |
14519-6N200 |
US $8.93 |
||
|
14520A
|
14520A
14511-8J010 Screw-Protector0307--01 ~ ; QR25DD |
14511-8J010 |
US $2.16 |
||
|
14875A
|
14875A
14875-6N205 Connector-Vacuum Hose0307--01 ~ ; QR25DD |
14875-6N205 |
US $10.37 |
||
|
16293M
|
16293M
161756N200 Gasket-Throttle Chamber0307--01 ~ ; QR25DD |
161756N200 |
US $5.18 |
||
|
163
|
Throttle chamber
163
|
||||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
|
240
|
Wiring
240
|
||||
