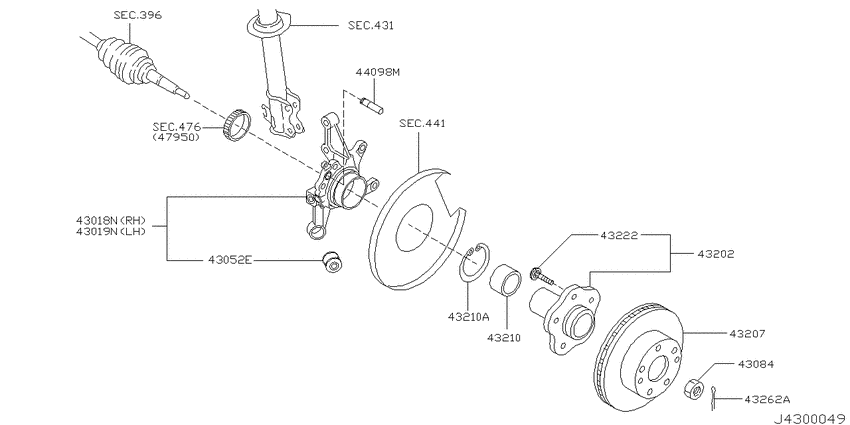

Rear axle (2002-05-01 ~ 2003-07-01; QR20DE.AT) Diagram Nissan PRIMERA
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- 20G
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
396
|
Rear drive shaft
396
|
||||
|
396
|
Rear drive shaft
396
|
||||
|
43018N
|
43018N
430188H300 Housing Assy-Rear Axle, Rh0101--01 ~ 0205--01; QR20DE.AT |
430188H300 |
US $491.35 |
||
|
43019N
|
43019N
43019-8H300 Housing Assy-Rear Axle, Lh0101--01 ~ 0205--01; QR20DE.AT |
43019-8H300 |
US $491.35 |
||
|
43052E
|
43052E
55152-51E00 BUSH-PARALLEL LINK,FRONT0108--01 ~ 0205--01; S.QR20DE.AT |
55152-51E00 |
from US $7.76 |
||
|
43084
|
43084
402622Y000 Nut-Lock0101--01 ~ 0205--01; QR20DE.AT |
402622Y000 |
from US $3.13 |
||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
431
|
Rear suspension
431
|
||||
|
43202
|
43202
43202AG000 Hub Assy-Rear0101--01 ~ 0205--01; QR20DE.AT |
43202AG000 |
from US $223.94 |
||
|
43207
|
43207
43206-8H304 Rotor-Disc Brake, Rear0108--01 ~ 0109--01; S.QR20DE.AT |
43206-8H304 |
US $165.60 |
||
|
43207
|
43207
43206-8H701 Rotor-Disc Brake, Rear0109--01 ~ 0205--01; QR20DE.AT |
43206-8H701 |
US $138.10 |
||
| replacement | |||||
|
43207
|
43207
432068H305 Rotor-Disc Brake, Rear0109--01 ~ 0205--01; QR20DE.AT |
432068H305 |
from US $127.21 |
||
|
43210
|
43210
43210AG000 Bearing-Rear Axle, Inner0101--01 ~ 0205--01; QR20DE.AT |
43210AG000 |
from US $58.96 |
||
|
43210
|
43210
40214AG100 Ring-Snap0101--01 ~ 0205--01; QR20DE.AT |
40214AG100 |
from US $3.95 |
||
|
43210A
|
43210A
40214AG100 Ring-Snap0101--01 ~ 0205--01; QR20DE.AT |
40214AG100 |
from US $3.95 |
||
|
43222
|
43222
4322241B00 Bolt-Hub0209--01 ~ 0307--01; QR20DE.AT |
4322241B00 |
from US $1.42 |
||
|
43222
|
43222
43222-5V200 Bolt-Hub0101--01 ~ 0205--01; QR20DE.AT |
43222-5V200 |
US $4.54 |
||
| replacement | |||||
|
43222
|
43222
4322241B00 Bolt-Hub0101--01 ~ 0205--01; QR20DE.AT |
4322241B00 |
from US $1.42 |
||
|
43262A
|
43262A
400730L700 Pin-Cotter0101--01 ~ 0205--01; QR20DE.AT |
400730L700 |
from US $0.52 |
||
|
44098M
|
44098M
410988J000 Plug-Inspection Hole0101--01 ~ 0205--01; QR20DE.AT |
410988J000 |
from US $1.67 |
||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
